Liquid Level Sensor Designed for Work in Acids

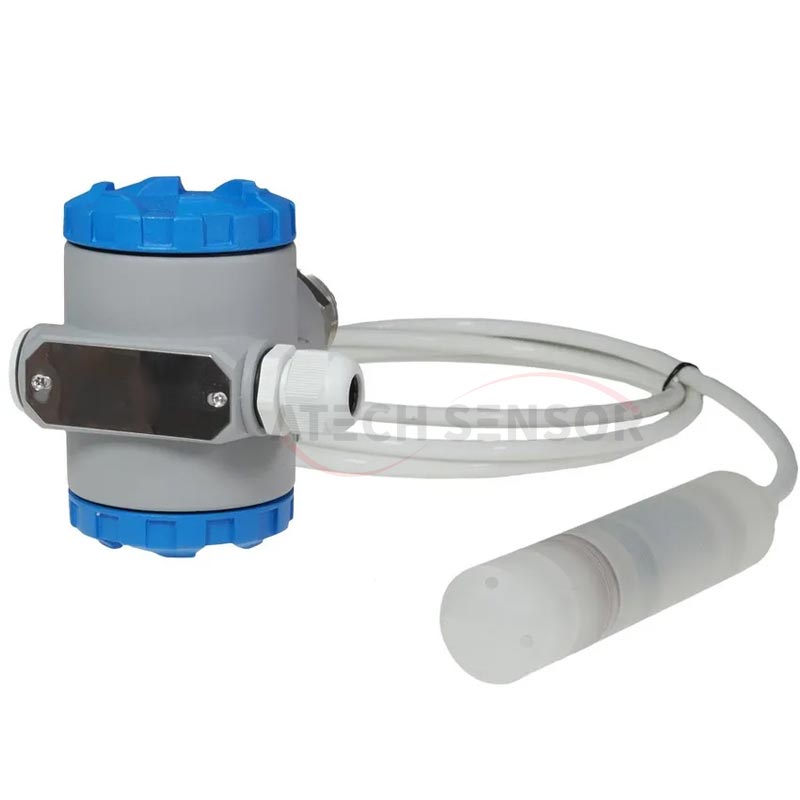

A submersible pressure liquid level sensor. The pressure exerted by the water on the sensor is transmitted in the form of a voltage signal (0 ~ 10 V). Hydrostatic pressure is directly proportional to immersion. The sensor is designed for use in acids (sulfuric acid, hydrofluoric acid, sodium hydroxide, hydrogen peroxide and other highly corrosive liquids, chemical and galvanic effluents). The sensor's capillary is made of F4 tetrafluoro. The signal of the measured liquid pressure is transmitted through a tube to the sensor, which is located in an external, hermetic housing.



● Its mechanical structure is highly resistant to overload and corrosive media

● High-precision, long-term stable ceramic capacitors and imported diffused silicon measuring cells

● Sealed electronic modules and dual-filter pressure compensation systems can resist the impact of climate changes on site

● Electronic modules can output 4...20mA signals and also have overvoltage protection modules

● Selecting an integrated temperature sensor can measure both level and temperature at the same time





Power supply	12 - 24 VDC
Output	0-10 V
Range	0 ~ 1m
Accuracy of measurement	+/- 0,5%
Material of execution	F4 Tetrafluoro
Measurement	Acids
Degree of Protection	IP 68
Wire lengh	3 m
Working Conditions	0 ~ 120℃
