Products Description
The gas sensor uses a three-electrode electrochemical sensor and a high-performance microprocessor, with a built-in temperature sensor for temperature compensation. It can accurately measure the gas concentration in the environment, perfectly combining the electrochemical sensor and the transmission circuit to meet customers' gas concentration measurement needs.
The dust sensor uses the principle of laser scattering to detect dust particles in the air. The minimum particle size that can be detected is 1.0 micron, with good consistency and stability.
Product Features
● Shutter box shell, avoid interference from rain and snow accumulation, avoid natural wind blocking
● PM2.5, PM10, CO, SO2, NO2, O3 six elements integrated
● Use advanced sensing technology, real-time measurement
● Strong anti-interference ability, with automatic reset function to ensure stable operation of the system
● High integration, no moving parts, zero wear
● Maintenance-free, no need for on-site calibration
● ASA engineering plastics are used for outdoor applications without discoloration all year round
● The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading
Product Specification
| PM10 | Measuring range: 0~2000μg/m3 |
| PM2.5 | Measuring range: 0~1000ug/m3 |
| CO | Measuring range: 0~10ppm; Resolution: 0.01ppm |
| O3 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| NO2 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| SO2 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| Temperature | Measuring range: -20~60℃, Resolution: 0.1℃ |
| Humidity | Measuring range 0-100%RH, Resolution 0.1%RH |
| Work Environment | Temperature: -30~60℃ Humidity: 0~95%RH |

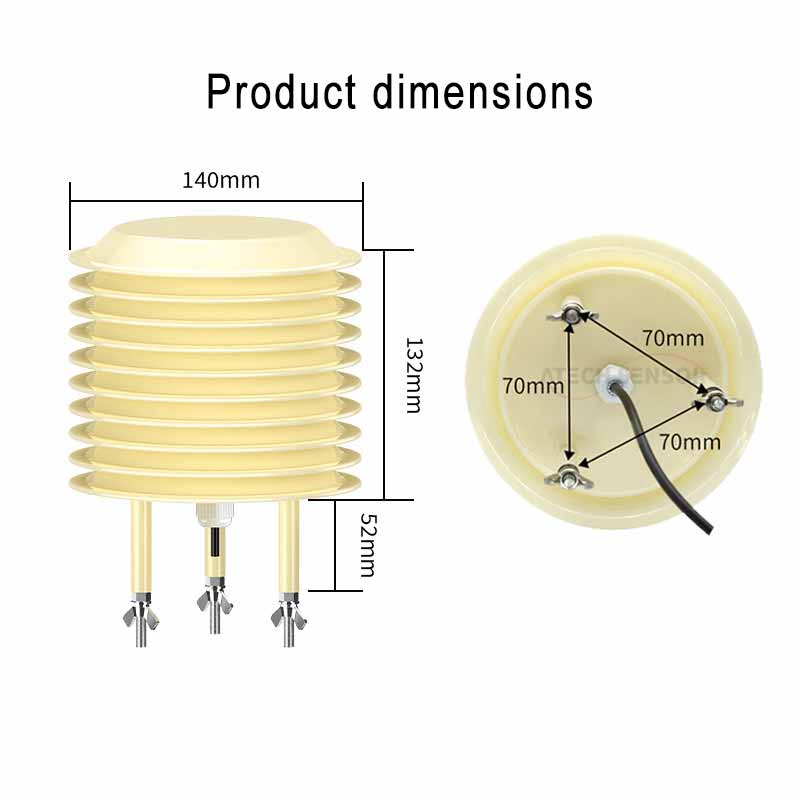

Product Dimensions
Product Features
● Shutter box shell, avoid interference from rain and snow accumulation, avoid natural wind blocking
● PM2.5, PM10, CO, SO2, NO2, O3 six elements integrated
● Use advanced sensing technology, real-time measurement
● Strong anti-interference ability, with automatic reset function to ensure stable operation of the system
● High integration, no moving parts, zero wear
● Maintenance-free, no need for on-site calibration
● ASA engineering plastics are used for outdoor applications without discoloration all year round
● The product design output signal is standardly equipped with RS485 communication interface (MODBUS protocol); 232, USB, Ethernet interface are optional, supporting real-time data reading
Product Dimensions
Product Specification
| PM10 | Measuring range: 0~2000μg/m3 |
| PM2.5 | Measuring range: 0~1000ug/m3 |
| CO | Measuring range: 0~10ppm; Resolution: 0.01ppm |
| O3 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| NO2 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| SO2 | Measuring range: 0~5ppm; Resolution: 0.01ppm |
| Temperature | Measuring range: -20~60℃, Resolution: 0.1℃ |
| Humidity | Measuring range 0-100%RH, Resolution 0.1%RH |
| Work Environment | Temperature: -30~60℃ Humidity: 0~95%RH |
