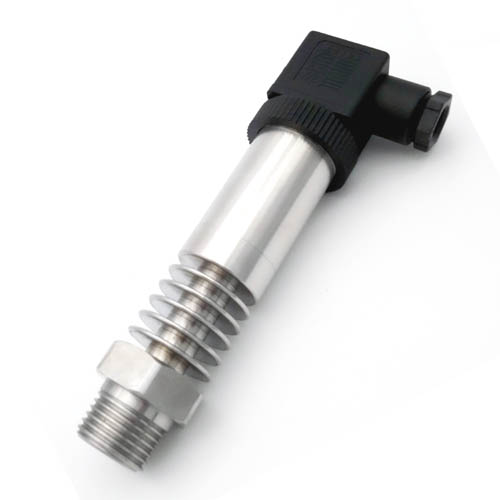

Products Description
Applications
● Construction machinery
● Automobile engine
● High temperature environment
● Industrial boiler pressure test
● Gas storage device
● Hydraulic pressure test
|
Product Features
● -50 °c~150°c Operating temperature
● Sputtering film pressure cell
● Fully weld
● CE certificate
● Intrinsic safety, explosive-proof
● High accuracy
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~1...2000bar |
overload pressure | 200%FS |
output signal | 4~20mA, 0~20mA, 0~10mA ,0~5V, 0~10V, 1~5V |
accuracy | 0.1%FS, 0.25%FS, 0.5%FS |
load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
long term stability | 0.25%FS/year |
supply voltage | 12~30V |
compensated temperature range | -20~120°c |
operating temperature range | -50~+150°c (typical), -50~+230°c |
storage temperature range | -50~+170°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100MΩ@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
Elect strength | 500V@60 second |
material of housing | 1Cr18Ni9Ti |
weight | 180g |

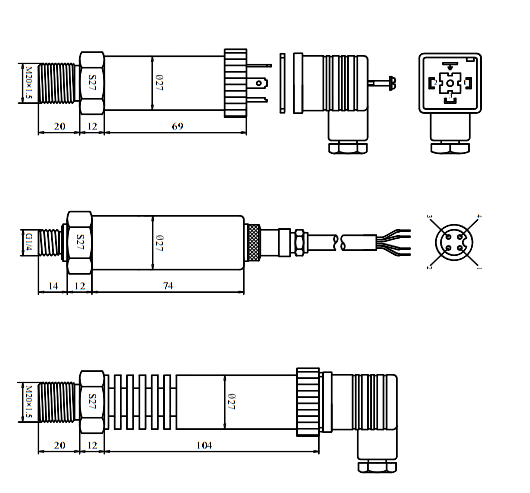

Product Dimensions
Product Features
● -50 °c~150°c Operating temperature
● Sputtering film pressure cell
● Fully weld
● CE certificate
● Intrinsic safety, explosive-proof
● High accuracy
Product Dimensions
Product Specification
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~1...2000bar |
overload pressure | 200%FS |
output signal | 4~20mA, 0~20mA, 0~10mA ,0~5V, 0~10V, 1~5V |
accuracy | 0.1%FS, 0.25%FS, 0.5%FS |
load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
long term stability | 0.25%FS/year |
supply voltage | 12~30V |
compensated temperature range | -20~120°c |
operating temperature range | -50~+150°c (typical), -50~+230°c |
storage temperature range | -50~+170°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100MΩ@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
Elect strength | 500V@60 second |
material of housing | 1Cr18Ni9Ti |
weight | 180g |
