Products Description
Feature
● Easy to install
● Imported silicon sensor chip employed
● Perfect long term stability
● Zero point and full range can be adjusted
● Have short-circuit protection
● Have reverse Polarity Protection
Applications
● Industrial Process testing and control
● Level measurement and control
● Available to Oxygen, CO2, Nitrogen,gas steam
● Pipeline pressure testing
Description
Based on piezo-resistive silicon technology, PT401 differential pressure transmitter uses silicon differential pressure sensors with stainless steel isolated diaphragm as measuring elements. Made of 316L stainless steel and designed of rigid and robust construction, PT401 differential pressure transmitter has a feature of that zero point and full range can be adjusted. It is suitable for application in harsh environment and measurement with corrosive pressure media.
This product has widely been used for measurement of differential pressure of pipeline fluids in petroleum industry, chemical industry, electric power hydrology etc.
Speifications
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~±5kPa ……±5000kPa |
overload pressure | 150%FS |
Pipe hydrostatic pressure | 3 ,5 , 10 times of Full pressure , 20Mpa |
output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
accuracy | 0.5%FS (standard) |
load resistance | RL = (U-10)/0.02(ohm) (4~20mA current output) |
long term stability | <0.25%FS/year |
supply voltage | 10~30Vdc, 8~36Vdc, 11~30Vdc |
compensated temperature range | -10~70°c |
operating temperature range | -40~+85°c |
storage temperature range | -10~+70°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100M(ohm)@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
material of pressure membrane | 316L |
material of housing | 1Cr18Ni9Ti |
Electromagnetic compatibility | Electromagnetic radiation: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2; |
Lightning proof A | Air-conduction pressure : 8000V, Shell & cable conduction pressure: 4000V |
Weight | 200g |
IP grade | IP 65, IP 67, IP68 |
Product Features
Product Specification

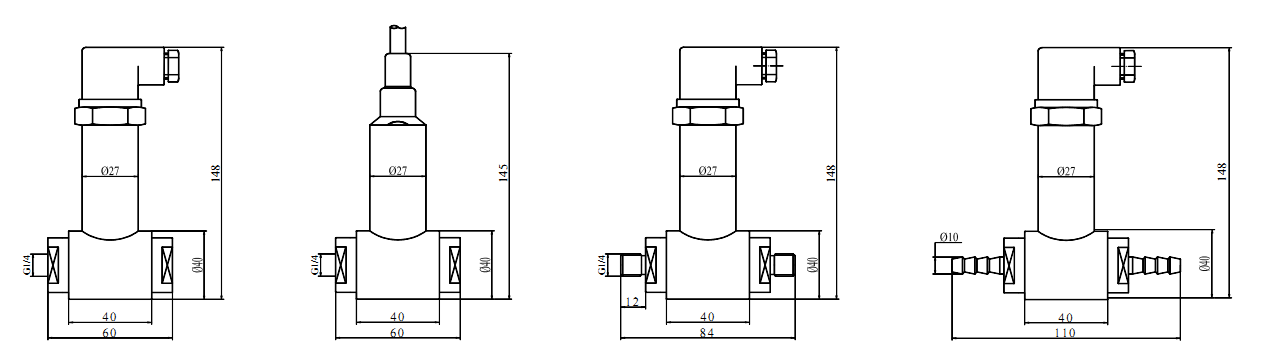

Product Dimensions
