Products Description
Feature
● Ceramic sensor cell
● PTFE material cable and housing
● Can test strong corrosive liquid
● Anti-electromagnetic interference
● CE certificate
Applications
● Strong corrosive liquids.
● Chemical experiment
● Liquid measuring for petroleum ,metallurgy
● Flammable medium class
● Tank level monitoring
● Sea water level measurement and control
Description

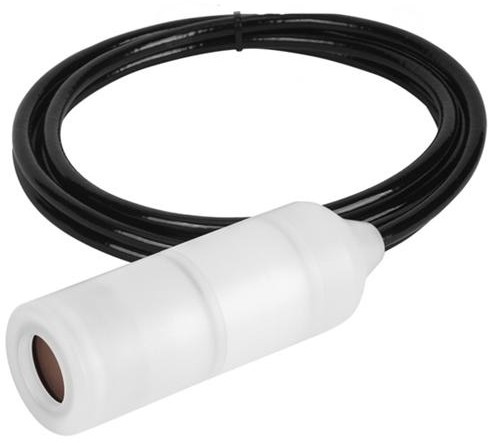

PL316 level sensor uses ceramic capacitor sensor cell as the sensitive element, PTFE material cable and housing ,it can test strong corrosive liquid such as petroleum ,metallurgy, Flammable medium.ect.
After long-term aging time, PL316 Level sensor has stable and reliable performance, It can adapt to the harsh environment outdoors.
Specifications
pressure medium | Strong corrosive liquids |
pressure ranges | 0~1 m H2O...200 m H2O |
overload pressure | 150%FS |
output signal | 4~20mA, 0.4 ~4.5V, 0~10V, 4~20mA+RS485, 4~20mA+HART,0.5-2.5V |
accuracy | 0.25%FS (standard) |
load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), ＞20KΩ (voltage output) |
long term stability | 0.1%FS/year |
supply voltage | 24VDC ,12VDC,3.3V |
compensated temperature range | -10~70°c |
operating temperature range | -20~+85°c |
storage temperature range | -40~+125°c |
temperature coefficient of zero | 0.01%FS (Max) |
temperature coefficient of span | 0.01%FS (Max) |
insulation resistance | R=(U-12.5)/0.02- RD |
Pressure connection | throw-in type |
Protection grade | IP68 |
material of wetted part and housing | PTFE |
material of pressure membrane | ceramic capacitor sensor cell |
Response time | 1ms |
Product Features
Product Specification

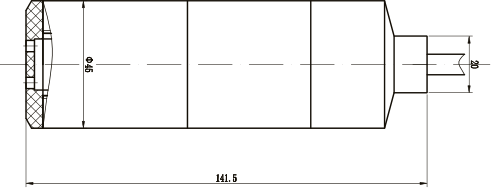

Product Dimensions
