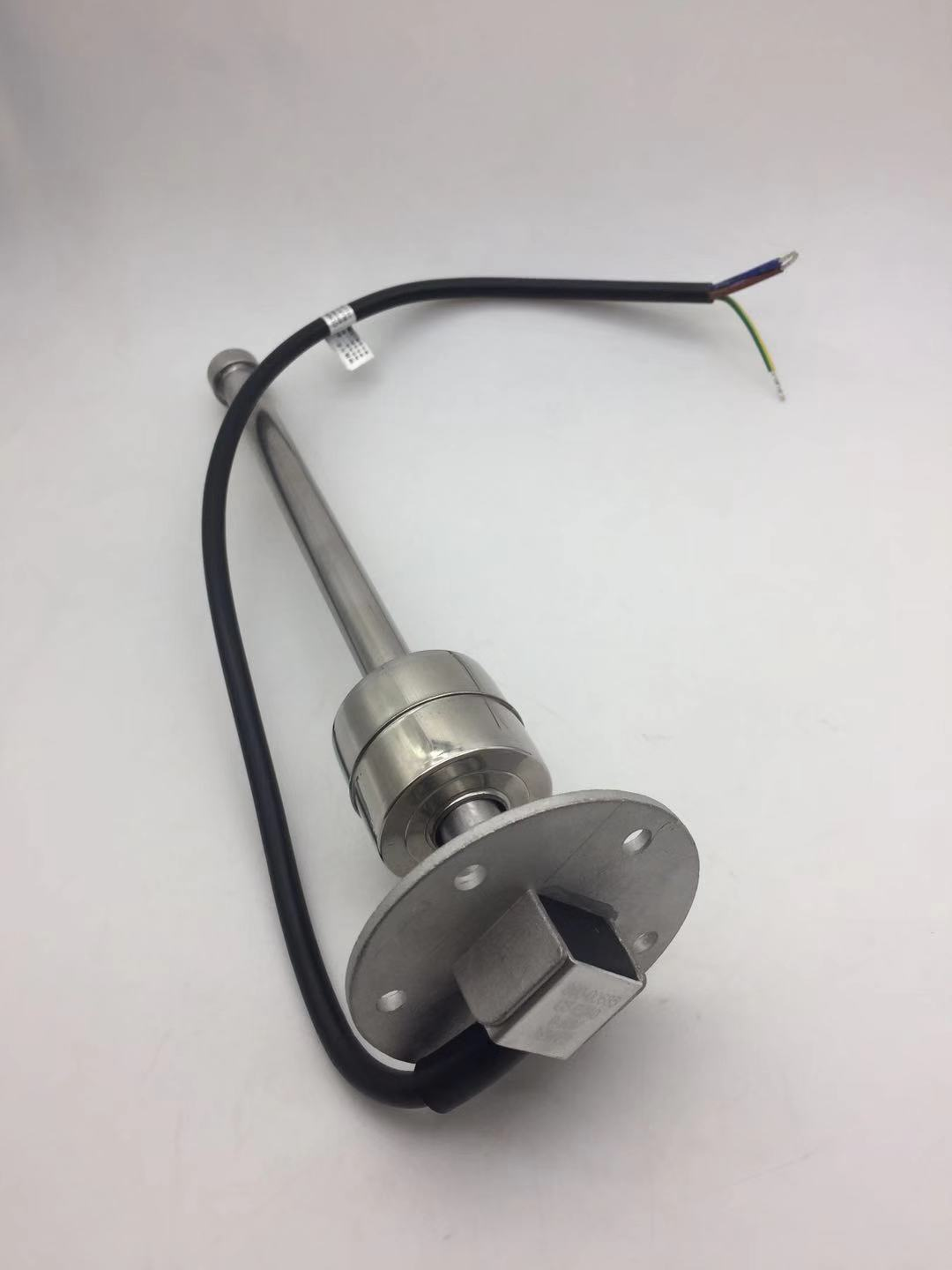

Products Description
Feature
●stainless steel material and low cost
● Simple and strong structure, anti-vibration
● Reed switch, steady output signal
● Long using life, wear resistance
● Without limitation of environment
● Length can be customized
Applications
● Fuel tank
● Water tank
● Truck fleet management
● Yacht
● Uses a wide range of automotive, marine, engineering,
machinery, chemical tank and pipeline sewage tank.
Description
Specifications
Material | 304/316 stainless steel | |
Length range | 100 to2,000mm for standard (can be customized) | |
Installation | SAE standard 5 holes | |
Flanges | Various types of flanges are available for fitting fuel tank if necessary | |
Mounting | 5 pieces of M5 screws and 2 mm thick stainless steel gasket, or recommended 2 mm thick FPM gasket if be used in gas tank. | |
Connector | Brand Delphi, Tyco or others is available according to customer’s Requirement | |
Supply voltages | 10 to 32V | |
Rated current for alarm switch | 500mA | |
Output signal | Resistance range | 0 to 190Ω |
Voltage range | 0.5 to 4.5V or 0 to 5V (can be customized) | |
Current range | 0 to 20mA or 4 to 20mA | |
Operating temperatures | - 40 to 85°C | |
Protection rank | IP65 | |
Option | high/low alarm | |
Resolution range | 10 to 40mm | |
Product Features
Product Specification

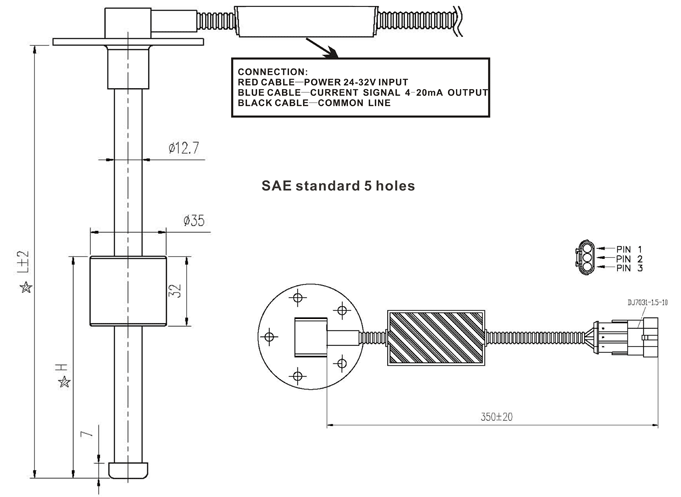

Product Dimensions
