Products Description
Product Features
■ It is easy to install without breaking the pipe
■ The main unit is installed in the wall, instrument box and distribution box, and the protection level reaches IP67.
■ Multiple specifications of host options
Product Specification
Product Dimensions
ECUF200 Series Ultrasonic Flowmeter | |
Model | ECUF200 |
Principle | Ultrasonic time difference principle |
Precision | ±1% |
Flow rate range | 0～±10m/s, forward and reverse measurement |
Fluid temperature | -30~+160°C |
Fluid type | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc. |
Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining |
Signal output | 1 channel 4 ~ 20mA current output impedance 0 ~ 1K, accuracy 0.1% 1 channel OCT pulse output pulse width 6~1000ms 1 relay output |
Signal input | 3 channels of 4~20mA current input, can be used as data collector Can be connected to a three-wire PT100 platinum resistor for thermal measurement |
Communication Interface | Isolated RS-485 serial interface, support MODBUS protocol |
Data storage | SD card timing storage setting parameters and measurement results (optional) |
Power supply | DC8~36V or AC85~264V |
Protection level | Host: IP67, sensor: IP68 |
Humidity | ≤85%RH |
Temperature | Host: -20 ~ +60 ° C, sensor: -30 ~ +160 ° C |

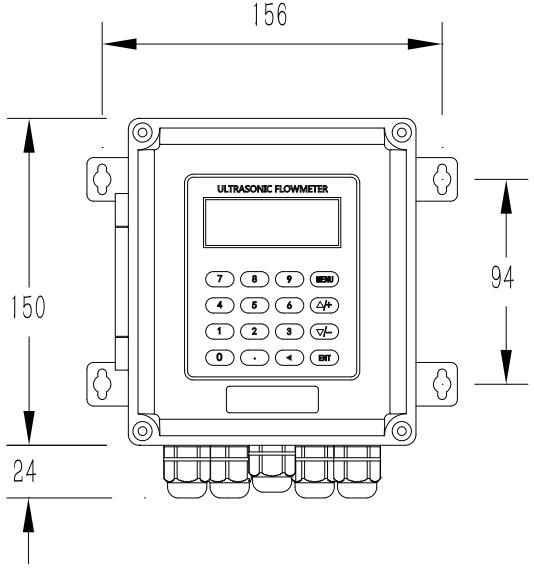

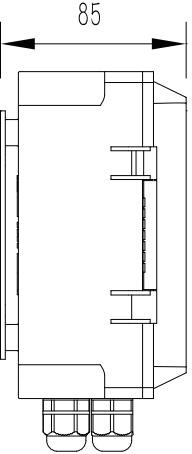

Dimensional Drawing (mm) | |
| |
Product Features
■ It is easy to install without breaking the pipe
■ The main unit is installed in the wall, instrument box and distribution box, and the protection level reaches IP67.
■ Multiple specifications of host options
Product Dimensions
ECUF200 Series Ultrasonic Flowmeter | |
Model | ECUF200 |
Principle | Ultrasonic time difference principle |
Precision | ±1% |
Flow rate range | 0～±10m/s, forward and reverse measurement |
Fluid temperature | -30~+160°C |
Fluid type | Water, sea water, sewage, acid and alkali, alcohol, beer, various oils, etc. |
Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminum, fiberglass, and other dense pipes, allowing lining |
Signal output | 1 channel 4 ~ 20mA current output impedance 0 ~ 1K, accuracy 0.1% 1 channel OCT pulse output pulse width 6~1000ms 1 relay output |
Signal input | 3 channels of 4~20mA current input, can be used as data collector Can be connected to a three-wire PT100 platinum resistor for thermal measurement |
Communication Interface | Isolated RS-485 serial interface, support MODBUS protocol |
Data storage | SD card timing storage setting parameters and measurement results (optional) |
Power supply | DC8~36V or AC85~264V |
Protection level | Host: IP67, sensor: IP68 |
Humidity | ≤85%RH |
Temperature | Host: -20 ~ +60 ° C, sensor: -30 ~ +160 ° C |
Dimensional Drawing (mm) | |
| |
