Integrated Wind Speed And Direction



The Atech Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. It can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Applications

· Weather monitoring stations

· Safety monitoring of high altitude equipment

· Ports

· Mobile weather monitoring vehicles

· Marine vessels

· Remote airports & helipads

· Road & rail tunnels



· Low starting threshold

· Overall carbon fiber material

· Strong corrosion resistant ability

· Light structure

· Various output signals optional

· Easy Installation





Output	Pulses	4-20mA	0-5V	RS485
Supply Voltage	5V,12V-24V	5V,12V-24V	5V,12V-24V	5V,12V-24V
Load Capacity	>1kΩ	<500Ω(typ 250Ω)	>1kΩ
Range	0-45m/s	0-45m/s	0-45m/s	0-45m/s
Accuracy	±(0.3+0.03V)m/s; (V is the current wind speed)
Starting Threshold	<0.5m/s
Limit wind speed	50m/s
Ingress Protection	IP65
Operating Temperature	-40℃~ +50℃
Cable Grade	Nominal voltage:300V ,Temperature grade:80℃
Weight(unpacked)	170g

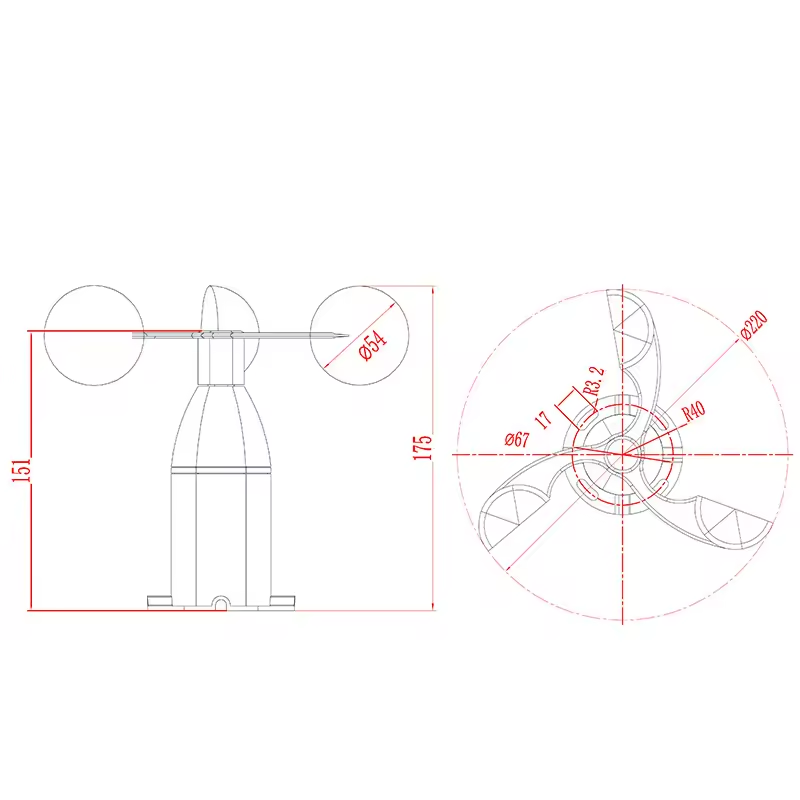

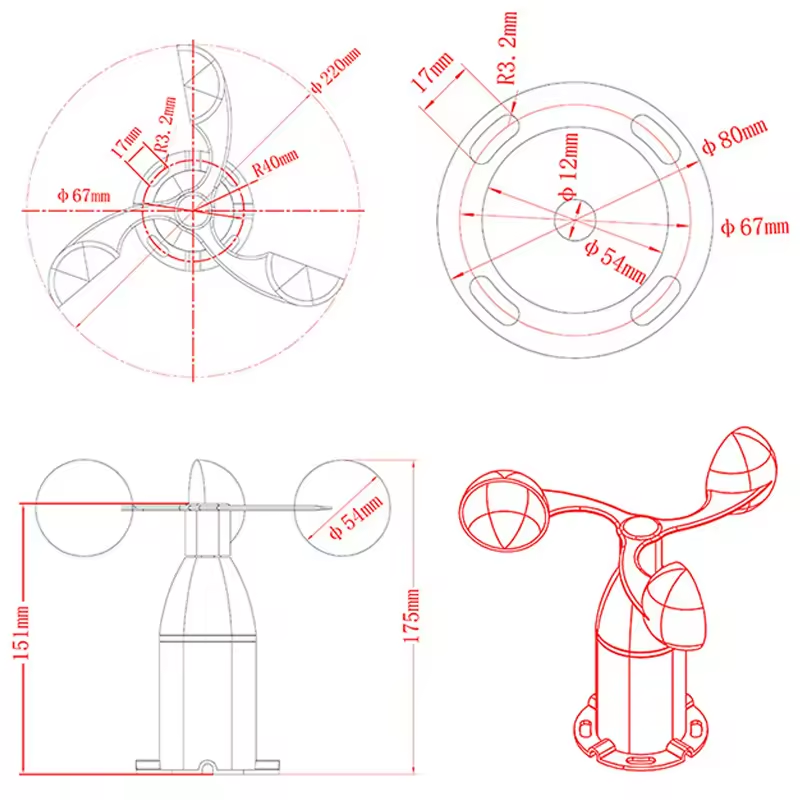

Dimension	Cup rotor:ø179mm,Height:160mm
Main material	Carbon fiber
Storage Condition	10℃-50℃@20%-90%RH
