Products Description

Differential Pressure Sensor is a standard and most popular sensor applied in air and liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. The housing is fluid filled with silicon oil for pressure transmission. The most important specification for industry application is long term stability.

It is designed for industry application with perfect long-term stability.

The diaphragm diameter has tight relation with pressure measured. Low pressure requires large diameter and high pressure needs small diameter. This is caused by oil expansion during temperature changing.

It creates internal pressure due to the resistance of the diaphragm. The smaller diaphragm will create large internal pressure, and it is difficult to make zero compensation.

It is available ranges 0-2.5Mpa.

Applications：

● Industrial process control

● Level measurement

● Gas, liquid pressure measurement

● Pressure checking meter

● Liquid pressure system and switch

● Pressure calibrator

● Cooling equipment & A/C system

● Aviation and navigation inspection

Product Features

● Pressure range 0～2.5MPa

● Differential Pressure

● Constant current/Voltage power supply

● Isolated construction, measure various media

● Φ19mm OEM Pressure Sensor

● Full Stainless Steel 316

● Wide temperature compensation -10℃～80℃

● Long-term stability ±0.1%FS/year

Product Specification

Model	Range	Diameter	Type	Accuracy/FS	Input	Output
Series 1	0-2bar-1000bar	12.6mm	G/A/S	0.1%-0.2%	1.5mA	≤150mV
Series 2	0-1500bar	15mm	G/A/S	0.1%-0.2%	5V	≤150mV
Series 3	0-0.07bar	19mm	G	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 4	-1bar-0.1bar-1000bar	19mm	G/A/S	0.1%-0.2%	1.5mA/3.3V/5V/10V	≤150mV
Series 5	-1bar-0.1bar-1000bar	19mm	G/A	0.3%-0.5%	3.3V	≤150mV
Series 6	0.1bar-30bar(Pressure)	19mm	G/A/S	0.25%	1.5mA/5V/10V	≤150mV
Series 6	-104'℉-185'℉(Temperature)	19mm	G/A/S	0.50%	1.5mA/5V/10V	≤150mV
Series 7	-1bar-0.1bar-1000bar	19mm	G/A/S	0.20%	10-30V	0.5-4.5V/4-20mA
Series 8	0-0.35bar-35bar	19mm	D	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 9	-1bar-0.1bar-1000bar	28mm	G/A/S	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 10	-1bar-100bar	19mm	G/A/S	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 11	0-5bar-100bar	29.5mm	G/A/S	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 12	-1bar-0.1bar-35bar	19mm	G/A/S	0.1%-0.2%	1.5mA/5V/10V	≤150mV
Series 13	0-0.35bar-60bar	50mm	G/A/S	0.20%	1.5mA/5V/10V	≤150mV
Series 14	0-100pa-400bar	35mm	G/A/S/D	0.1%-0.2%	10-30V	4-20mA/HART
Series 15	0-2bar-2200bar	19mm	G/A/S	0.05%-0.075%	1.5mA/5V/10V	≤150mV

Measuring Range & Output
Range	Overload Pressure	Output/F.S (mV)	Typical Value(mV)	Pressure Type
0~10 kPa	300%	35~60	45	G/D
0~20 kPa	300%	70~110	90	G/D
0~35 kPa	300%	55~80	70	G/A/D
0~70 kPa	300%	55~80	60	G/A/D
0~100 kPa	300%	60~85	75	G/A/D
0~200 kPa	300%	60~85	75	G/A/D
0~400 kPa	300%	60~80	70	G/A/D
0~600 kPa	200%	90~120	100	G/A/D
0~1.0 MPa	200%	125~185	150	G/A/D
0~1.6 MPa	200%	80~120	100	G/A/D
0~2.0 MPa	200%	50~70	60	G/A/D
0~3.5 MPa	200%	100~120	110	G/A/D
Notes: G for Gauge pressure; A for Absolute pressure; D for Differential pressure; S for Sealed gauge.

Technical Parameters - Range 0-1Mpa-100Mpa
Parameters	Typ.	Max.	Unit
Nonlinearity	0.2	0.3	%FS
Hysteresis	0.03	0.05	%FS
Repeatability	0.03	0.05	%FS
Zero Output	±1	±2	mV DC
FS output	85	100	mV DC
Input/ Output Impedance	2.6	3.8	kΩ
Zero Temperature Drift*	±0.15	±0.8	%FS,@25℃
Sensitivity Temperature Drift*	±0.2	±0.7	%FS,@25℃
Long-term Stability	0.2	0.3	%FS/year
*The typical value of 0~10kPa & 0~20kPa's zero temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃
*The typical value of 0~10kPa & 0~20kPa's sensitivity temperature drift is 0.4%FS@25℃, max value is 1.6%FS@25℃

Construction Performance
Diaphragm	Stainless Steel 316L
Housing	Stainless Steel 316L
Pressure leading tube	Stainless Steel 316L
O Ring	Φ19mm(nitrile rubber or viton)
Measuring Medium	Which is compatible with SS316L, viton, nitrile rubber
Packing Medium	Silicon Oil
Net weight	100g

Electric & Environment Performance
Power supply	1.5mA/5V/10V
Insulation Resistance	500MΩ@500VDC
Overpressure	1.5~3 times FS
Vibration(20~500Hz)	20G
Useful Time(25℃)	>1*100 Million Times @Pressure Circulation(80%FS)
Response Time	≤1ms
Storage Temp.	-40~+125℃
Operating Temp.	-40~+85℃
Compensation Temp.	0~50℃; -10~80℃

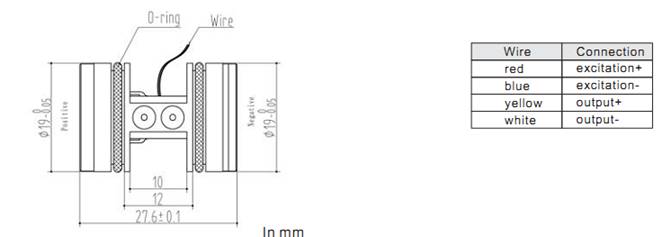

Product Dimensions
