Products Description

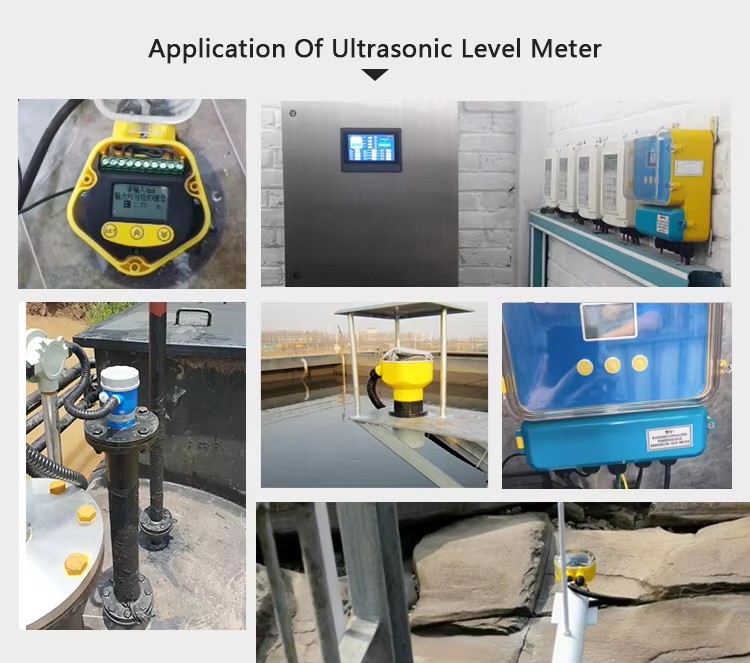

Customer Photos
Widely used in liquid or solid level measurement, like,holographic surveying, hydrometer plant, Seas, lakes,water environment monitoring and other industry.
Why choose us
Product Features
1. Non-Contact measurement.
2. Cost effective.
3. Easy to installation and set,you can calibrate the instrument completely according to our manual.
4. Easy to use spport Modbus protocol (both RTU and ASCII).
5. Eight types algorithm can be choose to adapt to a variety application field.
6. Accuracy can be 0.3% and against all kinds of interference waves.
7. This instrument is a non-contact instrument, so it has low breakdown rate. It provides a variety of installation methods.
Product Specification
| Function | Integral type | Split type |
| Measurement range | 5m,10m,15m,20m,30m,40m,50m,60m | 5m,10m,15m,20m,30m,40m,50m,60m,70m |
| Measurement accuracy | 0.25%-0.5% | 0.25%-0.5% |
| resolution | 3mm or 0.1%(which is bigger) | 3mm or 0.1%( which is bigger) |
| display | Chinese and English LCD | Chinese and English LCD |
| Analog output | 4wires4~20mA/750&; load | 4~20mA/750&; load |
| 2wires4~20mA/250&; load | ||
| Relay output | 2groups AC 250V/ 8A or DC 30V/ 5A state programmable(optional) | Single channel for two groups, double channels for four groups AC 250V/ 8A or DC 30V/ 5A state programmable( optional ) |
| Power supply | Standard configuration 24VDC | Standard configuration 220V AC+15% 50Hz |
| optional 220V AC+15% 50Hz | optional 24VDC 120mA | |
| optional 12VDC or customerized power supply | optional 12VDC or customerized power supply | |
| Environment temperature | Display instrument-20~+60°C, | Display instrument -20~+60°C, |
| transducer-20~+80°C | transducer-20~+80°C | |
| communication | Optional 485,232 communication(Manufacturer agreement) | Optional 485,232 communication(Manufacturer agreement ) |
| Protection grade | Display instrument IP65,transducer IP68 | Display instrument IP65,transducer IP68 |
| transducer cable | no | Up to 100 m, Standard configuration 10m |
| Transducer installation | According to the range and transducer select | According to the range and transducer select |
Product Dimensions
Product Features
1. Non-Contact measurement.
2. Cost effective.
3. Easy to installation and set,you can calibrate the instrument completely according to our manual.
4. Easy to use spport Modbus protocol (both RTU and ASCII).
5. Eight types algorithm can be choose to adapt to a variety application field.
6. Accuracy can be 0.3% and against all kinds of interference waves.
7. This instrument is a non-contact instrument, so it has low breakdown rate. It provides a variety of installation methods.
Product Dimensions
Product Specification
| Function | Integral type | Split type |
| Measurement range | 5m,10m,15m,20m,30m,40m,50m,60m | 5m,10m,15m,20m,30m,40m,50m,60m,70m |
| Measurement accuracy | 0.25%-0.5% | 0.25%-0.5% |
| resolution | 3mm or 0.1%(which is bigger) | 3mm or 0.1%( which is bigger) |
| display | Chinese and English LCD | Chinese and English LCD |
| Analog output | 4wires4~20mA/750&; load | 4~20mA/750&; load |
| 2wires4~20mA/250&; load | ||
| Relay output | 2groups AC 250V/ 8A or DC 30V/ 5A state programmable(optional) | Single channel for two groups, double channels for four groups AC 250V/ 8A or DC 30V/ 5A state programmable( optional ) |
| Power supply | Standard configuration 24VDC | Standard configuration 220V AC+15% 50Hz |
| optional 220V AC+15% 50Hz | optional 24VDC 120mA | |
| optional 12VDC or customerized power supply | optional 12VDC or customerized power supply | |
| Environment temperature | Display instrument-20~+60°C, | Display instrument -20~+60°C, |
| transducer-20~+80°C | transducer-20~+80°C | |
| communication | Optional 485,232 communication(Manufacturer agreement) | Optional 485,232 communication(Manufacturer agreement ) |
| Protection grade | Display instrument IP65,transducer IP68 | Display instrument IP65,transducer IP68 |
| transducer cable | no | Up to 100 m, Standard configuration 10m |
| Transducer installation | According to the range and transducer select | According to the range and transducer select |
