TD-L07 wireless water level monitor

TD-L07 wireless water level monitor is an intelligent instrument with wireless communication function & super low power consumption design.

● liquid crystal display

● Import chip

● Level probe

● Power supply mode

● Mode of communication

Send Inquiry

Products Description

Model: TD-L07 (LoRa/Lora WAN Communication)

TD-L07 wireless water level monitor is an intelligent instrument with wireless communication function & super low power consumption design. with a advanced industrial MCU and a high quality level sensor, it integrates the LoraWAN network to realize the wireless transmission between filed equipment and Gateday. This gauge will report the level data regularly based on the set interval, and the customer could track all real-time and historical records remotely on WEB pages. All of the uploaded data would be saved in database automatically for the convenience of further checking. Users could log in related URL by network-connected PC or Mobile to check data and do statistics and analysis for the data, then forming a report and data graph, which is featured as visual, accurate and high- efficient. Cooperated with LoraWAN gateway, the TD-L07 wireless level logger could work anywhere.

Applications:

1.liquid crystal display

The panel is simple and easy to operate

2.Import chip

Measuring accuracy up to 0.5degrees

3.Level probe

High liquid level and low liquidlevel active alarm

4.Power supply mode

Lithium battery power

5.Mode of communication

Nb-iot Standard Lorawan

Product Features

1.special material

Waterproof, oil discharge for a variety of environments,long service life

2.simple structrure

Easy to install

3.power suply mode

Lithium battery power supply,convenient and fast

Product Specification

Warranty	1 years
Customized support	OEM, ODM
Model Number	PL701
Pressure range	0~3 m(diesel)
Overload	150%FS
Output signal	4~20mA, 0.5 ~4.5V, 0~ 5V gps module
Accuracy	0.5%FS (standard)
Power supply	10VDC -35VDC 3.6VDC(battery supply)
Operating temperature range	-25~+85c of zigbee pressure sensor
Process connection	G1/4 or others you can OEM
communication frequency band	2.405GHz~2.480GHz
Type	Resistance Sensor, Industrial, Indoor,Temperature Sensor
Warranty of pressure transducer	12-18 months

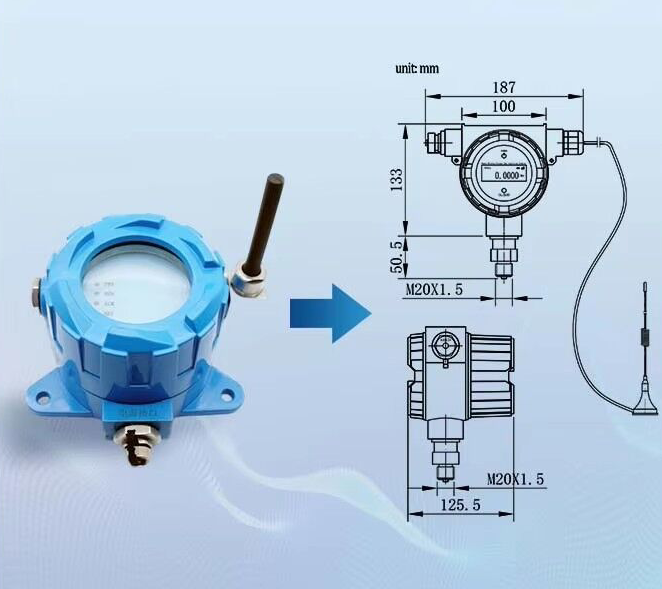

Product Dimensions
