Products Description
The Atech optical rain gauge series is a reliable and cost-effective choice for precipitation measurement. The overall size of the optical rain gauge is about the size of a tennis ball, and the internal sensor is completely sealed from the external environment. The delivery comes with mounting brackets that can be easily installed on weather stations, street lights and other infrastructure.
Model:Atech 2-5
MOQ: 1 PCS
Delivery date: within 24 hours
Working principle
When raindrops pass through the sampling space, the raindrops will block the laser, and the light signal received by the receiving sensor and the electrical signal (such as voltage or current) converted from the light signal will change. When the raindrop passes through the sampling space, it will receive the electrical signal from the sensor. Restore the previous state. When the raindrops traverse the sampling space, the electrical signals of the receiving sensor are processed, and the time for the raindrops to traverse the sampling space can be obtained.
Product Features
Optical rain gauge advantages
Compared with the tipping bucket rain gauge: the optical rain gauge is small in size, simple to install, and easy to maintain. The optical rain gauge uses electronic optics and a series of microelectronic filtering, amplification, and detection technologies. This principle has the advantage of sensitivity. During installation, because the optical rain gauge is non-mechanical and non-contact measurement, there is no horizontal installation requirement, so the installation is simple and the subsequent maintenance is also convenient. The shell has smooth lines and an easy-to-maintain design, which is not easily blocked by fallen leaves.
Product Specification
Optical rain gauge parameters
Sense of rain diameter: 6CM
Power supply voltage: 9~30V DC
Power consumption: <0.24W (12V DC, current less than 20mA)
Resolution: 0.1mm
Accuracy: ±5%
Maximum instantaneous rainfall: 24mm/min
Output mode: RS485 or Pulse
Working environment: -40~60℃, 0~99% (non-condensing)
Working pressure range: standard atmospheric pressure ±10%

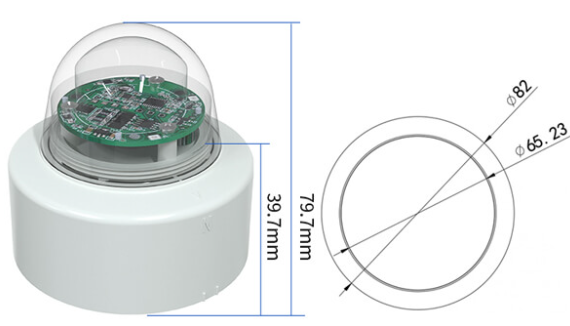

Product Dimensions
Product Features
Optical rain gauge advantages
Compared with the tipping bucket rain gauge: the optical rain gauge is small in size, simple to install, and easy to maintain. The optical rain gauge uses electronic optics and a series of microelectronic filtering, amplification, and detection technologies. This principle has the advantage of sensitivity. During installation, because the optical rain gauge is non-mechanical and non-contact measurement, there is no horizontal installation requirement, so the installation is simple and the subsequent maintenance is also convenient. The shell has smooth lines and an easy-to-maintain design, which is not easily blocked by fallen leaves.
Product Dimensions
Product Specification
Optical rain gauge parameters
Sense of rain diameter: 6CM
Power supply voltage: 9~30V DC
Power consumption: <0.24W (12V DC, current less than 20mA)
Resolution: 0.1mm
Accuracy: ±5%
Maximum instantaneous rainfall: 24mm/min
Output mode: RS485 or Pulse
Working environment: -40~60℃, 0~99% (non-condensing)
Working pressure range: standard atmospheric pressure ±10%
