Products Description
The industrial water PH sensor is a device for measuring the pH value (hydrogen ion concentration index, pH) of a solution. With automatic temperature compensation function. It is suitable for industrial sewage, domestic sewage, agriculture, aquaculture, and other scenarios in a non-corrosive weak acid and weak alkali environment. The output signal has rs485, 4-20ma, 0-5V, 0-10V.
Model: Atech 3-1
MOQ: 1 PCS
Delivery date: within 24 hours
Description
industrial pH sensor adopts conventional composite electrode, which is suitable for the measurement of conventional sewage, tap water, environmental sewage, domestic sewage and other solutions. The pH measure range is between 0~14pH, and the resolution is 0.01pH. The adaptation temperature of the electrode is 0-80℃. This water pH sensor consists of two parts: a data collector and an electrode probe. The ph electrode probe has four lengths of 5m, 10m, 15m, and 20m. The housing of the data collector is IP65 protection grade, which can be used in outdoor rain and snow environment.
When it detects that the PH concentration exceeds the preset alarm value, it can provide multiple alarm methods such as interface alarm, sound and light alarm, SMS alarm, telephone alarm, email alarm, etc., to remind managers to troubleshoot the cause of excessive PH value in time, and record the event for information Call and analyze.
pH electrode use

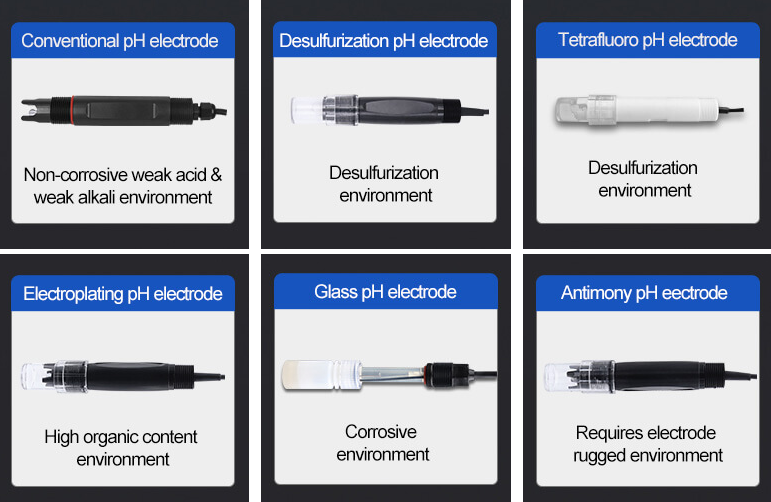

There are different types of pH electrodes for different measurement environments. The six most commonly used electrode types are listed on the right.
Application
Industrial Waste Water Applications
Sanitation Chemicals – Chlorine, Bleach, Caustic, Acids, Bases
Pharmaceutical Waste Water
Sewer Water
Cooling Towers
Commercial Swimming Pools
Aquaculture industry
Aquarium measurement ph
Product Features
1.High performance: high accuracy, fast response, good repeatability
2.Universal protocol: MODBUS RS-485 or 4~20mA current
3.Wide-range power supply: 10V ~ 30VDC
4.Robustness: suitable to be immersed in water for a long time
5.Maintainance-Free: advanced junction design, no clogging
6.Durable: anti-corrosion, automatic temperature compensation
7.User-friendly: Easy to install and integrate
Product Specification
Power supply: DC 10~30V
Power consumption: 0.6W (rs485), 1.2W (4~20mA/0~5V/0~10V)
Output signal: RS485/4~20mA/0~5V/0~10V
pH measurement range: 0~14.00pH
Resolution: 0.01pH
pH measurement error: ±0.15pH
Repeatability error: ±0.02pH
Temperature measurement range: 0~80℃
Resolution: 0.1°C (set temperature for manual temperature compensation, default 25°C)
Temperature measurement error: ±0.5℃
Working environment: 0-60℃, relative humidity <85%
Applicable temperature of electrode: 0~80℃
Electrode wire length: default 5m (10m, 15m, 20m can be customized)
Electrode life cycle: 1 year
Electrode Type PH range Temperature(℃) Pressure resistance(Mpa) Internal resistance MΩ (25℃) Zero potential Theoretical percent slope(%) Conventional pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Desulfurization pH electrode 0-14 0-60 0.6 ≤250 7±0.2 ≥95 Tetrafluoro pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Electroplating pH electrodes 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Glass pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Antimony pH electrode 0-14 0-80 0.6 / 7±0.2 ≥95

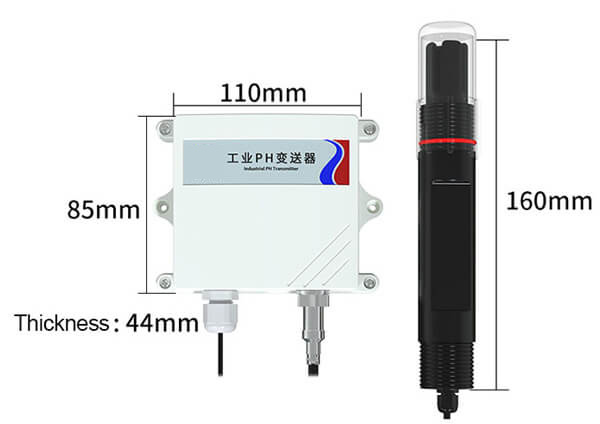

Product Dimensions
Product Features
1.High performance: high accuracy, fast response, good repeatability
2.Universal protocol: MODBUS RS-485 or 4~20mA current
3.Wide-range power supply: 10V ~ 30VDC
4.Robustness: suitable to be immersed in water for a long time
5.Maintainance-Free: advanced junction design, no clogging
6.Durable: anti-corrosion, automatic temperature compensation
7.User-friendly: Easy to install and integrate
Product Dimensions
Product Specification
Power supply: DC 10~30V
Power consumption: 0.6W (rs485), 1.2W (4~20mA/0~5V/0~10V)
Output signal: RS485/4~20mA/0~5V/0~10V
pH measurement range: 0~14.00pH
Resolution: 0.01pH
pH measurement error: ±0.15pH
Repeatability error: ±0.02pH
Temperature measurement range: 0~80℃
Resolution: 0.1°C (set temperature for manual temperature compensation, default 25°C)
Temperature measurement error: ±0.5℃
Working environment: 0-60℃, relative humidity <85%
Applicable temperature of electrode: 0~80℃
Electrode wire length: default 5m (10m, 15m, 20m can be customized)
Electrode life cycle: 1 year
Electrode Type PH range Temperature(℃) Pressure resistance(Mpa) Internal resistance MΩ (25℃) Zero potential Theoretical percent slope(%) Conventional pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Desulfurization pH electrode 0-14 0-60 0.6 ≤250 7±0.2 ≥95 Tetrafluoro pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Electroplating pH electrodes 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Glass pH electrode 0-14 0-80 0.6 ≤250 7±0.2 ≥95 Antimony pH electrode 0-14 0-80 0.6 / 7±0.2 ≥95
