Products Description
Built-in temperature sensor: PT1000;
Shell material: Polypropylene;
Working temperature: 0 ~ 100 ℃ ;
Range: 0 ~ 2000ms/cm;
Output cable: 0.3 (high temperature wire) + 4.7 meters (pvc wire);
signalhandler: external type;
Signal output type: current loop type.
Output signal: 4 ~ 20mA, maximum driving load resistance is 500Ω ;
Operating Power Supply: 21V (min) ~ 26V (max) dc @ 35mA typical.
Product Features

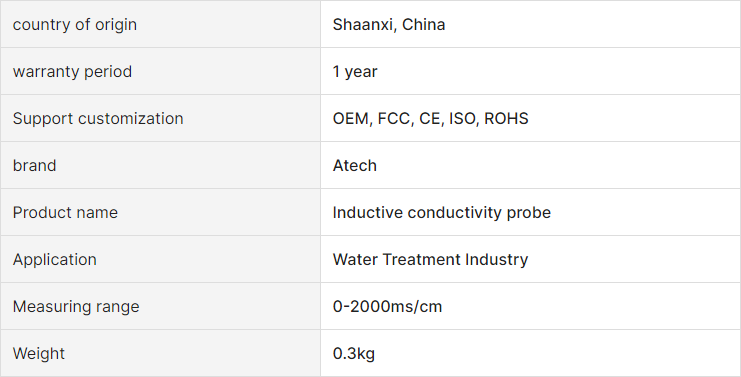

Product Specification
Product Dimensions
Product Features
Product Dimensions
Product Specification
