Products Description
Ultrasonic level sensor for non-contact liquid/solid/powder tank level measurement has maximum measuring range 0-6m, can transmit and output various signals to remote control system, such as 4-20mA.
Product Features
The internal ultrasonic transducer and receiving transducer has high resolution and fast response time.
Product Specification
Specification:
| Model | Atech Sensor | ||
| Shipping weight | 2.5kg | ||
| Measuring range * | 0.1-0.5m, 0.15-1m, 0.2-2m, 0.3-3m, 0.4-5m, 0.5-6m | ||
| Resolution | 3mm, or 0.1% (choose the higher value) | ||
| Response time | ＜200ms | ||
| Emission angle | 20° | ||
| Output signal | 4-20mA | ||
| Display | 3 digits LED display | ||
| Power supply | DC 24V ± 15%, 120mA | ||
| Load | 4-20mA/500Ω | ||
| Communication protocol | MODBUS RTU | ||
| Medium | Water, fuel, oil, metal, or other liquid/solid/powder | ||
| Working temperature | -20~+60℃ (-4~+140℉) | ||
| Working pressure | 14.7 psi | ||
| Cable length | 1m | ||
| Wiring | Red: 24VDC+, Black: 24VDC- a) 4-20mA: Blue: mA+, Yellow: mA- (or GND) b) 0-5V: Blue: V+, Yellow: V- c) RS485/232: Blue: T/R-, Yellow: T/R- d) relay: Blue: no connection, Yellow: no connection e) NPN: Blue: NPN+, Yellow: NPN- f) PNP: Blue: PNP+, Yellow: PNP- | ||
| Protection class | IP65 | ||
| Installation | 2 nuts with M56*2mm thread | ||
| Warranty | 12 months | ||
Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

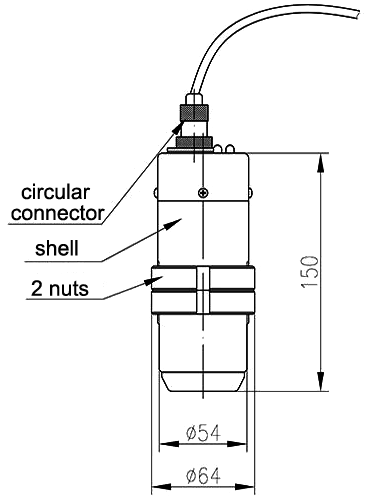

Product Dimensions
Product Features
The internal ultrasonic transducer and receiving transducer has high resolution and fast response time.
Product Dimensions
Product Specification
Specification:
| Model | Atech Sensor | ||
| Shipping weight | 2.5kg | ||
| Measuring range * | 0.1-0.5m, 0.15-1m, 0.2-2m, 0.3-3m, 0.4-5m, 0.5-6m | ||
| Resolution | 3mm, or 0.1% (choose the higher value) | ||
| Response time | ＜200ms | ||
| Emission angle | 20° | ||
| Output signal | 4-20mA | ||
| Display | 3 digits LED display | ||
| Power supply | DC 24V ± 15%, 120mA | ||
| Load | 4-20mA/500Ω | ||
| Communication protocol | MODBUS RTU | ||
| Medium | Water, fuel, oil, metal, or other liquid/solid/powder | ||
| Working temperature | -20~+60℃ (-4~+140℉) | ||
| Working pressure | 14.7 psi | ||
| Cable length | 1m | ||
| Wiring | Red: 24VDC+, Black: 24VDC- a) 4-20mA: Blue: mA+, Yellow: mA- (or GND) b) 0-5V: Blue: V+, Yellow: V- c) RS485/232: Blue: T/R-, Yellow: T/R- d) relay: Blue: no connection, Yellow: no connection e) NPN: Blue: NPN+, Yellow: NPN- f) PNP: Blue: PNP+, Yellow: PNP- | ||
| Protection class | IP65 | ||
| Installation | 2 nuts with M56*2mm thread | ||
| Warranty | 12 months | ||
Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.
