Products Description
Capacitive level sensor is transmitter that use a coaxial container. The capacitor is composed of two coaxial cylindrical plates, an inner electrode and an outer electrode. When the liquid enters the container, the capacitance value between the sensor shell and the sensing electrode will change, and the standard current, voltage or digital signal will be output. It is suitable for measurement of conductive liquids.
Product Features
Product Specification
| Measuring Range (Optional): | 0-500mm, 0-700mm, 0-1000mm, 0-1500mm, 0-2000mm |
| Probe Diameter: | φ16mm |
| Signal Output (Optional): | 4-20mA, 0-5VDC, 0-10VDC |
| Signal Wire: | 2 Wire, 3 Wire |

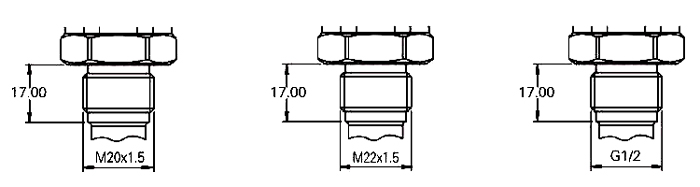

| Thread Type (Optional): | M20X1.5, M22X1.5, G1/2 |
| Power Supply: | 9 ~ 30VDC, 15 ~ 30VDC |
| Accuracy: | ±0.5 %FS, ±1 %FS |
| Zero Temperature Drift: | ±0.05 %FS/℃ |
| Sensitivity Temperature Drift: | ±0.05 %FS/℃ |
| Long-term Stability (1 year): | ±0.1 %FS |
| Probe Temperature Resistance: | -50℃ ~ +200℃ |
| Protection Grade: | IP65 |
| Material: | 316 Stainless Steel |

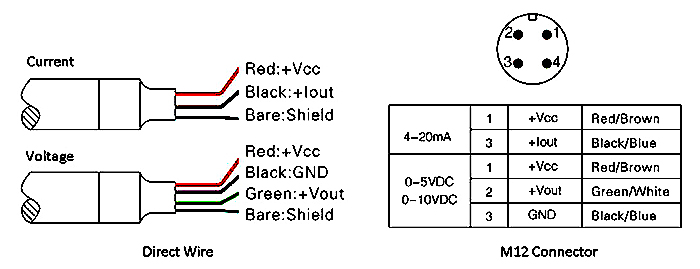

| Connection Type (Optional): | Direct Wire, M12 Connector |

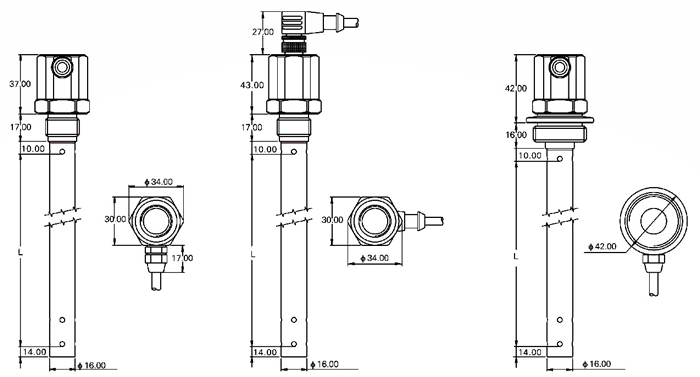

Product Dimensions
Dimension (Unit: mm)
Product Features
Product Dimensions
Dimension (Unit: mm)
Product Specification
| Measuring Range (Optional): | 0-500mm, 0-700mm, 0-1000mm, 0-1500mm, 0-2000mm |
| Probe Diameter: | φ16mm |
| Signal Output (Optional): | 4-20mA, 0-5VDC, 0-10VDC |
| Signal Wire: | 2 Wire, 3 Wire |
| Thread Type (Optional): | M20X1.5, M22X1.5, G1/2 |
| Power Supply: | 9 ~ 30VDC, 15 ~ 30VDC |
| Accuracy: | ±0.5 %FS, ±1 %FS |
| Zero Temperature Drift: | ±0.05 %FS/℃ |
| Sensitivity Temperature Drift: | ±0.05 %FS/℃ |
| Long-term Stability (1 year): | ±0.1 %FS |
| Probe Temperature Resistance: | -50℃ ~ +200℃ |
| Protection Grade: | IP65 |
| Material: | 316 Stainless Steel |
| Connection Type (Optional): | Direct Wire, M12 Connector |
