Products Description
Suitable for multiple scene installation
●Weather monitoring
●Agriculture/Forestry
●Urban environmental monitoring
●Greenhouse
●laboratory
●Urban lighting
Product Features
●Strong anti-interference
●Stable performance
●Wide voltage power supply
●Light material, small size
●High-density material shell
Product Specification
| Measurement parameters | Light intensity |
| Measuring range | 0~2/20/200KLux |
| Work Environment | temperature：-30~80℃，humidity：<100%RH |
| Accuracy | ±5%FS |
| Resolution | 10Lux |
| Nonlinear | ≤0.2%FS |
| Supply voltage | 5~24V DC/12~24V DC |
| Output signal | Analog signal（0~2/5/10V or 4~20mA） |
| RS485（Standard Modbus-RTU protocol, device default address: 01） | |
| SDI-12（American Hydrographic Organization Serial Data Communication Interface Protocol） |

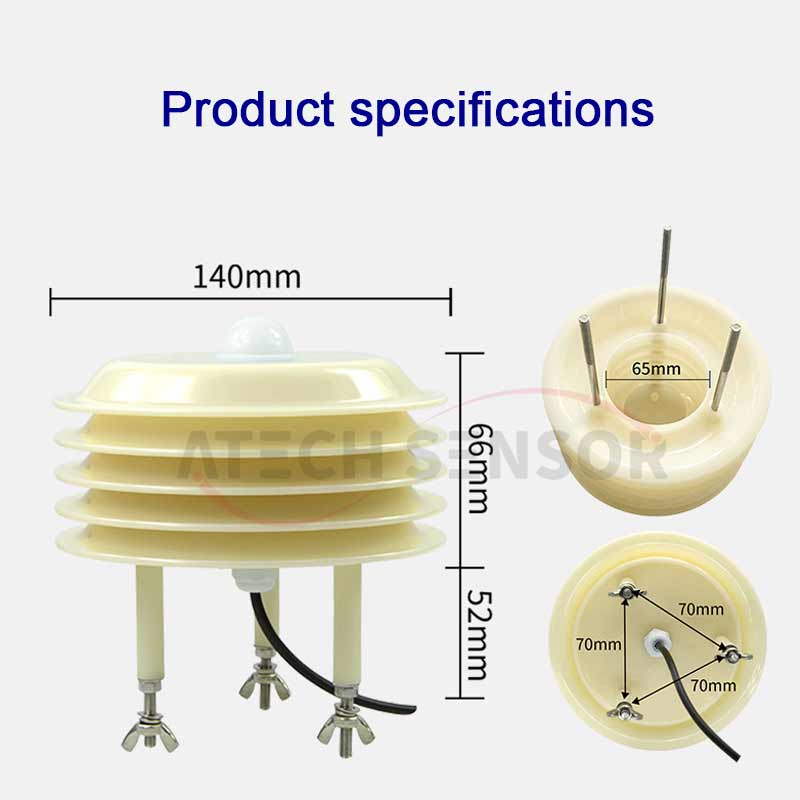

Product Dimensions
Product Features
●Strong anti-interference
●Stable performance
●Wide voltage power supply
●Light material, small size
●High-density material shell
Product Dimensions
Product Specification
| Measurement parameters | Light intensity |
| Measuring range | 0~2/20/200KLux |
| Work Environment | temperature：-30~80℃，humidity：<100%RH |
| Accuracy | ±5%FS |
| Resolution | 10Lux |
| Nonlinear | ≤0.2%FS |
| Supply voltage | 5~24V DC/12~24V DC |
| Output signal | Analog signal（0~2/5/10V or 4~20mA） |
| RS485（Standard Modbus-RTU protocol, device default address: 01） | |
| SDI-12（American Hydrographic Organization Serial Data Communication Interface Protocol） |
