Products Description

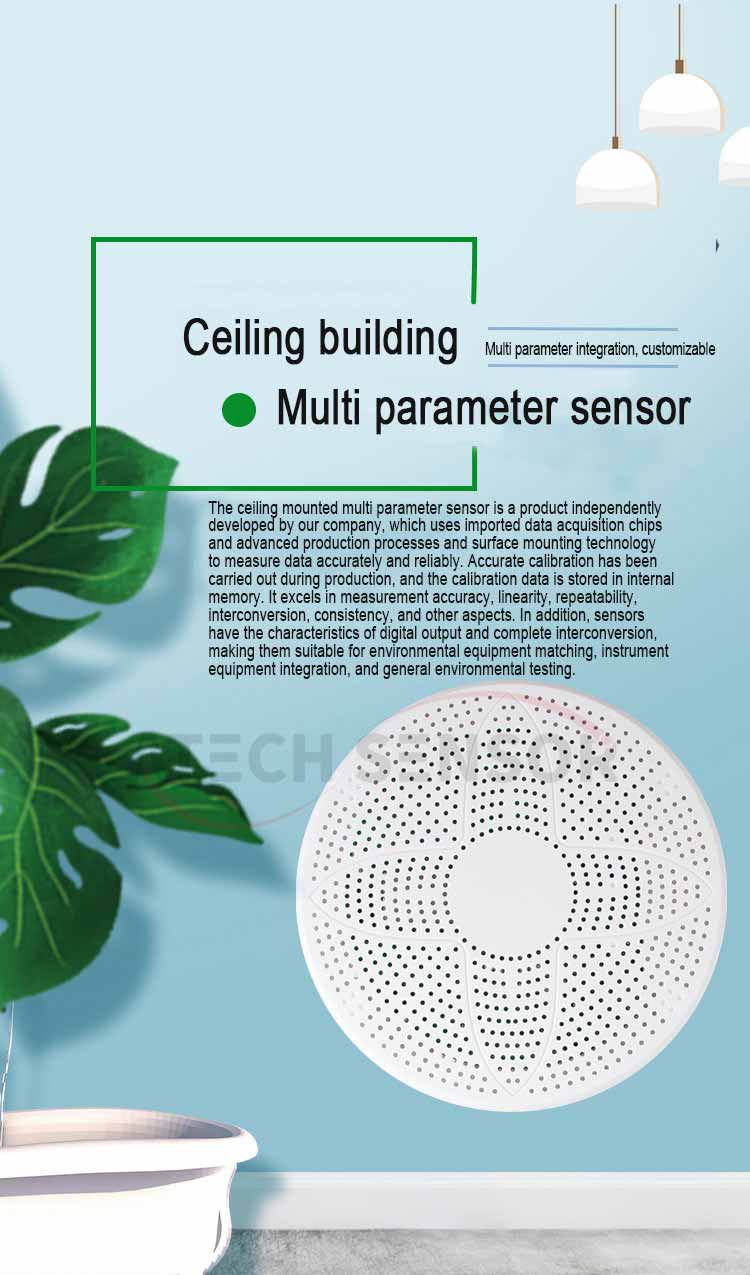

The ceiling-mounted multi-parameter sensor is a product independently developed by our company. It uses imported data acquisition chips and advanced production processes and surface mounting technology, and the measurement data is accurate and reliable. It has been accurately calibrated during production, and the calibration data is stored in the internal memory. It is outstanding in terms of measurement accuracy, linearity, repeatability, interconversion, consistency, etc. In addition, the sensor has a digital output and can be fully interconverted. It is suitable for environmental equipment matching, instrument equipment integration, and general environmental testing.
Product Features
●High integration, low power consumption, long life
●Multiple parameters can be detected at the same time, and users can customize the parameter types as needed
●Low cost, low price, high performance
●High precision and high stability
●Buzzer prompts alarm
●Easy to install

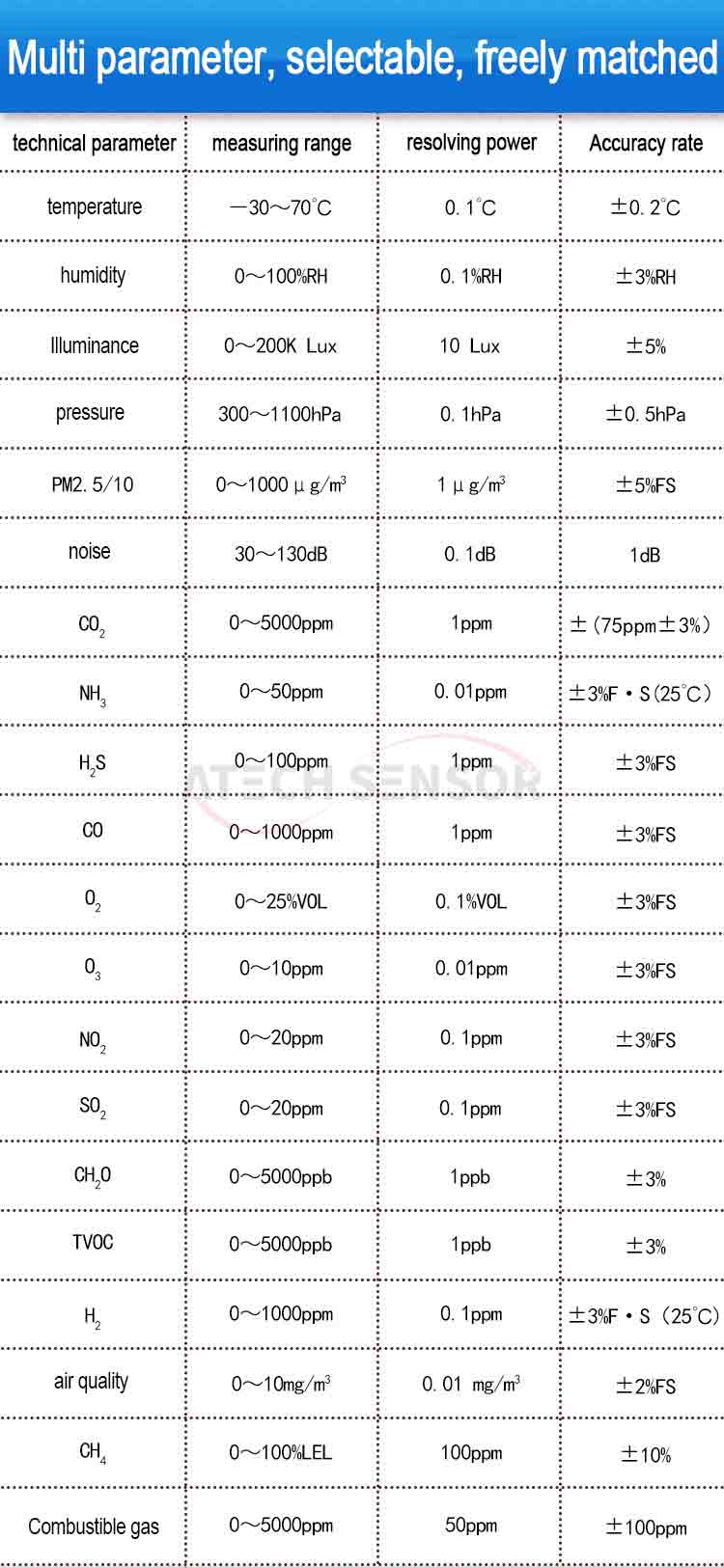

Product Specification
| Output signal | RS485 (standard Modbus-RTU protocol, device default address: 01) |
| 0~2/5/10V, 4~20mA (current loop) | |
| Wireless communication: LoRa, WIFI, 4G | |
| Ethernet communication: standard Modbus-TCP protocol, RJ45 network port | |
| SDI-12 (Serial Data Communication Interface Protocol of the American Hydrographic Organization) | |
| Power supply mode | 1: DC12~24V; 2: Standard POE power supply (48V) |
| Operating temperature | -30℃~70℃ |
| Operating humidity | <100%RH |
| Stability | ≤1%FS |

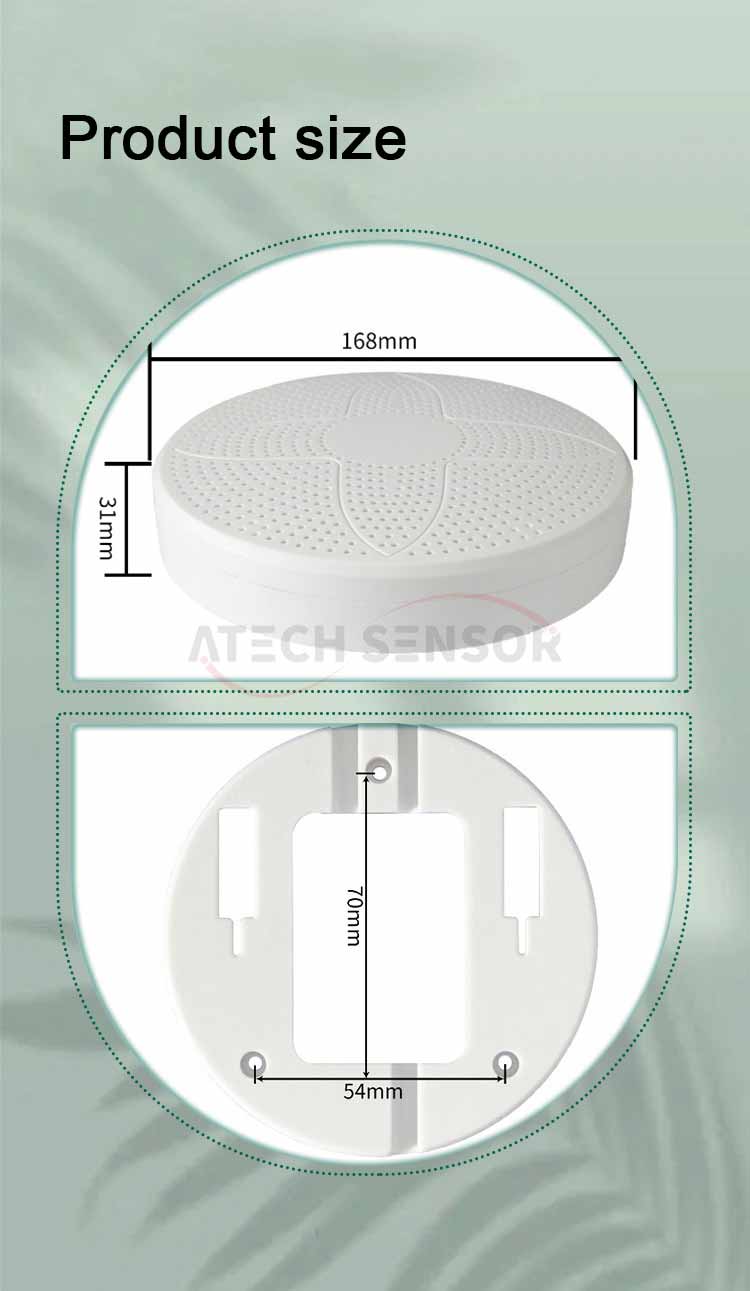

Product Dimensions
Product Features
●High integration, low power consumption, long life
●Multiple parameters can be detected at the same time, and users can customize the parameter types as needed
●Low cost, low price, high performance
●High precision and high stability
●Buzzer prompts alarm
●Easy to install
Product Dimensions
Product Specification
| Output signal | RS485 (standard Modbus-RTU protocol, device default address: 01) |
| 0~2/5/10V, 4~20mA (current loop) | |
| Wireless communication: LoRa, WIFI, 4G | |
| Ethernet communication: standard Modbus-TCP protocol, RJ45 network port | |
| SDI-12 (Serial Data Communication Interface Protocol of the American Hydrographic Organization) | |
| Power supply mode | 1: DC12~24V; 2: Standard POE power supply (48V) |
| Operating temperature | -30℃~70℃ |
| Operating humidity | <100%RH |
| Stability | ≤1%FS |
