Products Description

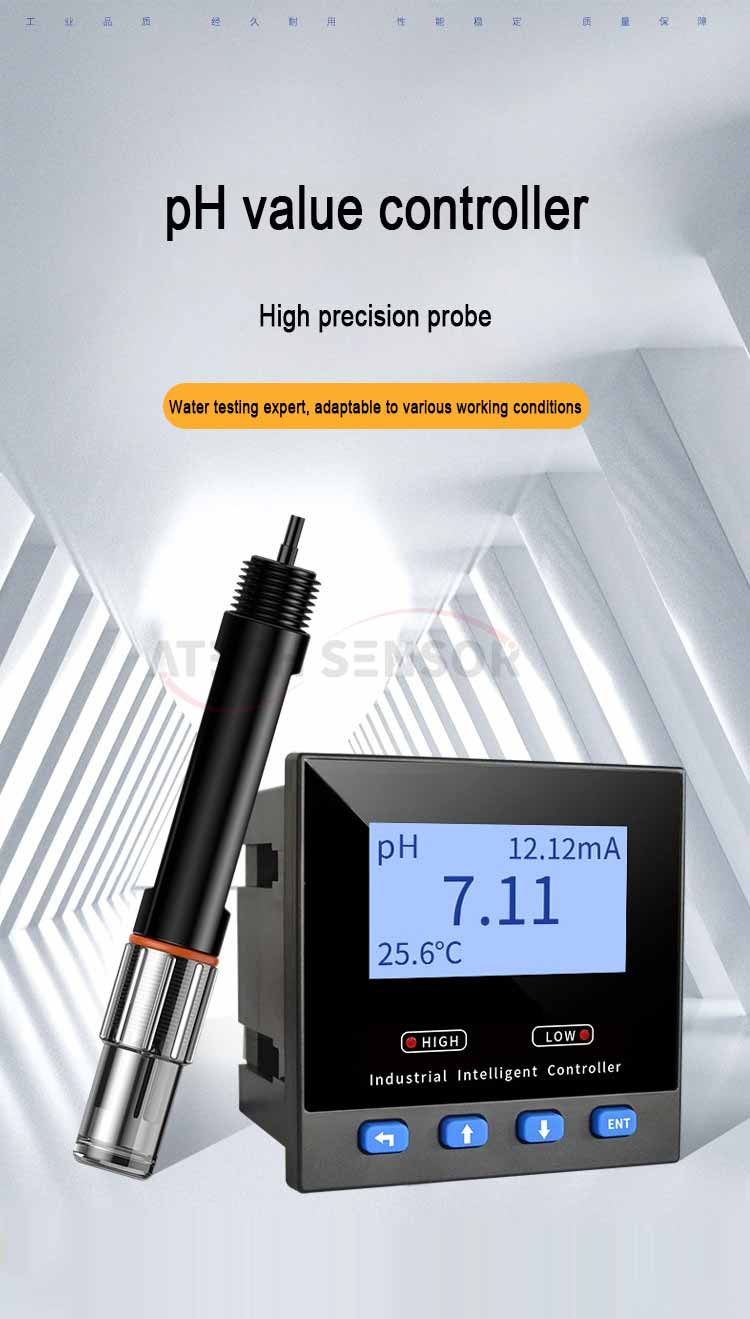

PH value automatic controller/automatic control system/automatic control device refers to a set of devices that automatically and accurately regulate the PH value (acidity and alkalinity) of the measured liquid. By setting the control range of the PH value to be controlled, the WK controller will automatically control the discharge of acid or alkali, so that the PH value of the measured liquid can be stabilized within a certain range, and it is fully automatically controlled.
Product Features

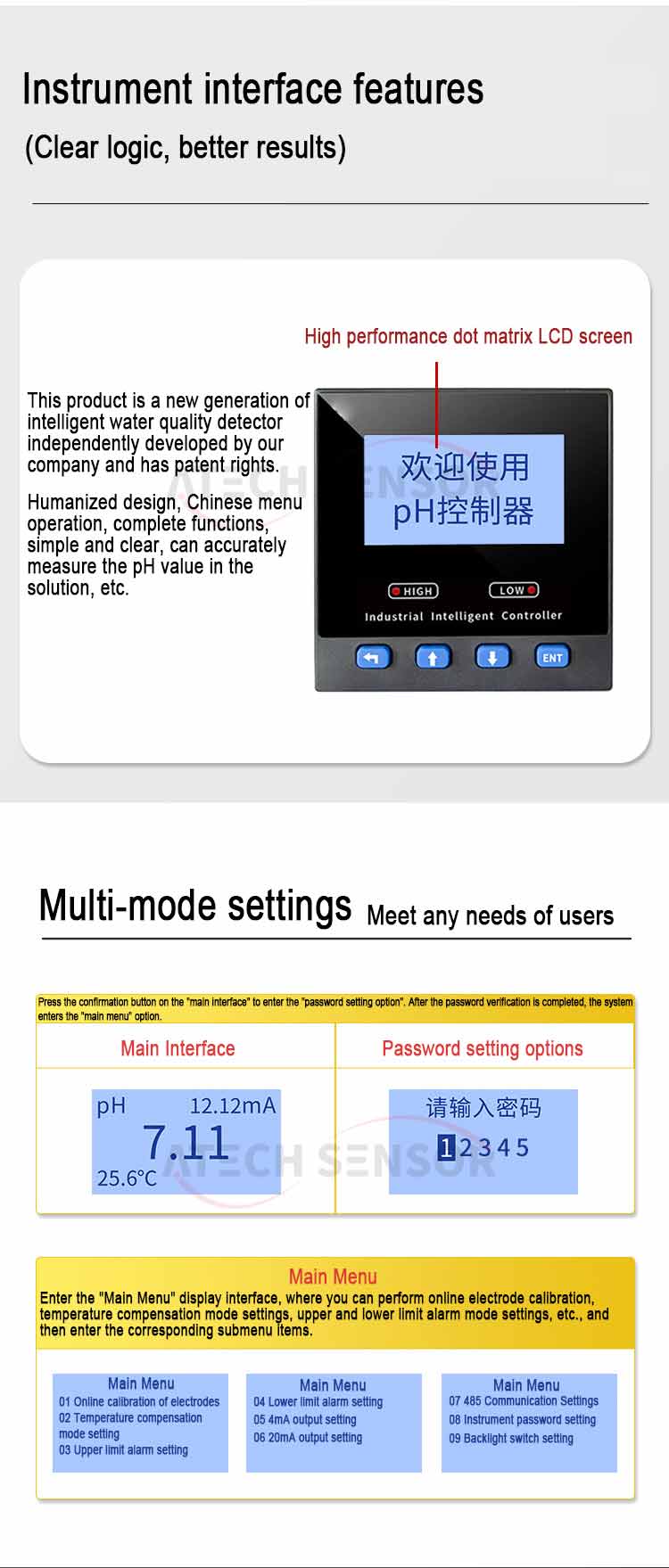

●High performance dot matrix LCD screen
●Stable performance
●Long lasting
●Wide range of applications

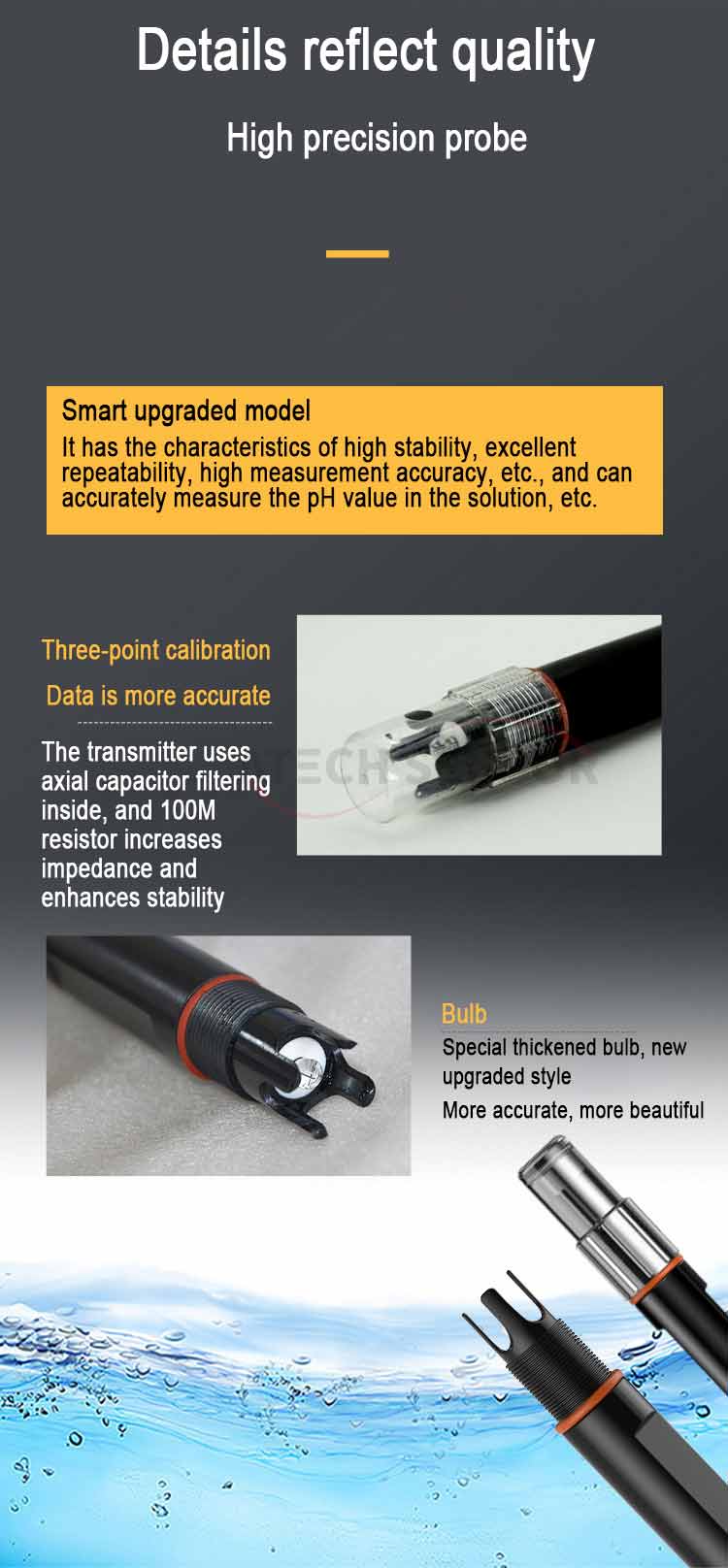

●High precision probe
●Special thickened bulb
Product Specification
| Measuring range | 0~14pH |
| Accuracy | ±0.02 |
| Resolution | 0.01 |
| Stability | ≤0.02/24h |
| pH standard solution | 4.00/6.86/9.18 |
| display method | 128*64 dot matrix LCD |
| Temperature compensation | 0~100℃; manual/automatic (NTC10K) |
| Output signal | Isolated RS485 (standard Modbus-RTU protocol) |
| Isolation 4~20mA, maximum loop resistance 750Ω | |
| Alarm output | One set of high and low limit alarm contacts (5A/250V AC) |
| Normally open contact relay | |
| Power supply | AC220V±10% 50Hz/60Hz (customizable) |
| Power consumption | 3W |
| Environmental conditions | Temperature 0~60℃; Humidity ≤95%RH |

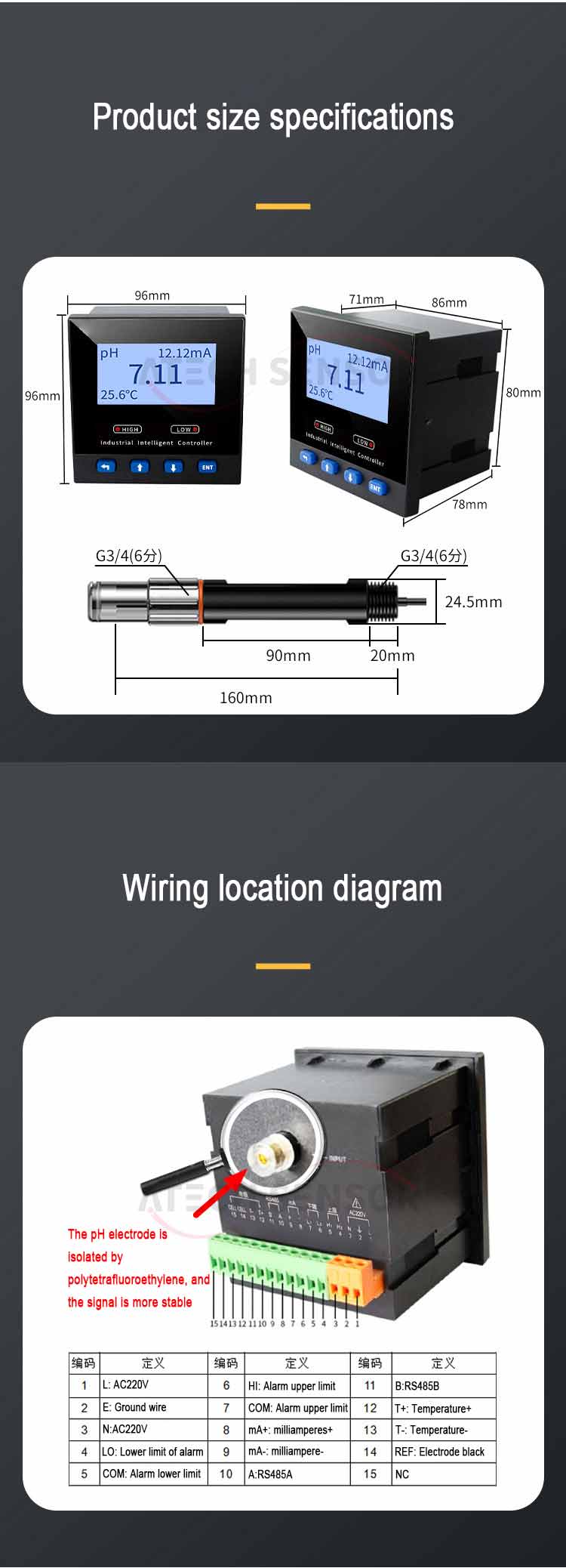

Product Dimensions
Product Features
●High performance dot matrix LCD screen
●Stable performance
●Long lasting
●Wide range of applications
●High precision probe
●Special thickened bulb
Product Dimensions
Product Specification
| Measuring range | 0~14pH |
| Accuracy | ±0.02 |
| Resolution | 0.01 |
| Stability | ≤0.02/24h |
| pH standard solution | 4.00/6.86/9.18 |
| display method | 128*64 dot matrix LCD |
| Temperature compensation | 0~100℃; manual/automatic (NTC10K) |
| Output signal | Isolated RS485 (standard Modbus-RTU protocol) |
| Isolation 4~20mA, maximum loop resistance 750Ω | |
| Alarm output | One set of high and low limit alarm contacts (5A/250V AC) |
| Normally open contact relay | |
| Power supply | AC220V±10% 50Hz/60Hz (customizable) |
| Power consumption | 3W |
| Environmental conditions | Temperature 0~60℃; Humidity ≤95%RH |
