Products Description
The insertion magnetic flowmeter is based on Faraday’s law.When measuring flow, a liquid flows through a magnetic field perpendicular to the direction of flow and induces a voltage proportional to the average flow rate (volume flow). Its induced voltage signal is detected through two electrodes that are in direct contact with the liquid. Voltage signal will be transmitted to the smart transmitter through a dedicated cable. The smart transmitter performs calculations based on the magnitude of the electric potential and the mathematical model of the electromagnetic flow. And converts it into a flow signal for on-site display. Including instantaneous and cumulative quantities can be display. Then output the standard 4 ~ 20MA and 1 ~ 5VDC signals to the flow secondary meter or DCS.
Faraday’s Formula
E is proportional to V x B x D where:
E = The voltage generated in a conductor
V = The velocity of the conductor
B = The magnetic field strength
D = The length of the conductor
Product Features
●For applications where the Insertion magnetic flow meter will be installed in pressurized pipes, use the optional Hot Tap Installation Hardware Kit.
It includes a branch outlet, close nipple and 1-1/4″ full port ball valve.

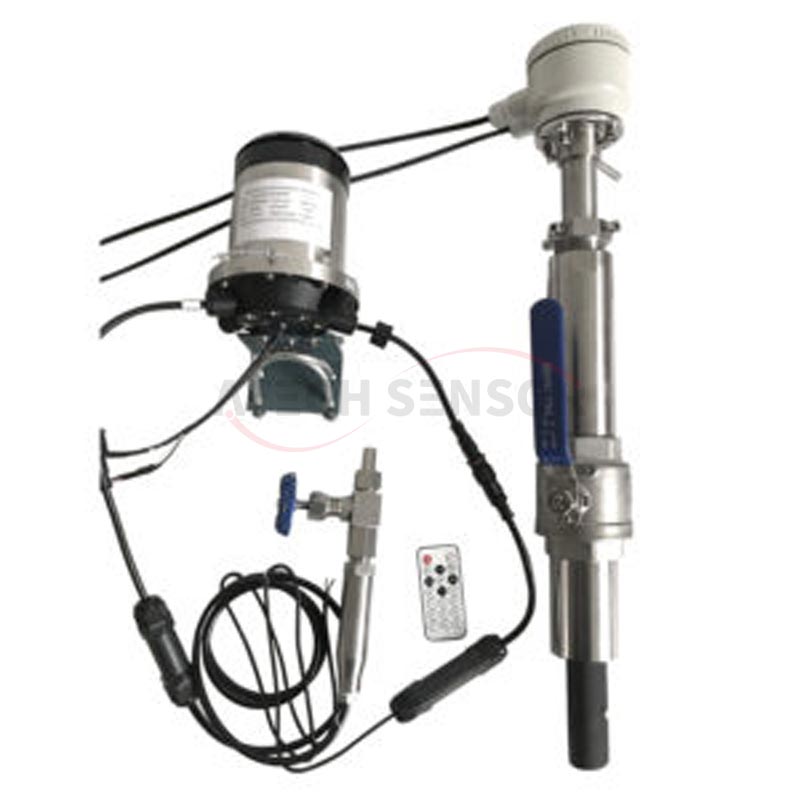

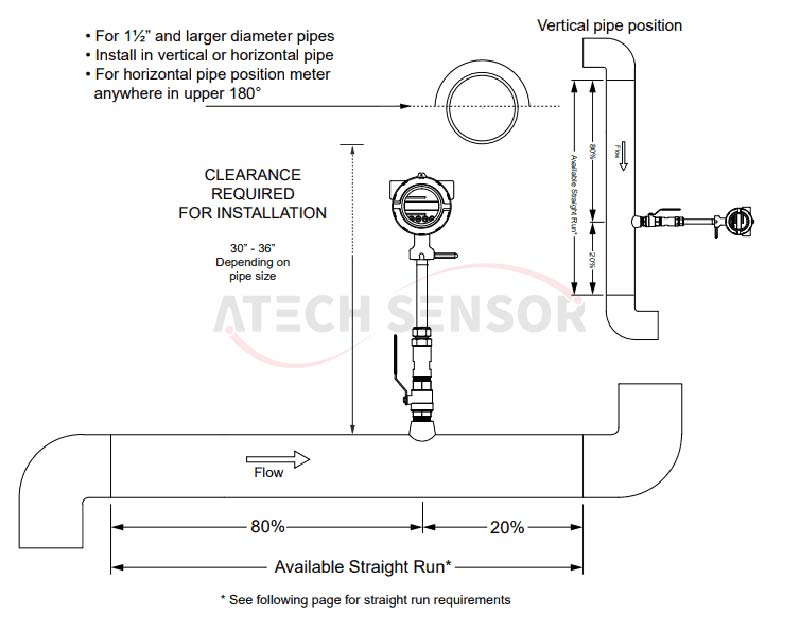

●The Insertion Magmeter installs in the pipe through a full port ball valve so the sensor can be easily retracted without having to shut down flow or drain the system. The insertion depth is adjustable according to the pipe diameter. An insertion depth gage is supplied with each flowmeter.
●The sensor structure of the electromagnetic flowmeter is relatively simple, and it is one of the flowmeters with the lowest energy consumption in the flowmeters. There are no moving parts in the measuring tube and no throttling part that blocks the flow of fluid and does not cause any additional pressure loss when the fluid passes through the flow meter.
Product Specification
| Transmitter | ||
| Working power supply | AC110V~AC245V | |
| DC24V | ||
| Output Signal | Analog output | 4-20mA |
| Pulse output | Hz | |
| Communication | RS-485Optional RS232, M-BUS, HART) | |
| Power consumption | 10W (matching power consumption) | |
| Usage environment | Ambient temperature | -20~+60ºC |
| Storage temperature | -20~+40ºC | |
| Ambient humidity | 5%~90% | |
| Display content | Instantaneous flow | 4 digits |
| Cumulative total | 8 digits | |
| Flow rate | 4 digits | |
| Protective level | IP65 | |
| Casing material | Silicon aluminum alloy | |
| Sensor | ||
| Measurable pipe diameter | DN100~DN3000 | |
| Probe material | 304 stainless steel | |
| Probe structure | Stainless steel/PTFE lining | |
| Electrode material | 316L stainless steel | |
| Medium temperature | One-piece | <70ºC |
| Pressure level | Split type | <120ºC |
| Connection method | ≤1.6MPa | |
| Protection level | Simple type | Flange connection |
| With ball valve insert type | With welded short pipe | |
| Large ball valve optional | Flange connection | |
| Protection level | One-piece type | IP65 |
| Split type | IP65 (IP68 submersible type) | |
| Accuracy level | Measurement error | |
| Flow rate | 0.5~10m/s | ±1.0~±1.5% of the range (calibration can reach ±1.0%) |
| 0.1~0.5m/s | ±1.5% of the range (40%~100% of the full range) | |
| 0~0.1m/s | ±2.0% of the range (40%~100% of the full range) | |
| If the user has special requirements for accuracy, the accuracy can reach ±1% of the measured value within a certain working range. | ||

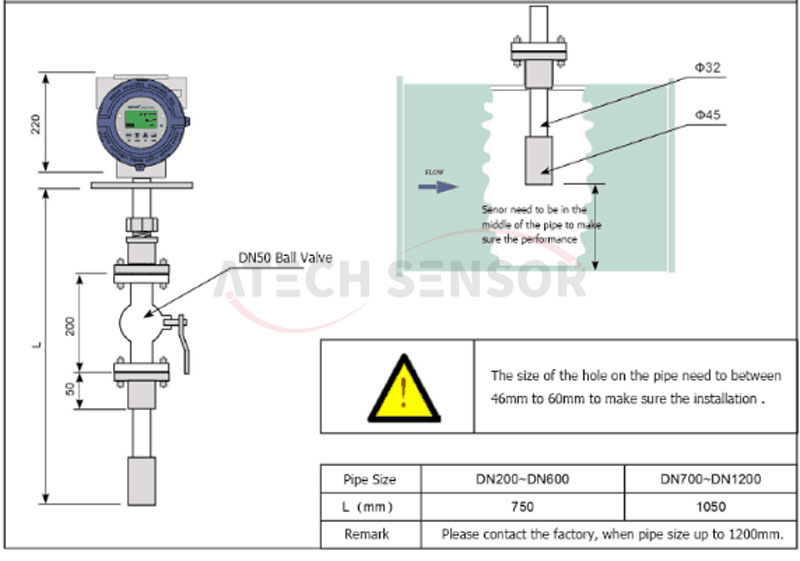

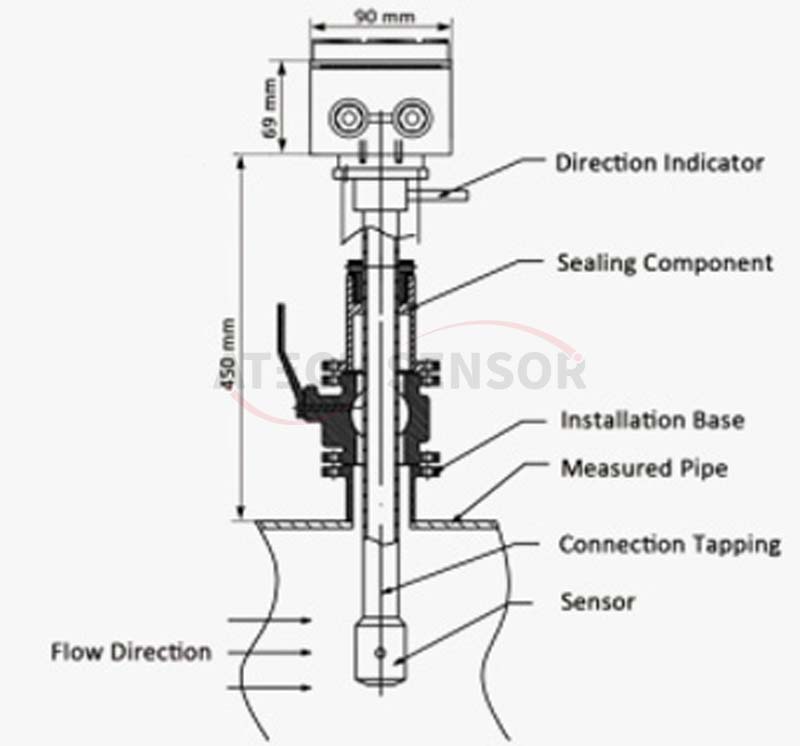

Product Dimensions
Product Features
●For applications where the Insertion magnetic flow meter will be installed in pressurized pipes, use the optional Hot Tap Installation Hardware Kit.
It includes a branch outlet, close nipple and 1-1/4″ full port ball valve.
●The Insertion Magmeter installs in the pipe through a full port ball valve so the sensor can be easily retracted without having to shut down flow or drain the system. The insertion depth is adjustable according to the pipe diameter. An insertion depth gage is supplied with each flowmeter.
●The sensor structure of the electromagnetic flowmeter is relatively simple, and it is one of the flowmeters with the lowest energy consumption in the flowmeters. There are no moving parts in the measuring tube and no throttling part that blocks the flow of fluid and does not cause any additional pressure loss when the fluid passes through the flow meter.

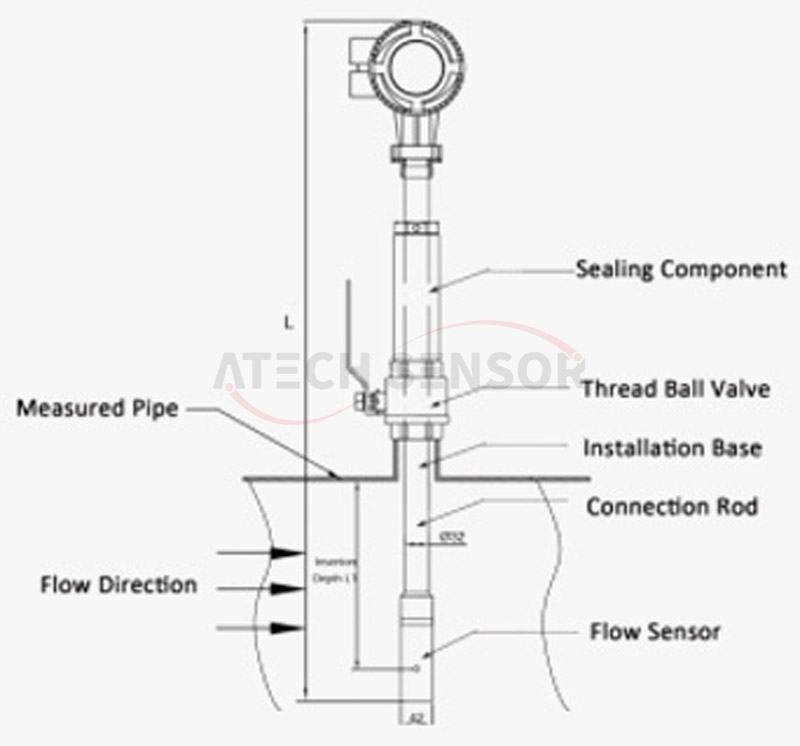

Product Dimensions
Product Specification
| Transmitter | ||
| Working power supply | AC110V~AC245V | |
| DC24V | ||
| Output Signal | Analog output | 4-20mA |
| Pulse output | Hz | |
| Communication | RS-485Optional RS232, M-BUS, HART) | |
| Power consumption | 10W (matching power consumption) | |
| Usage environment | Ambient temperature | -20~+60ºC |
| Storage temperature | -20~+40ºC | |
| Ambient humidity | 5%~90% | |
| Display content | Instantaneous flow | 4 digits |
| Cumulative total | 8 digits | |
| Flow rate | 4 digits | |
| Protective level | IP65 | |
| Casing material | Silicon aluminum alloy | |
| Sensor | ||
| Measurable pipe diameter | DN100~DN3000 | |
| Probe material | 304 stainless steel | |
| Probe structure | Stainless steel/PTFE lining | |
| Electrode material | 316L stainless steel | |
| Medium temperature | One-piece | <70ºC |
| Pressure level | Split type | <120ºC |
| Connection method | ≤1.6MPa | |
| Protection level | Simple type | Flange connection |
| With ball valve insert type | With welded short pipe | |
| Large ball valve optional | Flange connection | |
| Protection level | One-piece type | IP65 |
| Split type | IP65 (IP68 submersible type) | |
| Accuracy level | Measurement error | |
| Flow rate | 0.5~10m/s | ±1.0~±1.5% of the range (calibration can reach ±1.0%) |
| 0.1~0.5m/s | ±1.5% of the range (40%~100% of the full range) | |
| 0~0.1m/s | ±2.0% of the range (40%~100% of the full range) | |
| If the user has special requirements for accuracy, the accuracy can reach ±1% of the measured value within a certain working range. | ||
