Products Description

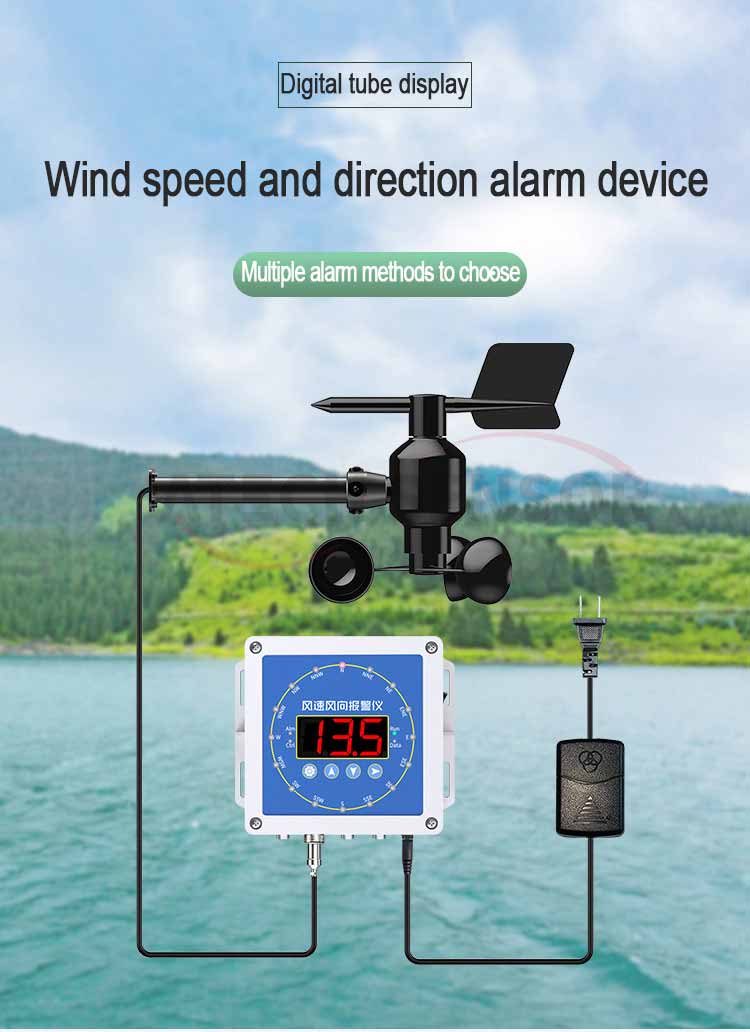

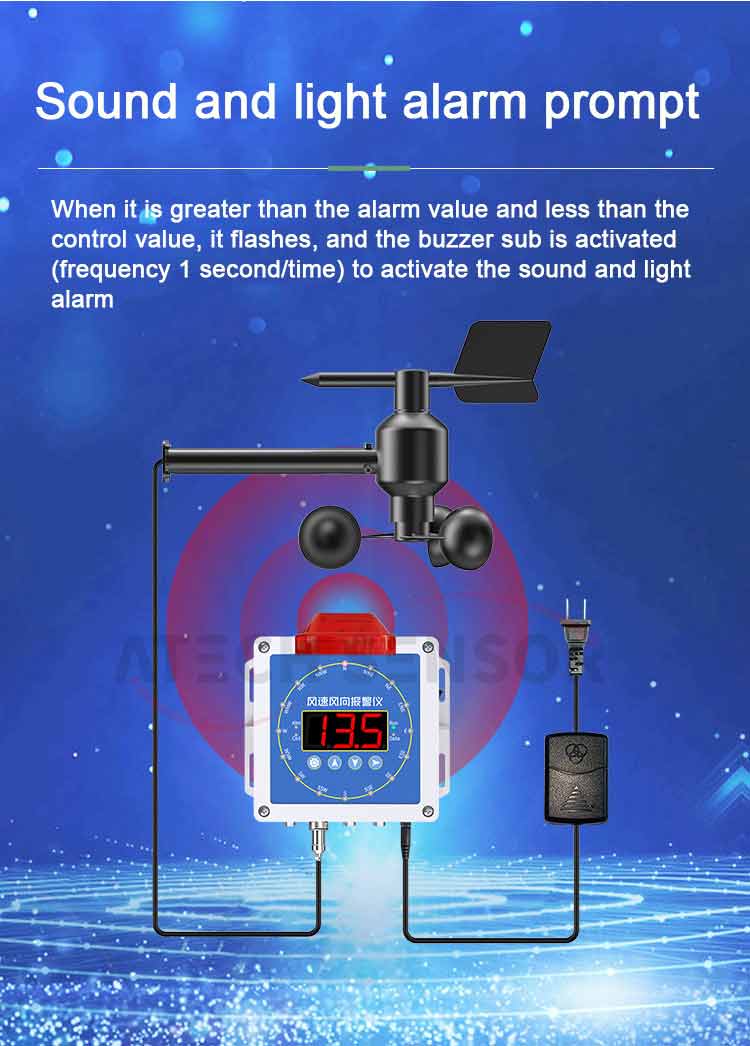

The wind speed and direction alarm instrument is composed of a microprocessor and a wind sensor with high dynamic characteristics, which can observe the instantaneous wind speed in the atmosphere. It has the functions of wind speed alarm setting and alarm output control. The wind speed and direction display adopts a high-brightness LED digital tube display, which has a long observation distance and is suitable for use in dim light and at night. The parameter setting adopts a graphic LCD display, and the human-machine interface is friendly; the wind speed alarm instrument has a built-in sound and light alarm. When the wind speed exceeds the limit, the alarm will emit a sound and light alarm to remind the operator to pay attention to safety, and at the same time generate a relay switch output.
Product Features
●Waterproof and anti-corrosion
●Data storage, stable transmission
●Small size and fast response speed
●Multiple output methods
●Ultra-clear LCD display
●Anti-interference design, high measurement accuracy
●Multiple alarm modes available

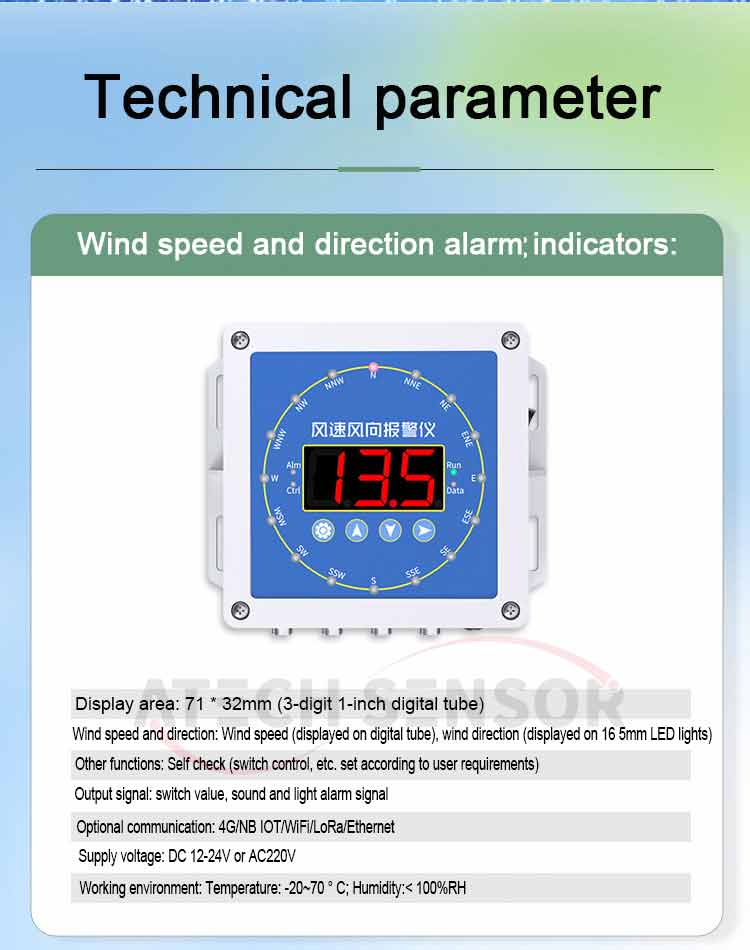

Product Specification

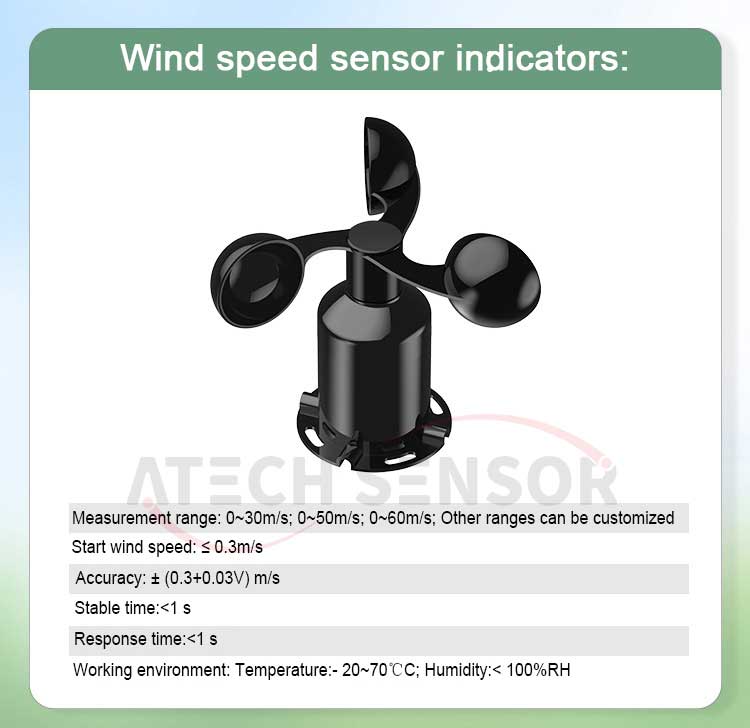

| Start wind speed | ≤0.3m/s |
| Accuracy | ±(0.3+0.03V)m/s,±1° |

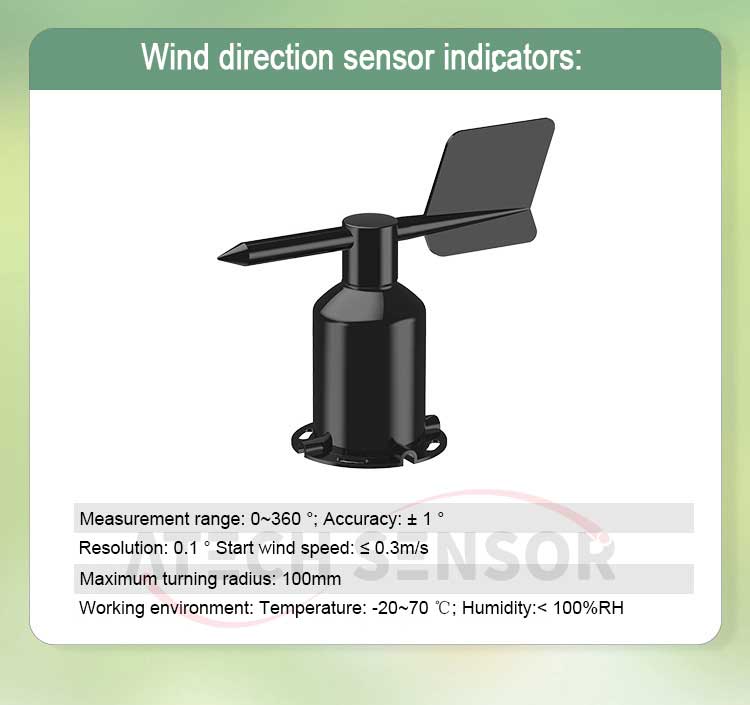

| Measuring range | 0~30m/s; 0~50m/s; 0~60m/s; other ranges can be customized, 0~360° |
| Work Environment | Temperature: -20~70℃; Humidity: <100%RH |
| Stabilization time | <1S |
| Response time | <1S |

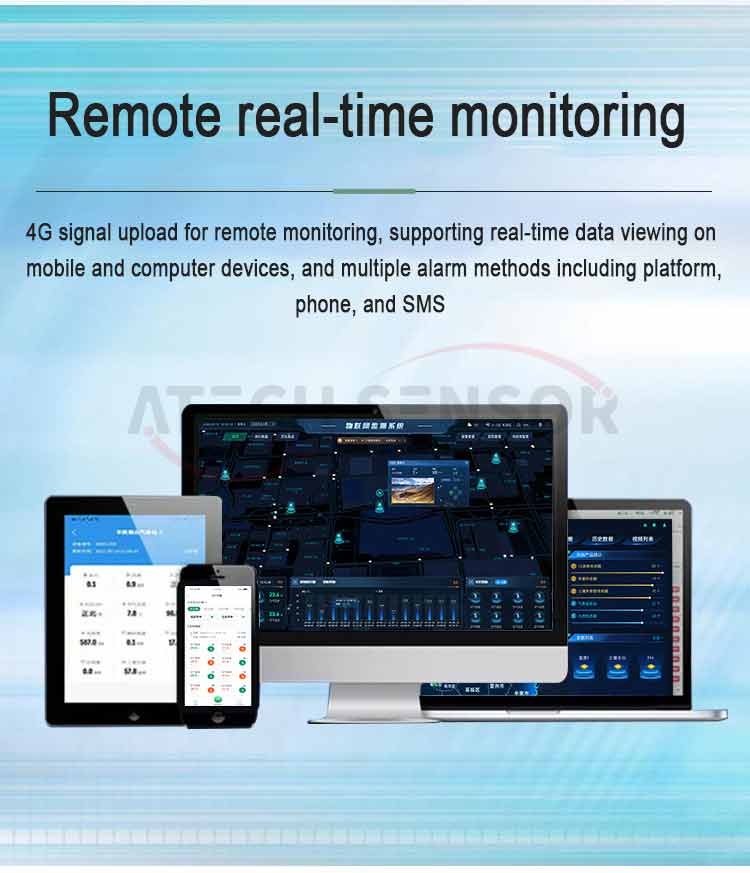

| Optional communication | 4G/NB-IOT/WiFi/LoRa/Ethernet |
| Supply voltage | DC12~24V or AC220V |
| Other Features | Self-test (switch control, etc. are set according to user requirements) |

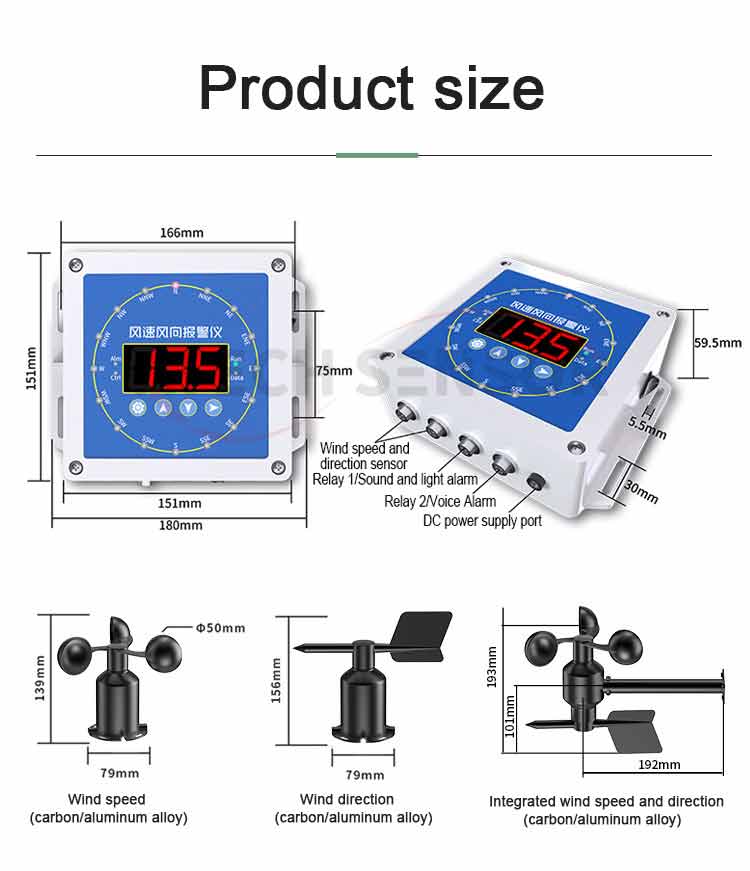

Product Dimensions
Product Features
●Waterproof and anti-corrosion
●Data storage, stable transmission
●Small size and fast response speed
●Multiple output methods
●Ultra-clear LCD display
●Anti-interference design, high measurement accuracy
●Multiple alarm modes available
Product Dimensions
Product Specification
| Start wind speed | ≤0.3m/s |
| Accuracy | ±(0.3+0.03V)m/s,±1° |
| Measuring range | 0~30m/s; 0~50m/s; 0~60m/s; other ranges can be customized, 0~360° |
| Work Environment | Temperature: -20~70℃; Humidity: <100%RH |
| Stabilization time | <1S |
| Response time | <1S |
| Optional communication | 4G/NB-IOT/WiFi/LoRa/Ethernet |
| Supply voltage | DC12~24V or AC220V |
| Other Features | Self-test (switch control, etc. are set according to user requirements) |
