Products Description
The main function of the ozone sensor is to monitor and detect the ozone concentration in the air. As an important component in the atmosphere, ozone is beneficial to the high-altitude stratosphere to protect the earth from ultraviolet damage, but when the concentration near the ground is too high, it will cause harm to human health, ecological environment and crop growth. Therefore, accurate monitoring of ozone concentration is of great significance to environmental protection, human health and agricultural production.
Product Features
●High sensitivity: Ozone sensors are usually highly sensitive and can detect very low concentrations of ozone.
●Fast response: These sensors have a fast response speed and can quickly react to changes in ozone concentration in the environment.
●High accuracy: Ozone sensors are usually highly accurate and can provide accurate ozone concentration measurements.
●Strong stability: Good ozone sensors usually have good stability and can maintain stable performance over long periods of use.
●Durability: Ozone sensors are usually designed to be durable and can be used for long periods of time in harsh working environments without damage.
Product Specification
| Power supply | 10~30V DC |
| Average power consumption | 0.1W |
| Output signal | 485(ModBus-RTU) |
| Temperature measurement range | -40℃~80℃ |
| Temperature accuracy | ±0.5℃(25℃) |
| Humidity measurement range | 0~100%RH |
| Humidity accuracy | ±3%RH(60%RH,25℃) |
| Ozone measurement range | 0~20ppm |
| Operating temperature | -10℃~55℃ |
| Operating humidity | 15%RH-90%RH (no condensation) |
| Repeatability | ≤2% |
| Stability | ≤7% signal value/year |
| Zero drift | ±1%FS |

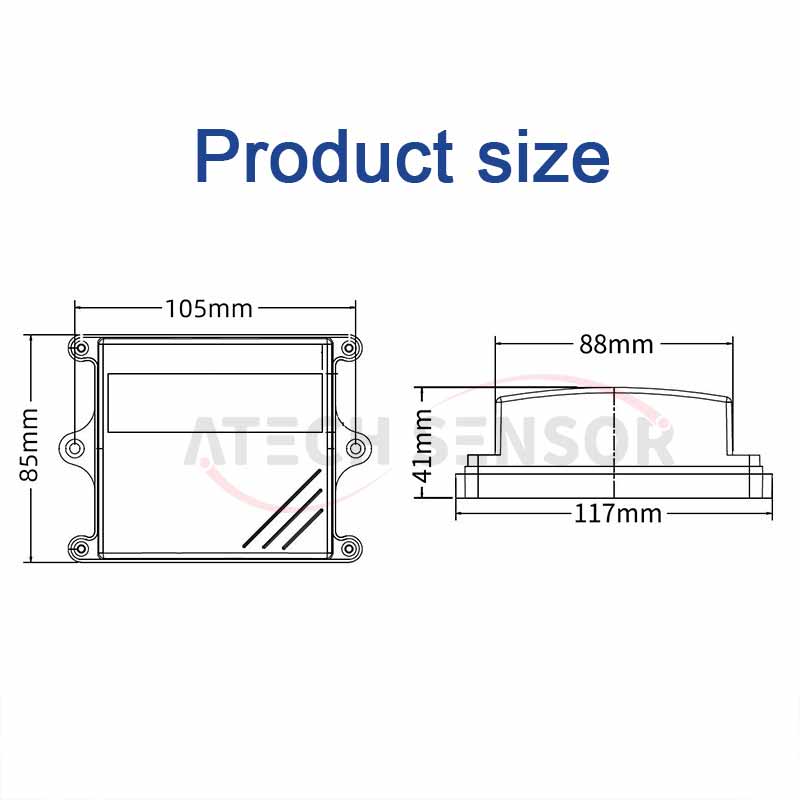

Product Dimensions
Product Features
●High sensitivity: Ozone sensors are usually highly sensitive and can detect very low concentrations of ozone.
●Fast response: These sensors have a fast response speed and can quickly react to changes in ozone concentration in the environment.
●High accuracy: Ozone sensors are usually highly accurate and can provide accurate ozone concentration measurements.
●Strong stability: Good ozone sensors usually have good stability and can maintain stable performance over long periods of use.
●Durability: Ozone sensors are usually designed to be durable and can be used for long periods of time in harsh working environments without damage.
Product Dimensions
Product Specification
| Power supply | 10~30V DC |
| Average power consumption | 0.1W |
| Output signal | 485(ModBus-RTU) |
| Temperature measurement range | -40℃~80℃ |
| Temperature accuracy | ±0.5℃(25℃) |
| Humidity measurement range | 0~100%RH |
| Humidity accuracy | ±3%RH(60%RH,25℃) |
| Ozone measurement range | 0~20ppm |
| Operating temperature | -10℃~55℃ |
| Operating humidity | 15%RH-90%RH (no condensation) |
| Repeatability | ≤2% |
| Stability | ≤7% signal value/year |
| Zero drift | ±1%FS |
