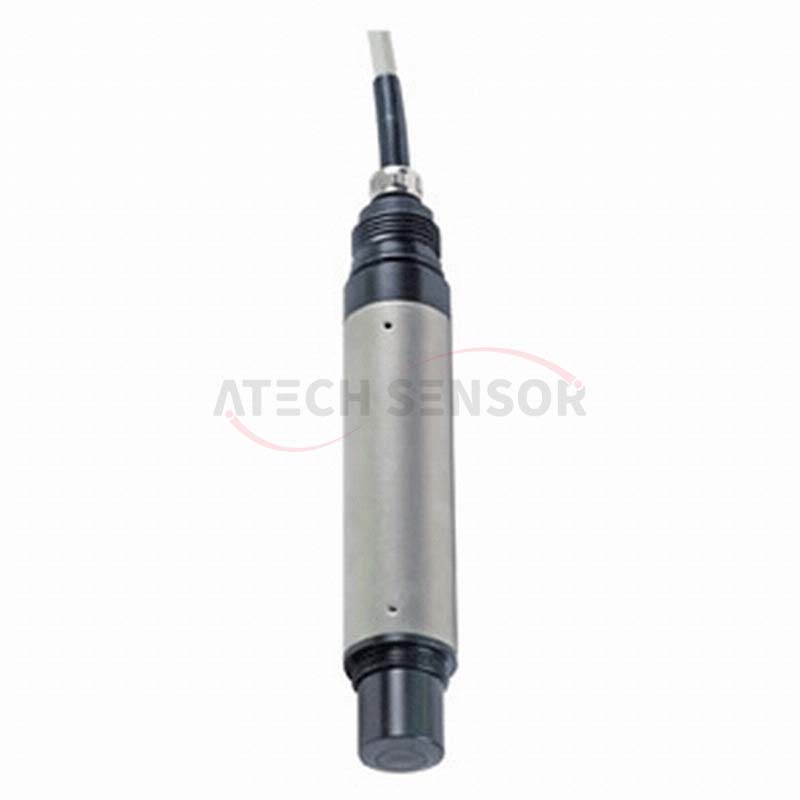

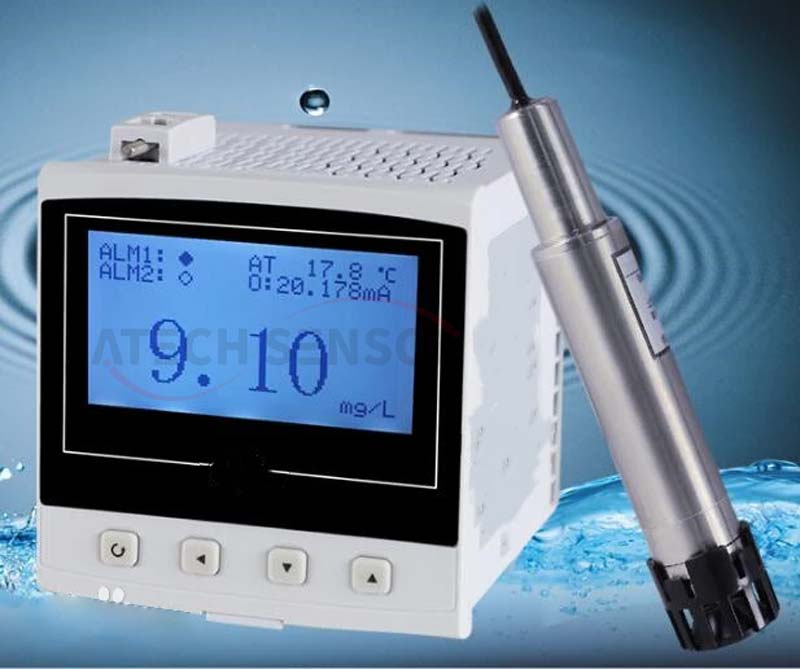

A dissolved oxygen sensor is a sensing device used to measure the amount of oxygen dissolved in water.
Application
1. Measurement and regulation of oxygen in activated sludge tanks in sewage treatment plants to achieve high efficiency in the biodegradation process
2. Hydrological monitoring measures oxygen content in rivers, lakes, and oceans to indicate water quality
3. Water treatment
Oxygen content measurement, such as monitoring status in drinking water (oxygen enrichment/corrosion prevention, etc.)
4. Fish ponds
Oxygen content measurement and regulation to maintain optimal ecological and growth conditions
Technical Parameters
1. Measuring range: 0~20mg/L (0~20ppm), 0~200%SAT
2. Repeatability: +/-0.5%FS
3. T90: 60 seconds
4. Maximum pressure resistance: 10bar
5. Material: Body: 316 stainless steel, fluorescent layer cap: POM, fluorescent layer: silicon
6. Connecting screw: G1
7. Cable up to: 100m
8. Protection grade: IP68
9. Operating temperature: -5~50C
10. Electromagnetic compatibility: Comply with EN 61326:1997/A1:1998
Equipment features
1. Optical technology with low maintenance and good practicality
2.Sensor with digital signal processing:
Calibration data stored in the sensor
High EMC protection level due to digital communication of the transmitter
3.Long maintenance intervals and good long-term stability
4. Intelligent self-monitoring function guarantees measured values
5.No flow requirement - can measure in still water
