Products Description

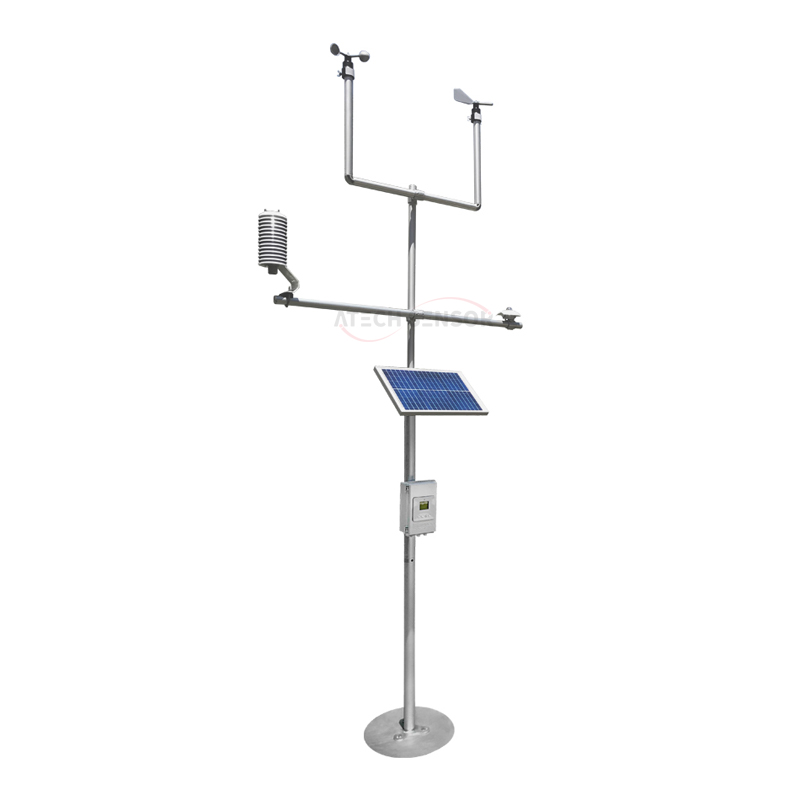

The automatic weather station (AWS) is designed to monitor the weather conditions in all kind of professional applications. The station consists of a high capacity datalogger that serves as the hub of the whole system, supplying each of the sensors individually and capturing the data they provide for subsequent storage, download, processing and monitoring through the included software. The datalogger also allows carrying out statistical calculations with the data registered by the sensors. The LCD display shows different system parameters, such as the active channels, the memory configuration, the battery charge, etc.
Its outstanding versatility makes it ideal for all kind of applications in many fields, the main ones being:
●Meteorology and climatology.
●Hydrology.
●Ports and marinas.
●Stadiums and sports centers.
●Universities and investigation centers.
●Wind, solar and mining farms.
●Railway safety.
●Civil protection.
●Military applications.
Product Features
●The station features a compact design and is entirely made of corrosion resistant materials to ensure high resistance to weathering. The weatherproof enclosure features a double seal to ensure maximum protection of the electronics from dust, moisture and other external agents. The optional heater of specific sensors is activated automatically at temperatures around 4ºC, preventing the accumulation of ice and snow and allowing precise measurements at low temperatures or during and after a snowfall.
●The station features several communication options and allows sending data to the Internet from remote locations that do not have their own communication system or staff on site. Additionally, it can be powered from a solar panel and a battery for a total autonomy.
Product Specification
| Power supply voltage | 10 to 30 VDC |
| Power consumption | 350 mA (max.) |
| Input signal | 12 x analog, 5 x digital, 5 x serial (RS-232, RS-422 and RS-485) and SDI-12 (expandable) |
| Output signal | RS-232, RS-422, RS-485, USB, Ethernet, Wi-Fi and 4G |
| Working temperature | -30ºC to 70ºC |
| Material | gray or white-coated steel |
| Dimensions | 300 x 400 x 220 mm |
Product Dimensions
Product Features
●The station features a compact design and is entirely made of corrosion resistant materials to ensure high resistance to weathering. The weatherproof enclosure features a double seal to ensure maximum protection of the electronics from dust, moisture and other external agents. The optional heater of specific sensors is activated automatically at temperatures around 4ºC, preventing the accumulation of ice and snow and allowing precise measurements at low temperatures or during and after a snowfall.
●The station features several communication options and allows sending data to the Internet from remote locations that do not have their own communication system or staff on site. Additionally, it can be powered from a solar panel and a battery for a total autonomy.
Product Dimensions
Product Specification
| Power supply voltage | 10 to 30 VDC |
| Power consumption | 350 mA (max.) |
| Input signal | 12 x analog, 5 x digital, 5 x serial (RS-232, RS-422 and RS-485) and SDI-12 (expandable) |
| Output signal | RS-232, RS-422, RS-485, USB, Ethernet, Wi-Fi and 4G |
| Working temperature | -30ºC to 70ºC |
| Material | gray or white-coated steel |
| Dimensions | 300 x 400 x 220 mm |
