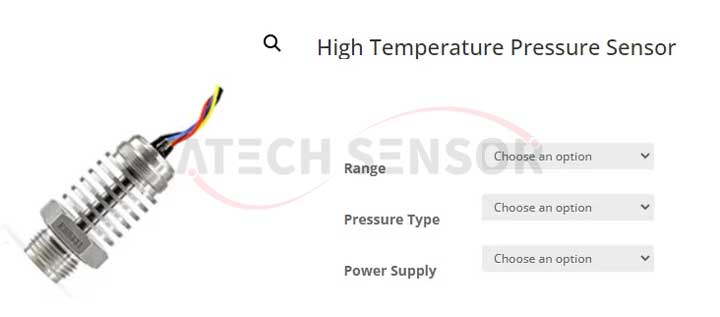

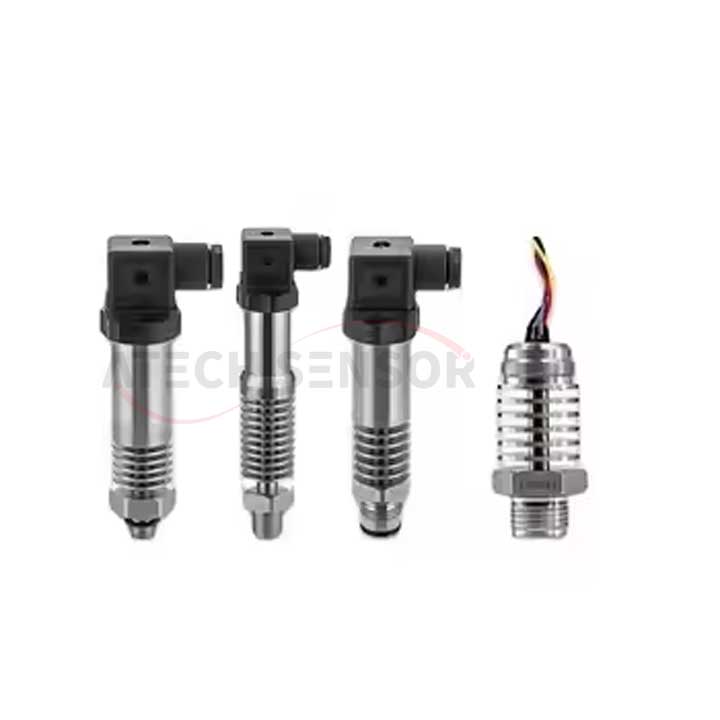

Products Description
High Temperature Pressure Sensor uses radiator to resist 150℃ temperature, the element use high sensitivity piezoresistive silicon die as sensing component, which is protected against ambient influences by housing sealed with a concentrically corrugated diaphragm.
Inside the housing, the filled silicone oil assures the measured pressure can be transmitted onto silicon die and then transform the pressure to electric signal.
High Temperature Pressure Sensor is available pressure ranges from 35Kpa to 10MPa.
Application
● Industrial process control
● Level measurement
● Gas,liquid pressure measurement
● Pressure checking meter
● Pressure calibrator
● Liquid pressure system and switch
● Cooling equipment & A/C system
● Aviation and navigation inspection
Product Features
● Pressure range 0.035Mpa~10MPa
● Gauge,Absolute,Sealed gauge
● Constant Current/Voltage power supply
● Isolated construction,measure various media
● High working Temperature: -40 ~ 150℃
● Full Stainless Steel 316
● Wide temperature compensation-10℃ ~ 80℃
● Long-term stability ±0.2%FS/year

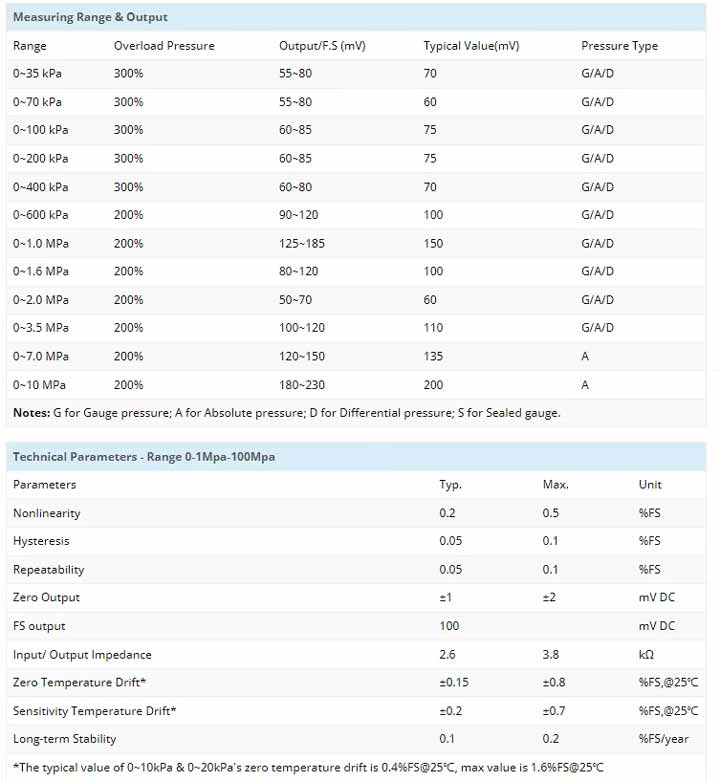

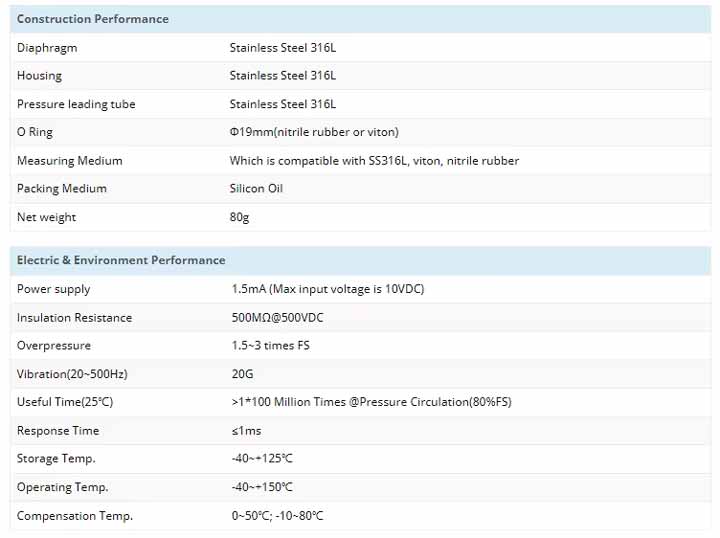

Product Specification
Product Dimensions
Product Features
● Pressure range 0.035Mpa~10MPa
● Gauge,Absolute,Sealed gauge
● Constant Current/Voltage power supply
● Isolated construction,measure various media
● High working Temperature: -40 ~ 150℃
● Full Stainless Steel 316
● Wide temperature compensation-10℃ ~ 80℃
● Long-term stability ±0.2%FS/year
Product Dimensions

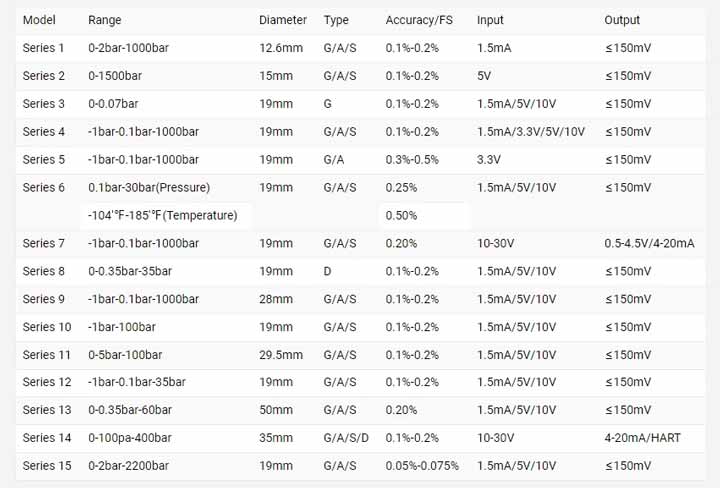

Product Specification
