Products Description

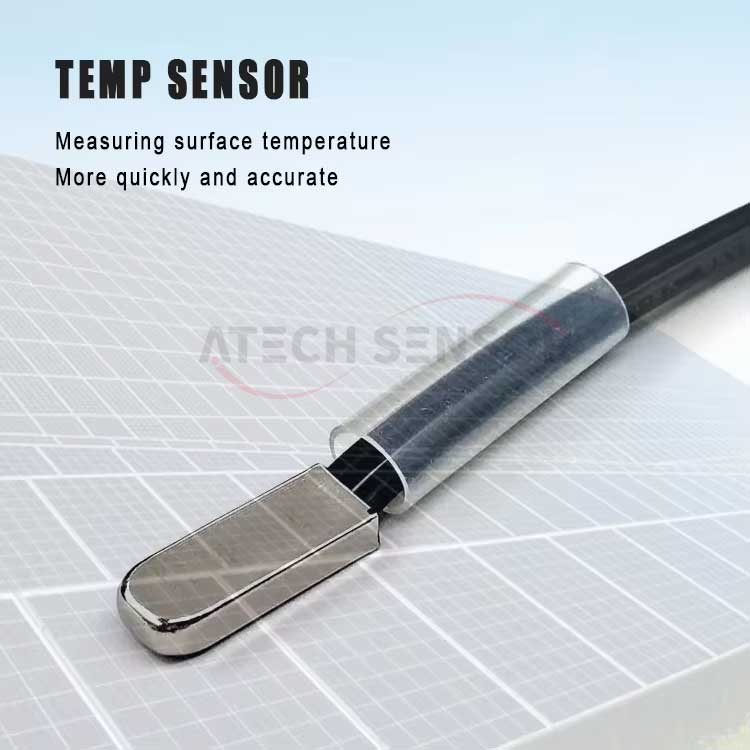

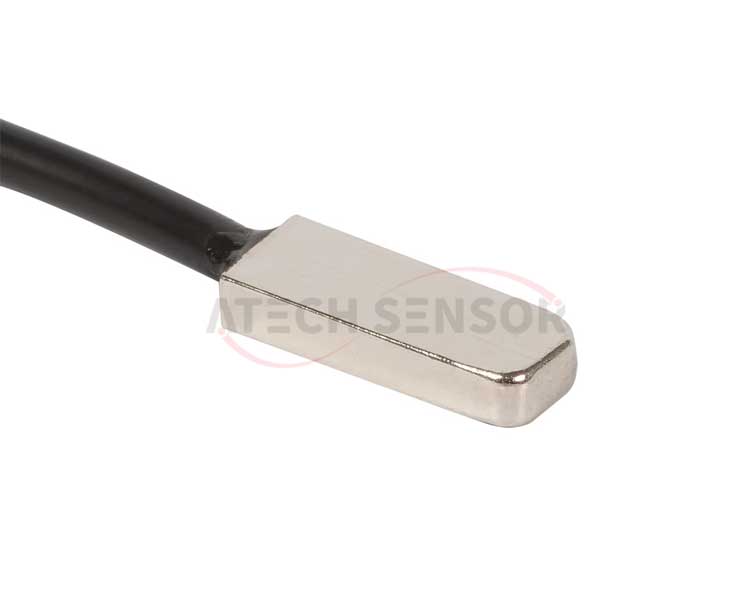

AT01 Paste Type Temperature Sensor adopts high precision thermistor as the sensing component. It is with high accuracy, good stability. The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally. AT01 Past type temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and good anti- interference ability.
Application
● Weather monitoring stations
● Contact temperature measurement
● Ports
● Solar and wind power generation
● Mobile weather monitoring vehicle
Product Features
● Strong corrosion resistant ability
● High accuracy
● Wide range, good stability
● Various output signals optional
● Easy Installation
Product Specification
Item | Specifications | |||
Range | -50-+100℃, -20-+50℃ | |||
Supply Voltage | 5VDC,12-24VDC | |||
Accuracy | ±0.5℃ | |||
Output | 4-20mA | 0-5V | RS485(MODBUS) | PT100/PT1000 |
Load Capacity | ≤250Ω | ≥1K |
|
|
Ingress Protection | IP65 | |||
Operating Temperature | Probe: -50℃-+120℃ Conversion module:-40℃-+85℃ | |||
Weight(unpacked) | Probe: 85g | |||
Transmitter module dimension | 98*66*49mm or D25*120mm | |||
Storage Condition | 10℃-60℃@20%-90%RH | |||
Surface mount adhesive | Attached | |||
Product Dimensions
Product Features
● Strong corrosion resistant ability
● High accuracy
● Wide range, good stability
● Various output signals optional
● Easy Installation
Product Dimensions
Product Specification
Item | Specifications | |||
Range | -50-+100℃, -20-+50℃ | |||
Supply Voltage | 5VDC,12-24VDC | |||
Accuracy | ±0.5℃ | |||
Output | 4-20mA | 0-5V | RS485(MODBUS) | PT100/PT1000 |
Load Capacity | ≤250Ω | ≥1K |
|
|
Ingress Protection | IP65 | |||
Operating Temperature | Probe: -50℃-+120℃ Conversion module:-40℃-+85℃ | |||
Weight(unpacked) | Probe: 85g | |||
Transmitter module dimension | 98*66*49mm or D25*120mm | |||
Storage Condition | 10℃-60℃@20%-90%RH | |||
Surface mount adhesive | Attached | |||
