Products Description

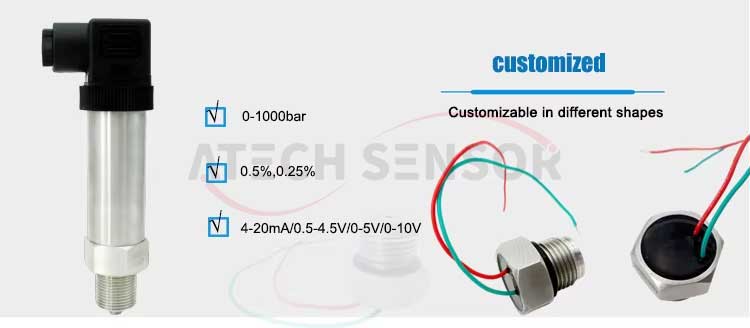

PT201 series of pressure transmitter is a standard and most popular transmitter applied in air and liquid pressure measuing are cost effective products featuring mass production and low cost.

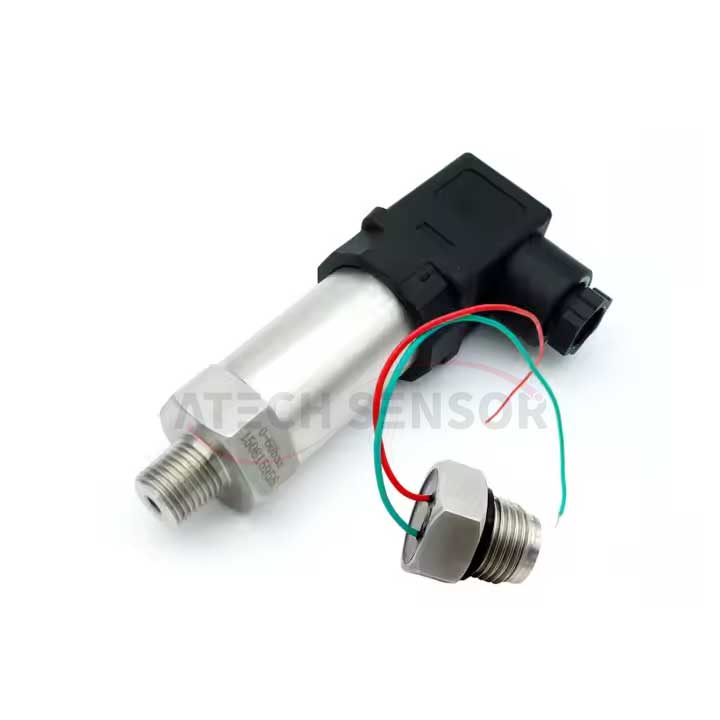

The products are made of stainless steel. the pressure sensing elements chips are selected from well-known international brands. Special circuits are adopted to zero and full range conveniently. The products are approved with CE, intrinsically safe, and explosion proof certificates. Customized structures and output formats can be designed according to special application requirements.
Applications
● Automobile, Compressor and Refrigeration Industry-Engineering machinery
● Pressure control and monitor
● Water treatment system
● Hydraulic and Pneumatics
● HAVC and BAS Control
● Pump, fitness equipment,household appliances
● Factory Automation
● Fluid Control and Instrumentation Systems

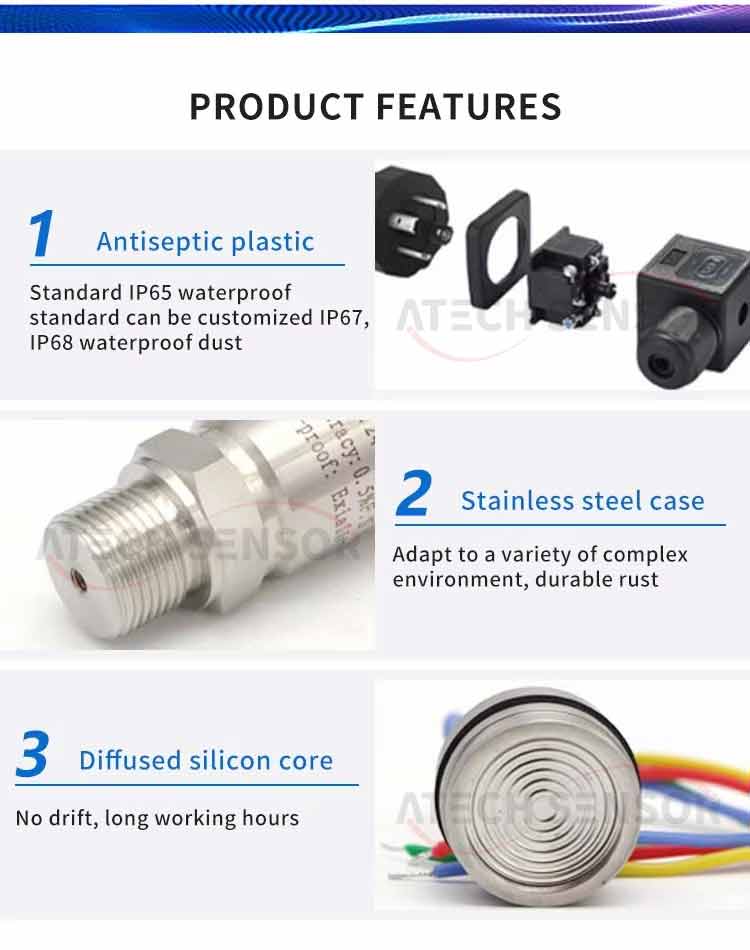

Product Features
● Antiseptic plastic
Standard IP65 waterproof standard can be customized IP67,IP68 waterproof dust
● Stainless steel case
Adapt to a variety of complex environment, durable rust
● Diffused silicon core
No drift, long working hours

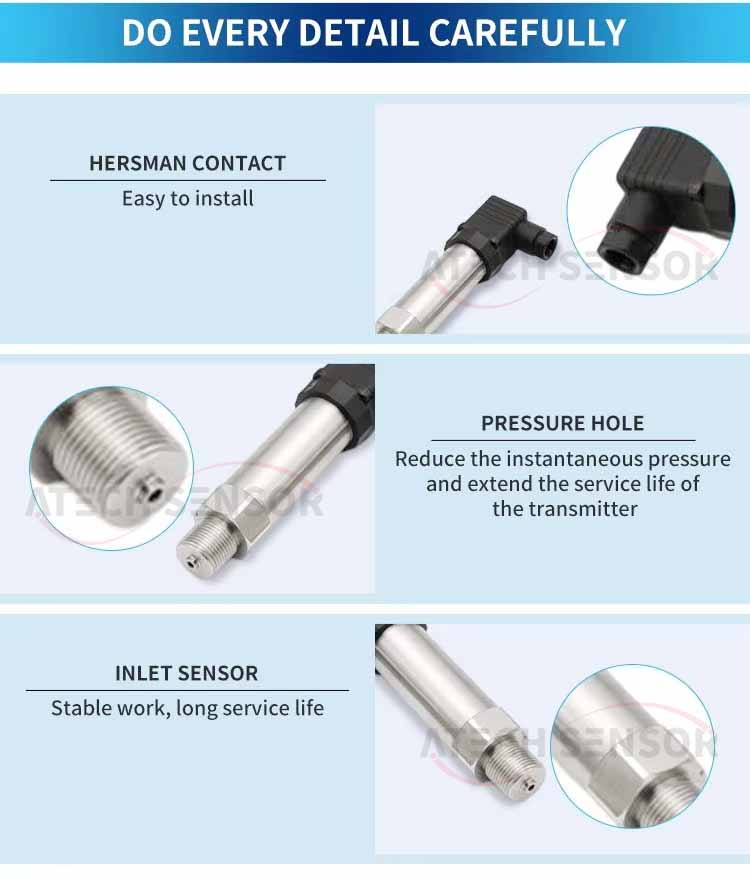

● Hirschman contact
Easy to install
● Pressure hole
Reduce the instantaneous pressure and extend the service life of the transmitter
● Inlet sensor
Stable work,long service life
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
Product Dimensions
Product Features
● Antiseptic plastic
Standard IP65 waterproof standard can be customized IP67,IP68 waterproof dust
● Stainless steel case
Adapt to a variety of complex environment, durable rust
● Diffused silicon core
No drift, long working hours
● Hirschman contact
Easy to install
● Pressure hole
Reduce the instantaneous pressure and extend the service life of the transmitter
● Inlet sensor
Stable work,long service life
Product Dimensions
Product Specification
| pressure medium | gas liquid compatible stainless steel |
| pressure ranges | 0~5...400bar |
| overload pressure | 150%FS |
| Broken Pressure | 250%FS |
| output signal | 4~20mA, 0.5~4.5V,0-10V,0-2V,4.5-5.5v |
| accuracy | 1%FS (standard) 2%FS 0.5%FS |
| load resistance | RL = (U-10)/0.02(Ω) (4~20mA current output), >100KΩ (voltage output) |
| long term stability | 0.5%FS/year |
| supply voltage | 10~30V |
| compensated temperature range | -10~80°c |
| operating temperature range | -40~+120°c |
| storage temperature range | -40~+140°c |
| insulation resistance | >100MΩ@ 50VDC |
| response time | 10ms |
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 |
| process connection | G1/4 or others |
| electrical connection | DIN 43650 or others |
| material of wetted part | 1Cr18Ni9Ti |
| material of pressure membrane | ceramic |
| material of housing | 1Cr18Ni9Ti |
| weight | 88g |
