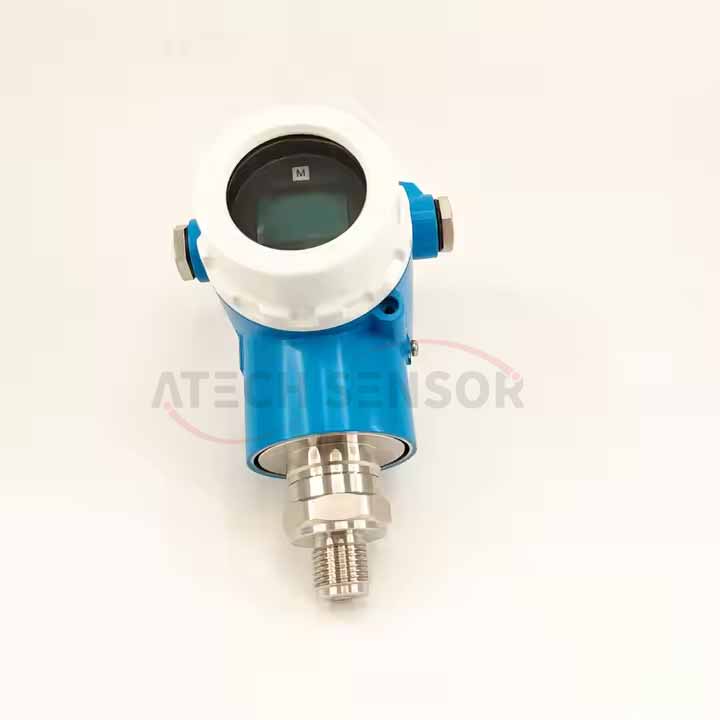

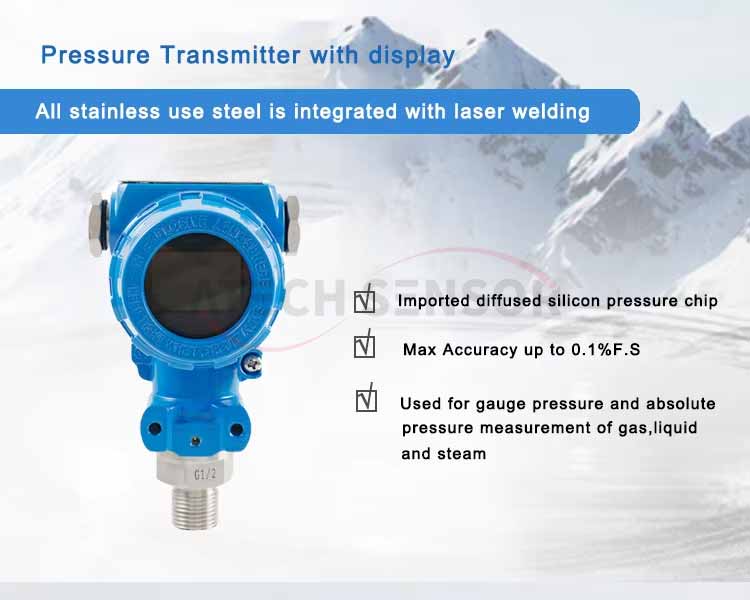

Products Description
There is basically no difference between explosion-proof pressure sensors and ordinary pressure sensors in terms of materials and functions. In terms of structure, the main feature of explosion-proof pressure sensors is that the shell adopts an isolated explosion-proof design and a stainless steel fully sealed welded structure. The circuit design adopts an intrinsically safe explosion-proof design, which requires the circuit to adopt a low voltage, small capacitance, and small inductance design to reduce the circuit's charge storage capacity, thereby reducing energy.
Product Features
● Reliable operation
● Easy installation and use
● High performance-price ratio
● Stable performance
● High explosion-proof grade
Product Specification
| Pressure range | -1~0~0.1bar...1000 bar optional |
| Output | 4~20mA,0~5V,1~5V,0-10V |
| Power supply | 7~30V/12~30Vdc/15-30Vdc |
| Pressure port | G1/4",1/8"NPT, M20*1.5 or by customized |
| Accuracy | ≤±0.5%F.S,≤±0.25%F.S (Customized) |
| Working Temp | -40°C~+85°C |
| CompensationTemp | 0°C~50°C(standard) |
| Pressure Type | Gauge,Absolute,Negative,SealingPressure |
| Zero Temp Drift | 0.03%FS/°C(≤100kPa),0.02%FS/°C(>100kPa) |
| Safe Overload | 200%F.S |
| Burst Overload | 300%F.S |
| Filling oil | Silicon oil(standard);Fluorocarbon oil (Oxygen Services) |
| Response time | ≤10ms |
| Long-term Stability | ± 0.01% FS / year |
| Certificate | CE,Exiall CT6 Ga ,ATEX,RoHS |
Product Dimensions
Product Features
● Reliable operation
● Easy installation and use
● High performance-price ratio
● Stable performance
● High explosion-proof grade
Product Dimensions
Product Specification
| Pressure range | -1~0~0.1bar...1000 bar optional |
| Output | 4~20mA,0~5V,1~5V,0-10V |
| Power supply | 7~30V/12~30Vdc/15-30Vdc |
| Pressure port | G1/4",1/8"NPT, M20*1.5 or by customized |
| Accuracy | ≤±0.5%F.S,≤±0.25%F.S (Customized) |
| Working Temp | -40°C~+85°C |
| CompensationTemp | 0°C~50°C(standard) |
| Pressure Type | Gauge,Absolute,Negative,SealingPressure |
| Zero Temp Drift | 0.03%FS/°C(≤100kPa),0.02%FS/°C(>100kPa) |
| Safe Overload | 200%F.S |
| Burst Overload | 300%F.S |
| Filling oil | Silicon oil(standard);Fluorocarbon oil (Oxygen Services) |
| Response time | ≤10ms |
| Long-term Stability | ± 0.01% FS / year |
| Certificate | CE,Exiall CT6 Ga ,ATEX,RoHS |
