Products Description

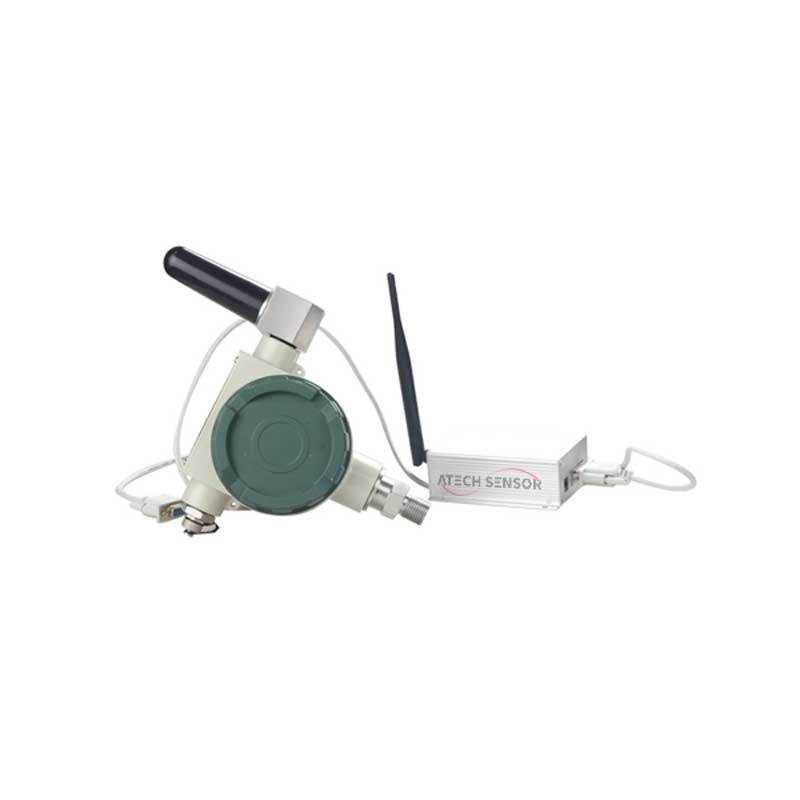

The wireless data transceiver terminal is mounted on the outside of the tank. It is connected to level sensor by communication cable. It is used to collect level height detected by level sensor regularly, and transmission those data into software of PC server comprehensive monitoring software by GPRS/GSM, then those data can be checked and analyzed by customer.

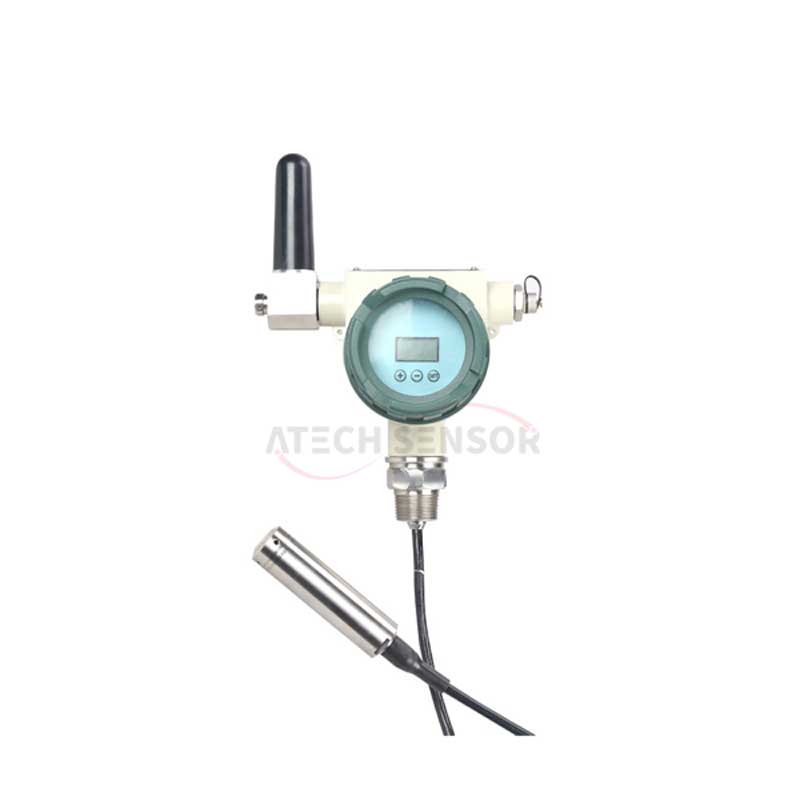

The level sensor is submerged into bottom of tank to detect the current moment height of level.
The PC server must connect with internet that has the world unique public IP address. The comprehensive monitoring software is mounted into the PC server. It can receive all of level height that transmitted by wireless data transceiver terminal reliably, also show ,save and analyze the data, then the user can monitor and manage the level height of tank.
Application :
● Diesel level
● Fuel level
● Water level
● Liquid level
Product Features
● Wireless output, no need for complicated wiring installation
● Micro-power design,
● Long service life,
● Open battery design allows for easy replacement at any time
● With data storage function, data will not be lost in case of network failure
● Device parameters can be modified remotely
Product Specification
| Range | 0~1M … 500M H2O optional |
| Output | Wireless GPRS 2G |
| Band communication | 850MHz/900MHz/1800MHz/1900MHz |
| Power supply | 10VDC~30VDC or 3.6V Battery |
| Process connection | Filter cover or 1/4″NPT male by customized |
| Accuracy | 0.25%F.S; 0.5%F.S optional |
| Working temperature | -30°C~+80°C |
Product Dimensions
Product Features
● Wireless output, no need for complicated wiring installation
● Micro-power design,
● Long service life,
● Open battery design allows for easy replacement at any time
● With data storage function, data will not be lost in case of network failure
● Device parameters can be modified remotely
Product Dimensions
Product Specification
| Range | 0~1M … 500M H2O optional |
| Output | Wireless GPRS 2G |
| Band communication | 850MHz/900MHz/1800MHz/1900MHz |
| Power supply | 10VDC~30VDC or 3.6V Battery |
| Process connection | Filter cover or 1/4″NPT male by customized |
| Accuracy | 0.25%F.S; 0.5%F.S optional |
| Working temperature | -30°C~+80°C |
