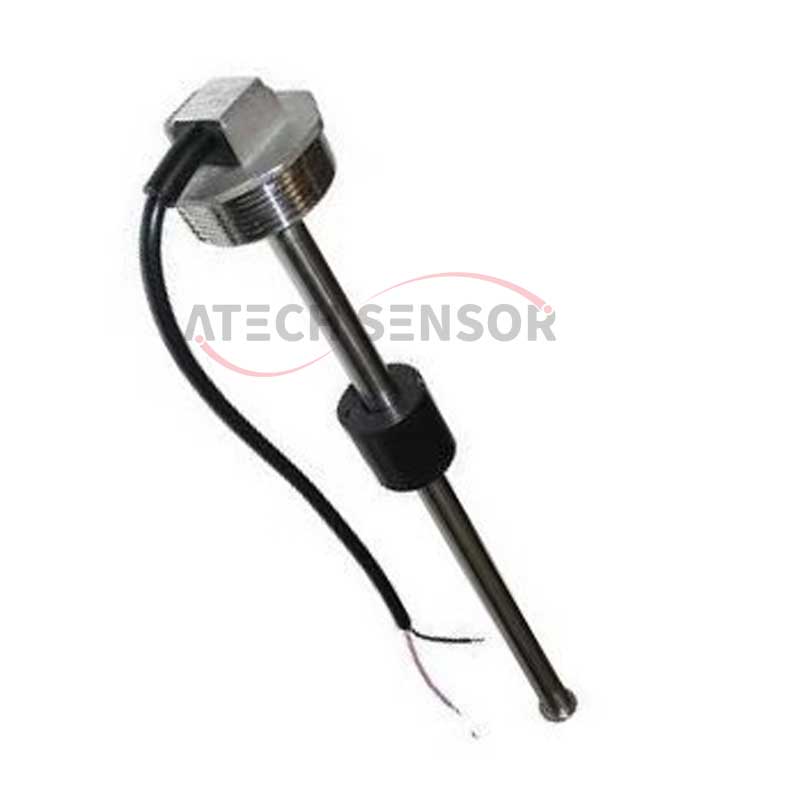

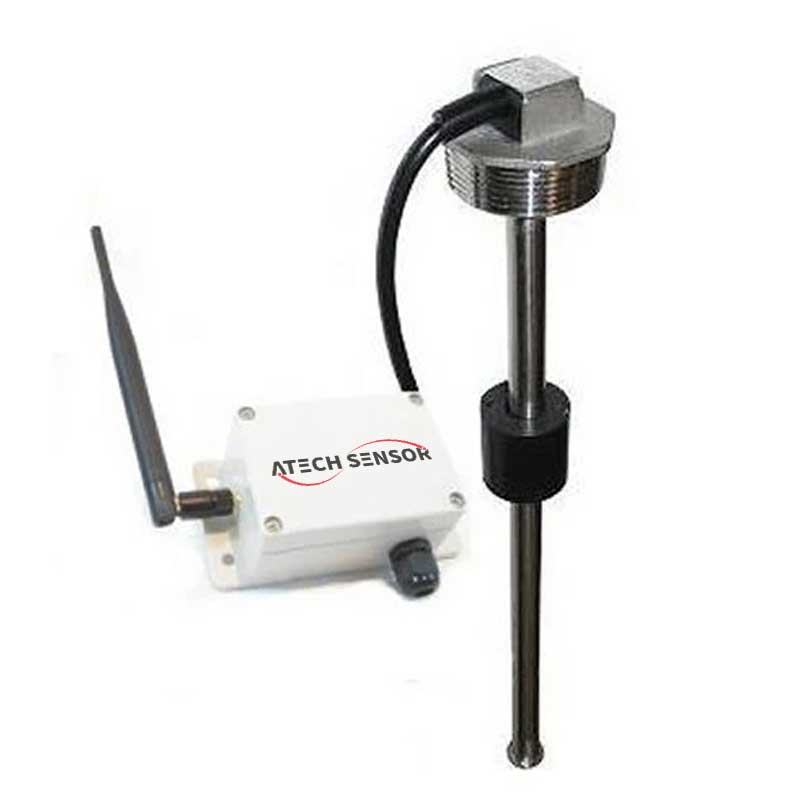

Model AFLSS-23 Continuous Level Sensor with wireless Transmitter/Receiver set operates with a vertical mounted, stainless steel float sensor that is ideal for monitoring liquid height in many applications. The sensor and 2.4GHz wireless transmitter combination accomplishes remote tank level measurement by sending a wireless current or voltage output signal up to 6 miles away that corresponds to the position of the float as it travels up and down the sensor's shaft. You can connect the wireless receiver output to a process meter or PLC to control a pump, valve or alarm unit. These level sensors are rugged, reliable and available in a wide variety of lengths to 42".
Product Features
● Wireless Bridge Between Tank Level Sensor & Process Instrument
● Up To 6 Miles Line-of-site Max Distance
● Wireless Receiver Provides 4-20mA or 1-5V DC Output
● Sensor Available from 8 to 42 inches in Length
● NEMA 4X Transmitter Enclosure
● Powered By 12-24V DC Supply
● Field Adjustable Span Output
● Sold as Sensor/Transmitter/Receiver Matched Set
Product Specification
| Level Sensor Specifications | |
| Measurement Range | 8 to 42" (By selected model) |
| Accuracy | +/- 0.25% of span |
| Orientation/Mount Angle | +/- 18° from vertical |
| Process Temperature Range | -40 to 85°C (-40 to 185°F) |
| Sensor Mount | 1 ½" NPT |
| Shaft/Body Material | 316 SS |
| General Specifications | |
| Radio Frequency | 2.4 Ghz |
| Wireless Analog Signal Transmission Resolution | 10-bit |
| RF Output Impedance | 50 Ohm nominal |
| Transmitter/Receiver Code Matching | Factory set |
| Wire Connections | Terminal Blocks (14 - 24 AWG) |
| Transmitter/Receiver Enclosure | Plastic, NEMA 4X |
| Antennas | 5 dBi Antenna (Included with system) |
| Transmit/Receive RF Distance | Up to 600' Line-of-sight (With Included 5 dbi Antennas
|
Up to 1 Mile Line-of-sight (With Optional 11 dbi Antennas) | |
| Wireless Transmitter Specifications | |
| Operating Power | Can be Hard-wired, Battery or Solar |
| Operating Temperature | -10 to 130 ºF (-23 to 54 ºC) |
| Hardwired | 12 to 24V DC @ 250mA |
| Battery | 12V Battery (See Manual for Battery Life Estimates) |
| Optional Solar | Includes Panel, Battery, Charge Controller |
| RF Power Output | 79mW |
| RF Data Rate | 250 Kbps |
| Wireless Receiver Specifications | |
| Operating Power | 12-24V DC @ 350mA |
| Operating Temperature | -10 to 130 ºF (-23 to 54 ºC) |
| Receive Sensitivity | -103 dBm |
| RF Input Impedance | 50 Ohm nominal |
| Analog Output | 4-20mA, 1-5VDC (Field Selectable) |

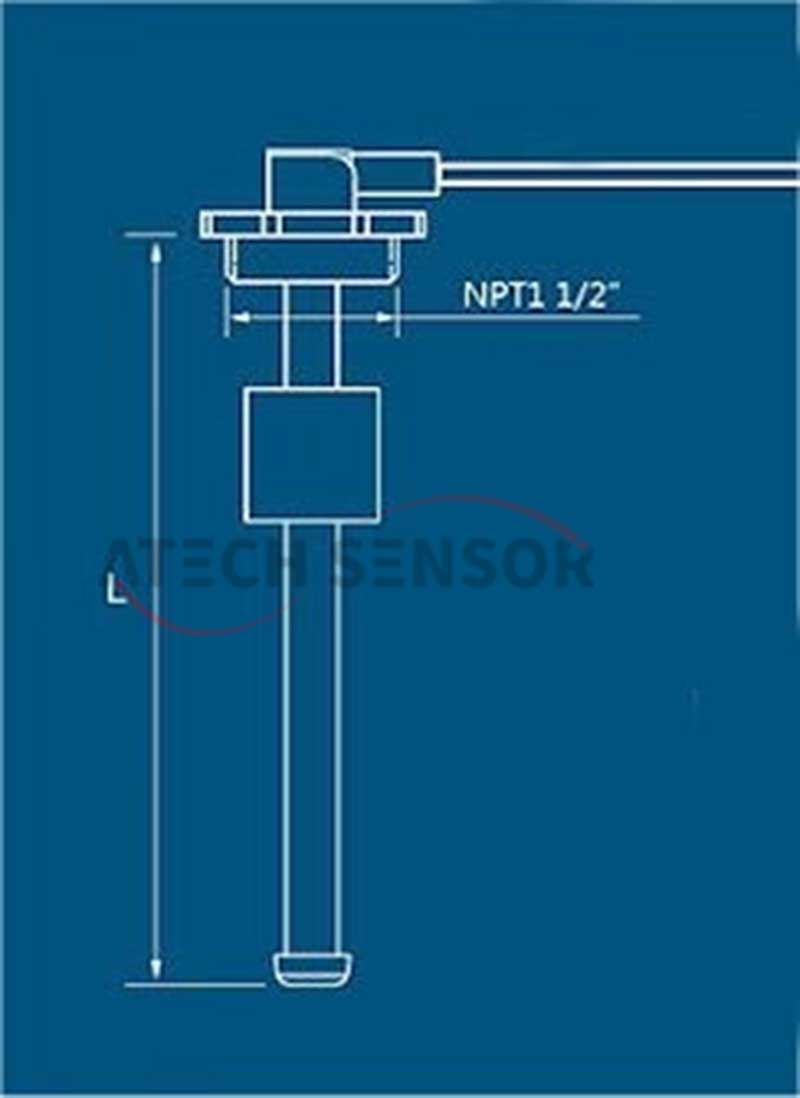

Product Dimensions
