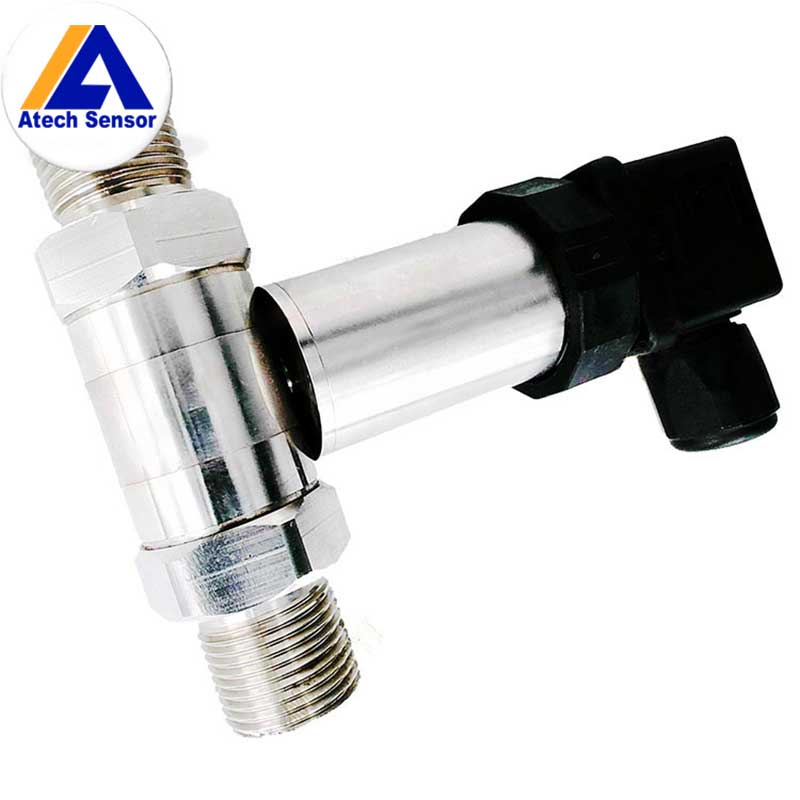

Products Description
A differential pressure sensor is a sensor used to measure the difference between two pressures. It is usually used to measure the pressure difference between the front and back ends of a device or component.

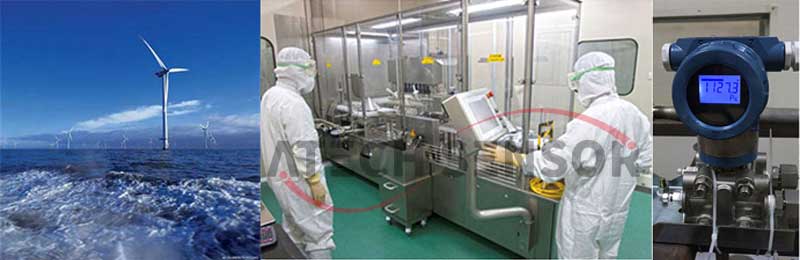

Product application:
1.Gas and liquid differential pressure measurement
2.HVAC, environmental pollution control, clean engineering
3.medical instruments and equipment, oven pressurization and furnace wind pressure control, natural gas and coal gas pipeline
4.network monitoring, underground ventilation and power plant wind pressure monitoring and other fields
Product Features
● High performance price ratio
● All stainless steel structure design, small size, light weight, easy installation
● Stable and reliable performance
● Accuracy up to 0.1%FS
● Waterproof grade IP65
Product Specification
| capability range | 0~2,100...2000KPA; 0~2,20...2MPA |
| pressure type | Differential pressure |
| signal output(mA/v) | mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
| Full load output(mV) | 30~60~120 |
| Zero point output(mV) | ≤20 |
| Precision(%FS) | 0.1, 0.2,0.3 |
| sluggish repeat (nor-linearity)(%FS) | ≤0.1 ≤0.2 ≤0.3 |
| excursion at zero point(%FS/4h) | ≤0.01 ≤0.02 ≤0.03 |
| temperature excursion(zero & delicacy)(%FS/ºC) | ≤0.01 ≤0.02 ≤0.03 |
| long term stability(%FS/year) | ≤0.1;≤0.2 |
| execute voltage (V) | 24v (9~36v) |
| temperature compensate (ºC) | 0~+70 |
| environment temperature (ºC) | -20~+85 |
| Overload (%) | 200 |
| Static pressure (type) BAR | 10~12 |
| load resistance (Ω) | R=(U-12.5)/0.02-RD; U=POWER SUPPLY, RD=Wire resistance |
| response time(ms) | ≤1 |
| measure medium | compatible with 316L,causticity Gas,liquid |
| House | 1Cr18Ni9Ti |
| connector thread | Ø7.5,M12×1 or order by customer |
| explosion proof grade | option-able |
| water proof grade | IP65 |
| Film | 316Lstainless steel |

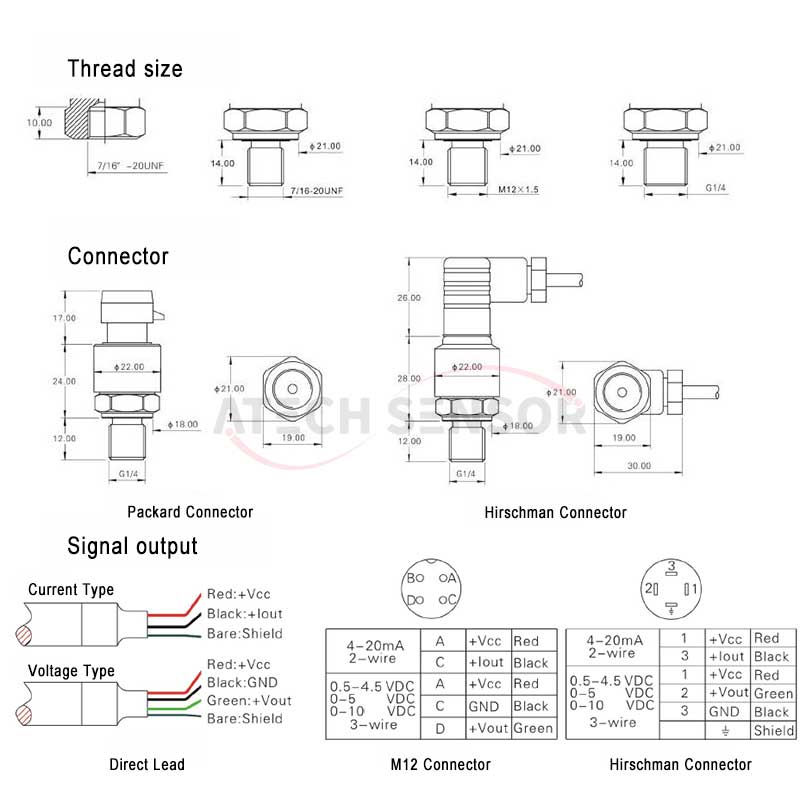

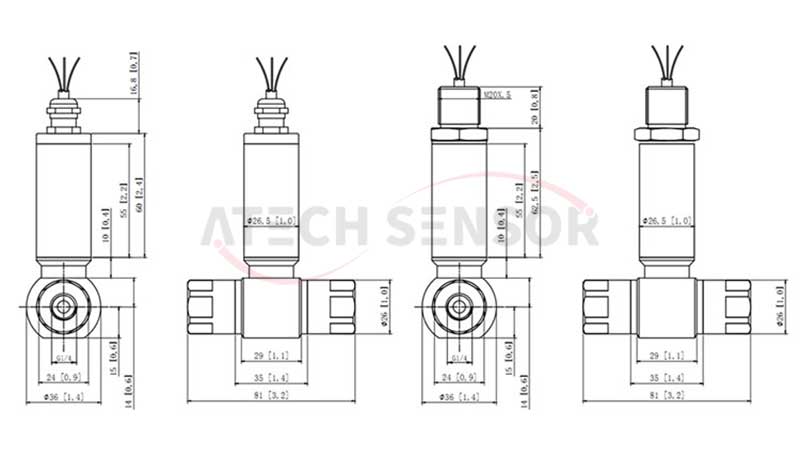

Product Dimensions
Product Features
● High performance price ratio
● All stainless steel structure design, small size, light weight, easy installation
● Stable and reliable performance
● Accuracy up to 0.1%FS
● Waterproof grade IP65
Product Dimensions
Product Specification
| capability range | 0~2,100...2000KPA; 0~2,20...2MPA |
| pressure type | Differential pressure |
| signal output(mA/v) | mv/v, 0-5vdc,4-20mA,Hart,Rs485 |
| Full load output(mV) | 30~60~120 |
| Zero point output(mV) | ≤20 |
| Precision(%FS) | 0.1, 0.2,0.3 |
| sluggish repeat (nor-linearity)(%FS) | ≤0.1 ≤0.2 ≤0.3 |
| excursion at zero point(%FS/4h) | ≤0.01 ≤0.02 ≤0.03 |
| temperature excursion(zero & delicacy)(%FS/ºC) | ≤0.01 ≤0.02 ≤0.03 |
| long term stability(%FS/year) | ≤0.1;≤0.2 |
| execute voltage (V) | 24v (9~36v) |
| temperature compensate (ºC) | 0~+70 |
| environment temperature (ºC) | -20~+85 |
| Overload (%) | 200 |
| Static pressure (type) BAR | 10~12 |
| load resistance (Ω) | R=(U-12.5)/0.02-RD; U=POWER SUPPLY, RD=Wire resistance |
| response time(ms) | ≤1 |
| measure medium | compatible with 316L,causticity Gas,liquid |
| House | 1Cr18Ni9Ti |
| connector thread | Ø7.5,M12×1 or order by customer |
| explosion proof grade | option-able |
| water proof grade | IP65 |
| Film | 316Lstainless steel |
