Products Description

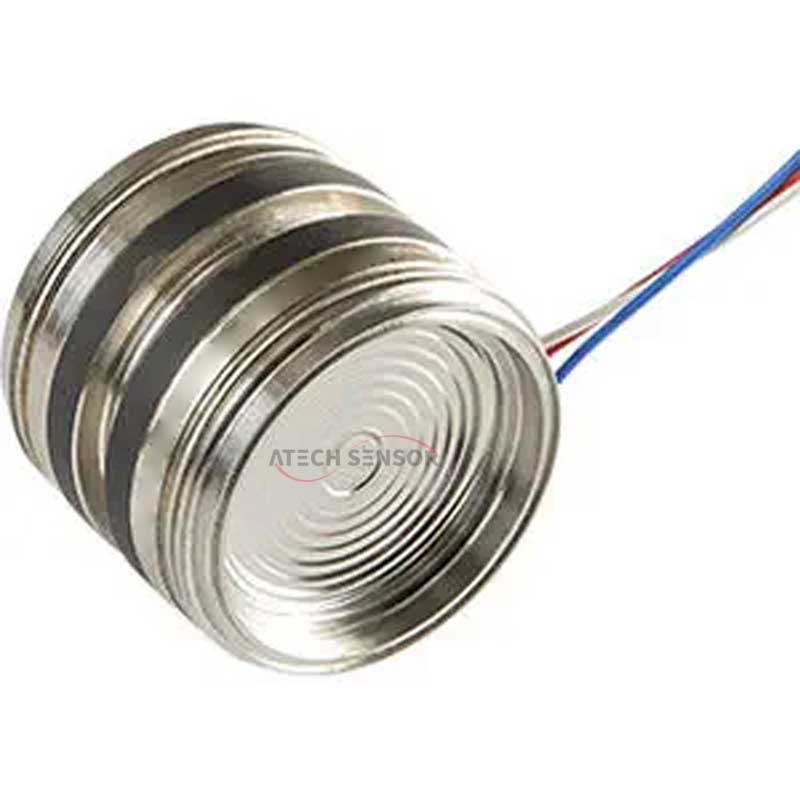

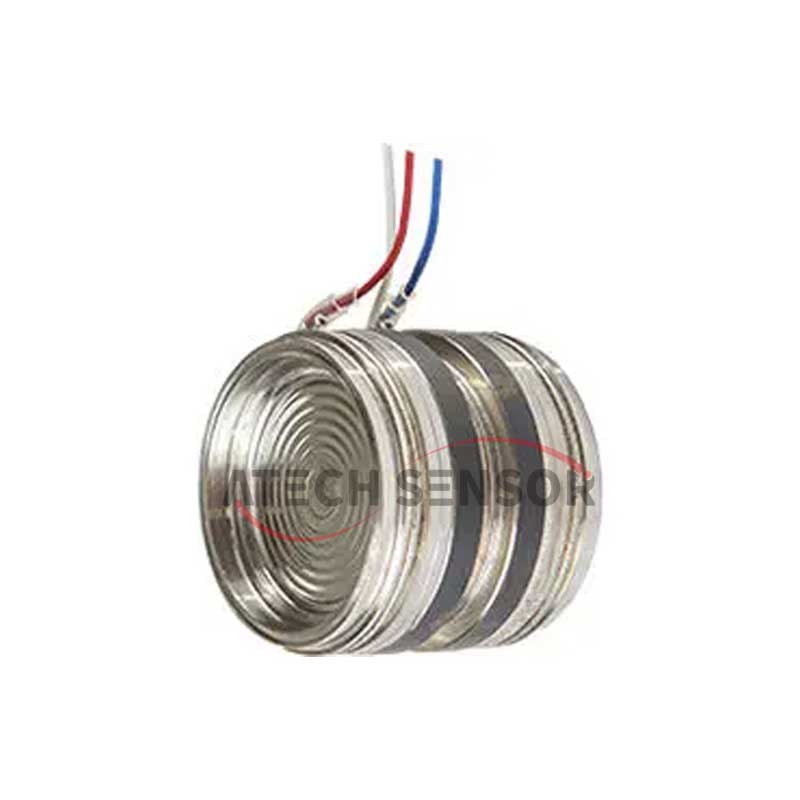

The model APTSS-25 is a capacitive differential pressure sensor, based on the BCM metal capacitor technology. The sensing element is composed of two stationary capacitor plates and one movable sensing diaphragm. The sensing diaphragm is located between the two capacitor plates, and it forms two separated chambers together with each capacitor plate. The whole sensing element is packaged in a 316L SS (stainless steel) housing which is filled with silicone oil. Through the filling oil, measured pressures can be transferred from two 316L SS isolating diaphragms to the sensing element. If these two pressures are different, the sensing plate will be forced to move closer to one of the capacitor plates. As a result, the electrical output signal can be created by means of the capacitance change between the sensing plate and the two capacitor plates.
For different applications, there are different types of fill fluid available for this model. The sensor can be filled with the standard type-A fluid for common industry of general purpose, with the type-B fluid suitable for oxygen industry, or with the type-C fluid suitable for tobacco industry.
The APTSS-25 is designed to have a wide variety of pressure ranges from 0~16 mbar differential (D) pressure to 0~410 bar gauge (G) pressure. Owing to the large diameter diaphragm, the sensor is enabled to measure viscous fluids or fluids with particles, and it is also compatible with corrosive media. Tantalum, Hastelloy-C, or Monel diaphragms are available on request for stronger corrosive media applications. The 115C which can be sealed by O-rings features wetted parts with a diameter of 41.4mm.
Product Features
● Uses metal capacitor technology
● Housing material is stainless steel
● Able to measure viscous fluids or fluids containing particles, and is also compatible with corrosive media
● O-ring seals available
● Wide pressure range, from 0~16 mbar differential pressure to 0~410 bar gauge pressure
Product Specification
| Pressure type | differential |
| Technology | capacitive |
| Output | analog |
| Fluid | for oxygen |
| Material | stainless steel |
| Other characteristics | OEM |
| Pressure range | 0 bar~520 bar,0 psi~7,541.96 psi |
| Precision | 0.8 % |
| Process temperature | -40ºC~130ºC,-40ºF~266ºF |
