Products Description
APTSS-21 wireless pressure transmitter is a high-precision, low-power wireless pressure detection instrument independently developed by our company. It consists of a pressure sensor, a signal processing circuit, a communication module and a power module. It is powered by a large-capacity high-energy lithium battery and transmits data via radio frequency. This instrument is easy to install and use. It does not require on-site wiring, which saves the trouble of wiring bridges for conventional instruments, saves manpower and construction costs, and is especially suitable for occasions where wiring is difficult and power cannot be supplied. It is an ideal upgrade product for traditional pressure transmitters.
Product Features
● Suitable for various complex working environments
● 3-5 years battery life
● Stable wireless signal transmission
● Easy to install and easy to use
● High precision, low power consumption

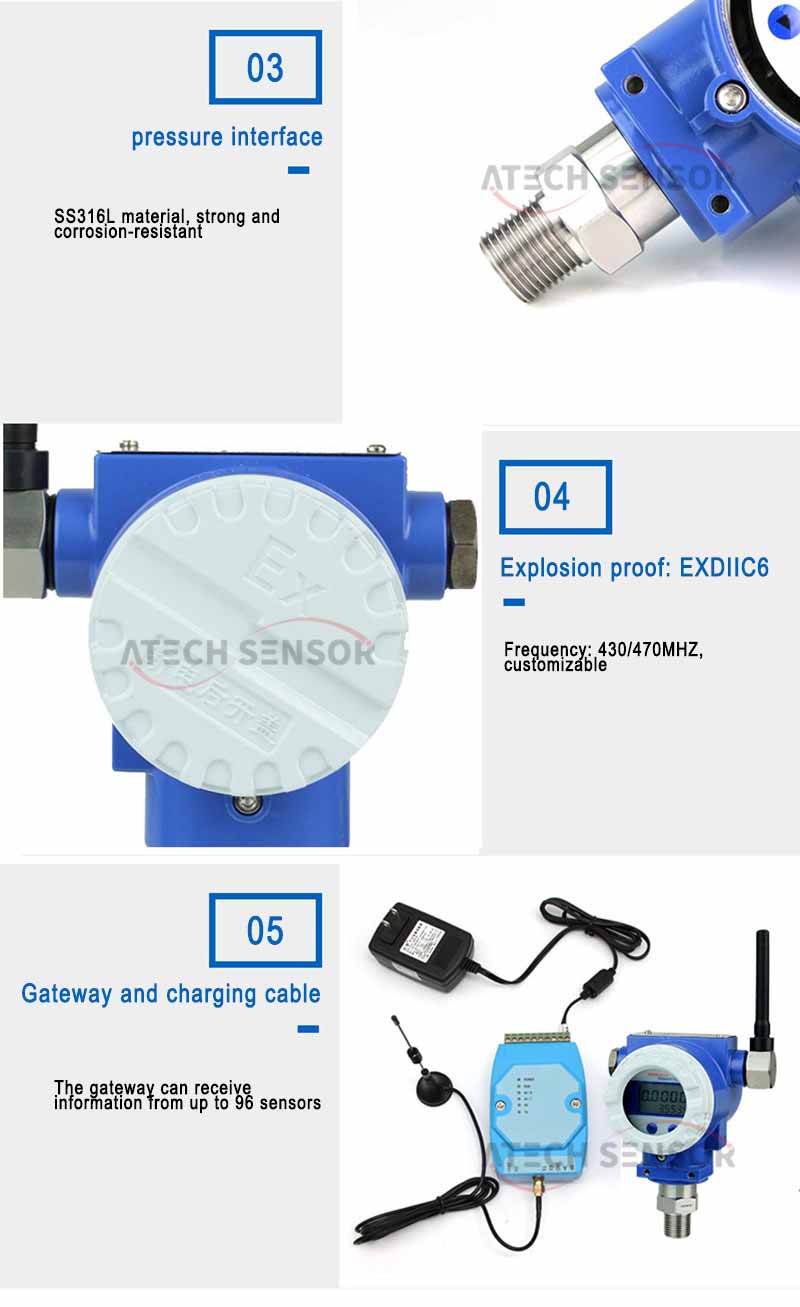

● SS316L material, strong and corrosion-resistant
Product Specification
| Technical Parameters | ||||||||||
| Measuring range | -100KPa~0~250MPa | |||||||||
| Accuracy | Normal accuracy: ±0.5%F.S | |||||||||
| Resolution | 0.01 | |||||||||
| Network Standard | GFSK SWSN; LORA; NB-IOT; | |||||||||
| Data upload interval | 1-255 seconds (GFSK format): 1-255 minutes (LORA): 3-255 minutes (NB-IOT format) | |||||||||
| Data upload mode | Scheduled upload: upload changes (change limit can be set) | |||||||||
| Equipment working environment | -40~85ºC: humidity 0~95%RH without condensation | |||||||||
| Fixation method | Thread direct connection, U-bolt fixing | |||||||||
| Ambient temperature influence | Total influence/28ºC(50°F), ±[0.08% of range +0.015% of range upper limit] | |||||||||
| Stability | ±0.1% of upper range limit/1 year | |||||||||
| Protection grade | IP65 (meter header) | |||||||||
| Battery parameters | Capacity 19000mAh Voltage 3.6V | |||||||||
| Power supply impact | ±0.005%/1V | |||||||||
| Weight | 1.3~1.5kg | |||||||||

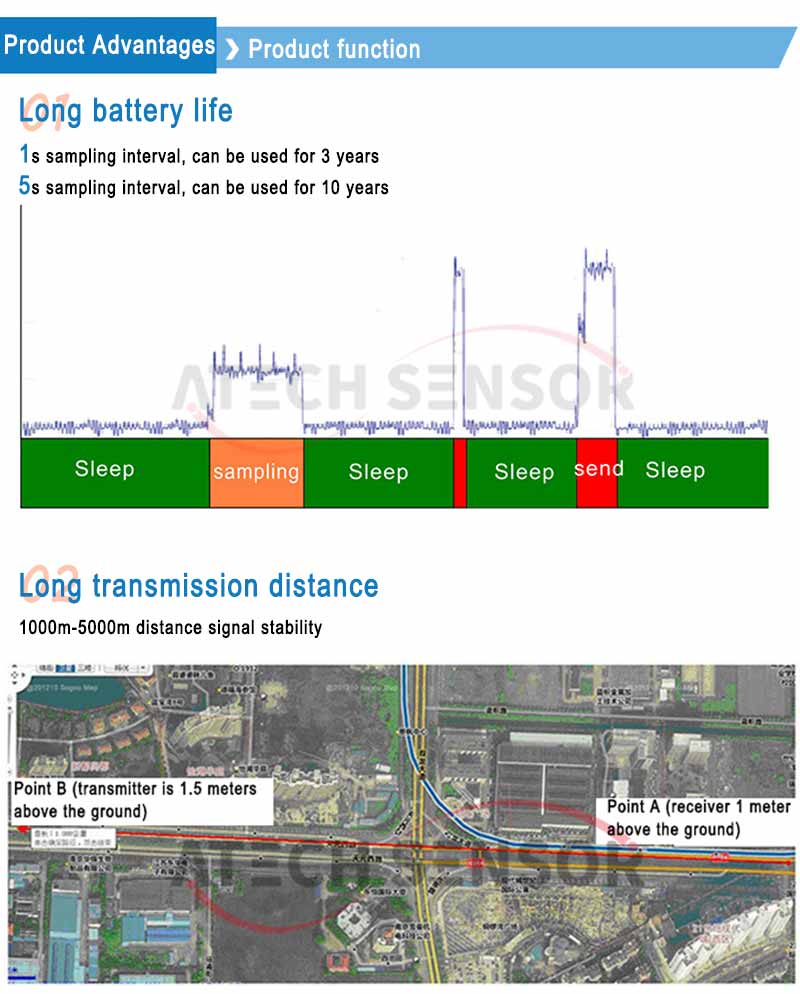

| Sending interval | 0.25s | 1s | 2s | 5s | 1min | 2min | 10min | 5min | 15min | 60min |
| Battery Life | 1year | 3years | 5years | 10years | 1year | 3years | 8years | 1year | 3years | 8years |
| Wireless Standard | SWSN | SWSN | SWSN | SWSN | LORA | LORA | LORA | NB | NB | NB |
| Test conditions: 20ºC 60%RH laboratory, battery self-discharge rate: <1%/year | ||||||||||

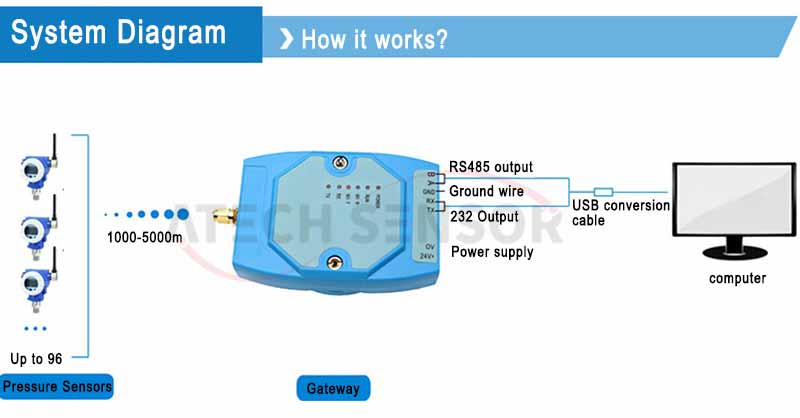

Radio parameters Wireless Standard SWSN LORA NB Transmission distance (line of sight) 1000~2000 meters 5000~10000 meters Unlimited (depends on base station signal coverage) Transmission distance (obstruction reference) 50~250 meters 250~1000 meters Depends on base station signal coverage Carrier frequency band 430~470~510M 860~930M(customized) 430~470~510M 860~930M(customized) B1 B2 B3 B5 B8 B20 Gateway parameters Network support SWSN Wireless Network Modulation method GFSK frequency 430/470MHZ Data Interface RS485 Communication Protocol Modbus RTU Power supply mode 10-28VDC Work Environment Temperature: -20ºC~60ºC: Humidity: <90% Dimensions 75(W)*125(H)*45(D)mm (without antenna) Installation 35mm rail installation

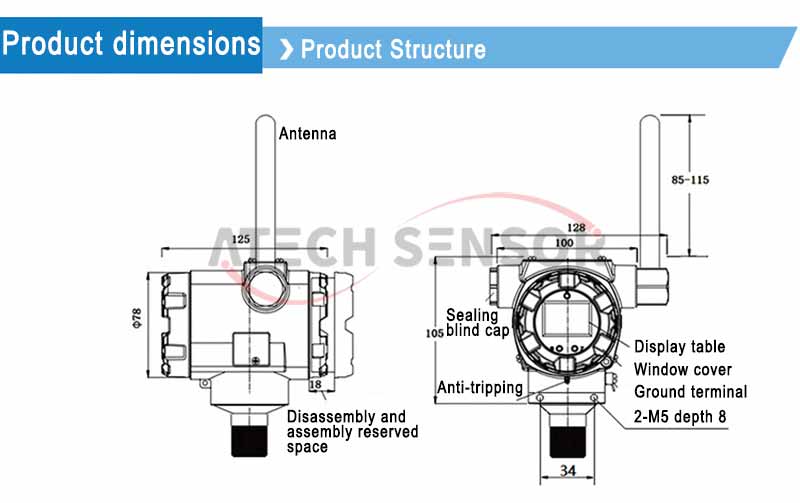

Product Dimensions
