Products Description
The design of this solar automatic weather station fully considers the complexity and real-time nature of meteorological monitoring. It is equipped with high-performance data storage equipment, which can store meteorological data for a long time and in large capacity, providing a solid foundation for subsequent data analysis, research and display. At the same time, the weather station also supports wired or wireless data transmission functions, and can transmit the observed meteorological data to the data center or related monitoring platform in real time and accurately, so that users can grasp the weather changes at any time and make scientific decisions.
Product Features
● Accurate Weather Monitoring: This weather station provides precise measurements of wind speed, direction, air temperature, and humidity, ensuring that you stay informed about the current weather conditions.

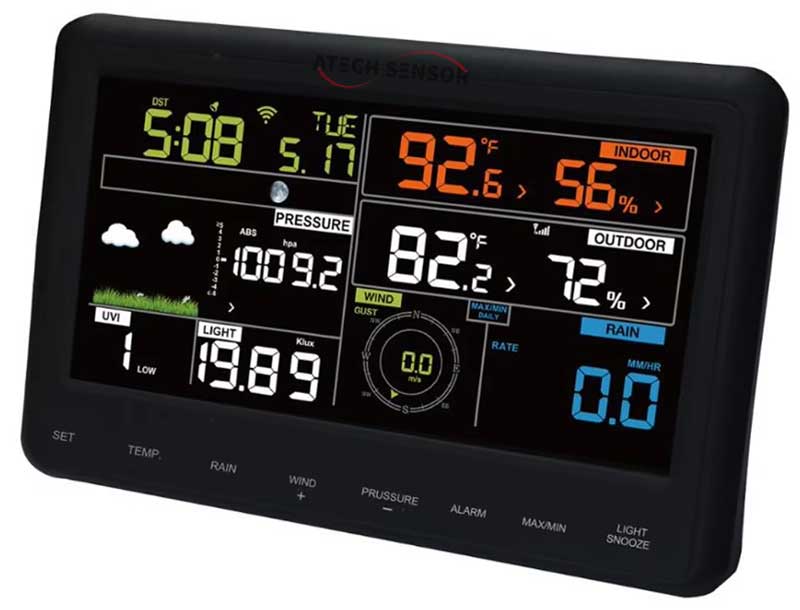

● User-friendly Interface: The device features a screen terminal for easy monitoring and tracking of weather data, allowing users to stay up-to-date with the latest weather forecasts.
● Energy Efficiency: Powered by solar panels, this weather station is an eco-friendly and cost-effective solution for monitoring weather conditions, ideal for homes and outdoor use.
● Customization Options: We offer OEM, ODM, and OBM support, as well as software reengineering services, to cater to the specific needs of our customers.
● Warranty and Support: Backed by a 1-year warranty and dedicated customer support, you can trust that your investment in this weather station will be protected and supported.
Function：
1. Color display
2. Touch keys
3. WIFI module
4. Auto uploading data to net server
5. Get Time from net
6. Auto DST
7. Calendar (Month/date, 2000-2099 Default Year 2016)
8. Time (hour/minute)
9. In/outdoor Temperature/Humidity in C/F selectable
10. In/outdoor Temperature/Humidity Trend
11. Display wind, gust and wind direction
12. Wireless Wind and Wind direction with 1 degree resolution, accuracy: +/-12degrees
13. Wind speed in ms, km/h, mph, knots and bft (accuracy: <10m/s: +/-1m/s, >=10m/s: 10%)
14. Wireless Rainfall
15. Rainfall in inch, mm (accuracy: +/-10%)
16. Display rainfall in rate, event, day, week, month and total.
17. Independent alerts for indoor & outdoor temperature & humidity
18. Independent alerts for rain rate and rain day.
19. Independent alerts for wind speed.
20. Weather forecast: sunny, partly sunny, cloudy, rain, storm and snow, with pressure in hpa, mmhg or inhg.
21. Heat index, wind chill and dew point for outdoor
22. High/Low records for indoor/outdoor temperature/humidity
23. MAX/MIN data records.
24. High/Mid/Off backlight controlled
25. User accuracy calibration supported
26. Automatically to saved user set parameters (unit, calibration data, alarm data...) in to EEPROM.
27. When connected to the DC power adapter, the backlight is always on. When powered by battery only, the backlight turns on only when the button is pressed, with an automatic timeout of 15 seconds.
Product Specification
Basic parameters of the sensor | |||
Items | Measuring range | Resolution | Accuracy |
Outdoor temperature | -40ºC to +65ºC | 1ºC | ±1ºC |
Indoor temperature | 0ºC to +50ºC | 1ºC | ±1ºC |
Humidity | 10% to 90% | 1% | ±5% |
Rain volume display | 0 - 9999mm (show OFL if outside range) | 0.3mm (if rain volume < 1000mm) | 1mm (if rain volume > 1000mm) |
Wind speed | 0~100mph (show OFL if outside range) | 1mph | ±1mph |
Wind direction | 16 directions | ||
Air pressure | 27.13inHg - 31.89inHg | 0.01inHg | ±0.01in Hg |
Transmission distance | 100m (330 feet) | ||
Transmission frequency | 868MHz(Europe) / 915MHz (North Ameria) | ||
Power Consumption | |||
Receiver | 2xAAA 1.5V Alkaline batteries | ||
Transmitter | Solar power | ||
Battery life | Minimum 12months for base station | ||
Package Includes | |||
1 PC | LCD Receiver Unit (NOT Include Battery) | ||
1 PC | Remote Sensor Unit | ||
1 Set | Mounting brackets | ||
1 PC | Manual | ||
1 Set | Screws | ||
1. Please note that batteries are not included!
2. Please allow 1-2cm measuring deviation due to manual measurement.
3. Please install the receiver's batteries first, before installing batteries in the Wind Gauge Remote Sensor.
4. The AA 1.5V lithium batteries are recommended for outdoor sensor in cold weather climates less than -10°C.
5. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
6. Though the Wind Gauge Remote Sensor is weather-resistant, it should never be submerged in water. If extreme weather
conditions are likely to occur, temporarily move the transmitter to an indoor area for protection.
Product Dimensions
Product Features
● Accurate Weather Monitoring: This weather station provides precise measurements of wind speed, direction, air temperature, and humidity, ensuring that you stay informed about the current weather conditions.
● User-friendly Interface: The device features a screen terminal for easy monitoring and tracking of weather data, allowing users to stay up-to-date with the latest weather forecasts.
● Energy Efficiency: Powered by solar panels, this weather station is an eco-friendly and cost-effective solution for monitoring weather conditions, ideal for homes and outdoor use.
● Customization Options: We offer OEM, ODM, and OBM support, as well as software reengineering services, to cater to the specific needs of our customers.
● Warranty and Support: Backed by a 1-year warranty and dedicated customer support, you can trust that your investment in this weather station will be protected and supported.
Function：
1. Color display
2. Touch keys
3. WIFI module
4. Auto uploading data to net server
5. Get Time from net
6. Auto DST
7. Calendar (Month/date, 2000-2099 Default Year 2016)
8. Time (hour/minute)
9. In/outdoor Temperature/Humidity in C/F selectable
10. In/outdoor Temperature/Humidity Trend
11. Display wind, gust and wind direction
12. Wireless Wind and Wind direction with 1 degree resolution, accuracy: +/-12degrees
13. Wind speed in ms, km/h, mph, knots and bft (accuracy: <10m/s: +/-1m/s, >=10m/s: 10%)
14. Wireless Rainfall
15. Rainfall in inch, mm (accuracy: +/-10%)
16. Display rainfall in rate, event, day, week, month and total.
17. Independent alerts for indoor & outdoor temperature & humidity
18. Independent alerts for rain rate and rain day.
19. Independent alerts for wind speed.
20. Weather forecast: sunny, partly sunny, cloudy, rain, storm and snow, with pressure in hpa, mmhg or inhg.
21. Heat index, wind chill and dew point for outdoor
22. High/Low records for indoor/outdoor temperature/humidity
23. MAX/MIN data records.
24. High/Mid/Off backlight controlled
25. User accuracy calibration supported
26. Automatically to saved user set parameters (unit, calibration data, alarm data...) in to EEPROM.
27. When connected to the DC power adapter, the backlight is always on. When powered by battery only, the backlight turns on only when the button is pressed, with an automatic timeout of 15 seconds.
Product Dimensions
Product Specification
Basic parameters of the sensor | |||
Items | Measuring range | Resolution | Accuracy |
Outdoor temperature | -40ºC to +65ºC | 1ºC | ±1ºC |
Indoor temperature | 0ºC to +50ºC | 1ºC | ±1ºC |
Humidity | 10% to 90% | 1% | ±5% |
Rain volume display | 0 - 9999mm (show OFL if outside range) | 0.3mm (if rain volume < 1000mm) | 1mm (if rain volume > 1000mm) |
Wind speed | 0~100mph (show OFL if outside range) | 1mph | ±1mph |
Wind direction | 16 directions | ||
Air pressure | 27.13inHg - 31.89inHg | 0.01inHg | ±0.01in Hg |
Transmission distance | 100m (330 feet) | ||
Transmission frequency | 868MHz(Europe) / 915MHz (North Ameria) | ||
Power Consumption | |||
Receiver | 2xAAA 1.5V Alkaline batteries | ||
Transmitter | Solar power | ||
Battery life | Minimum 12months for base station | ||
Package Includes | |||
1 PC | LCD Receiver Unit (NOT Include Battery) | ||
1 PC | Remote Sensor Unit | ||
1 Set | Mounting brackets | ||
1 PC | Manual | ||
1 Set | Screws | ||
1. Please note that batteries are not included!
2. Please allow 1-2cm measuring deviation due to manual measurement.
3. Please install the receiver's batteries first, before installing batteries in the Wind Gauge Remote Sensor.
4. The AA 1.5V lithium batteries are recommended for outdoor sensor in cold weather climates less than -10°C.
5. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
6. Though the Wind Gauge Remote Sensor is weather-resistant, it should never be submerged in water. If extreme weather
conditions are likely to occur, temporarily move the transmitter to an indoor area for protection.
