Products Description
Production is carried out strictly in accordance with the conductor single wire diameter standard of "0.15mm" to ensure that the diameter error of each single wire is controlled within a very small range, and each batch of customized wires must undergo comprehensive performance testing. During the production process, multiple quality inspection points are set up to conduct real-time inspections on the products of each process. From the specifications and dimensions of the conductor, the quality of the twisting, to the thickness of the insulation layer, the appearance quality, etc., they are strictly controlled. Once a quality problem is found, production will be stopped immediately, and the cause analysis and rectification will be carried out to prevent unqualified products from flowing into the next process. After the product is produced, a comprehensive final inspection will be carried out, including performance testing and appearance inspection, to ensure that each customized wire delivered to the customer meets various quality requirements.
Product Features
• Nominal voltage:300/500V
• Testing Voltage:2000V
• Conductor:Bare Copper or Tinned Copper
• Insulator: Silicone Rubber
• Working temperature:-60°C~+200"C
• Colours:White-Blue-Red-Black-Brown
• Yellow-Green-Transparent-Gray-Purple
• Specifications: 0.06/0.08/0.15/0.2/0.3/0.5/0.75/1.0/2.0/3.5
Product Specification
| Conductor | Insulator | Electrical characteristics | packing | |||||
| AWG | Compos NO.×φmm | Diameter (mm) | Coating thickness (mm) | Finished outer diameter (mm) | Wire resistance (Ω/km) | Cross-sectional area (mm²) | Bear current (A) | Packaging specification (M/coils) |
| 30 | 11/0.08 | 0.3 | 0.55 | 0.8 | 331 | 0.05 | 0.8 | 500 |
| 28 | 16/0.08 | 0.36 | 0.38 | 1.2 | 277.2 | 0.08 | 1.25 | 400 |
| 26 | 30/0.08 | 0.46 | 0.55 | 1.5 | 123 | 0.14 | 3.5 | 400 |
| 24 | 40/0.08 | 0.61 | 0.55 | 1.6 | 97.6 | 0.2 | 5 | 400 |
| 22 | 60/0.08 | 0.78 | 0.55 | 1.7 | 88.6 | 0.33 | 8.73 | 400 |
| 20 | 100/0.08 | 0.92 | 0.55 | 1.8 | 62.5 | 0.5 | 13.87 | 400 |
| 18 | 150/0.08 | 1.19 | 0.55 | 2.3 | 39.5 | 0.75 | 22 | 200 |
| 16 | 252/0.08 | 1.53 | 0.8 | 3 | 24.4 | 1.27 | 35 | 200 |
| 14 | 400/0.08 | 1.78 | 0.9 | 3.5 | 15.6 | 2.07 | 55.6 | 200 |
| 12 | 680/0.08 | 2.48 | 1 | 4.5 | 9.8 | 3.4 | 88.4 | 200 |

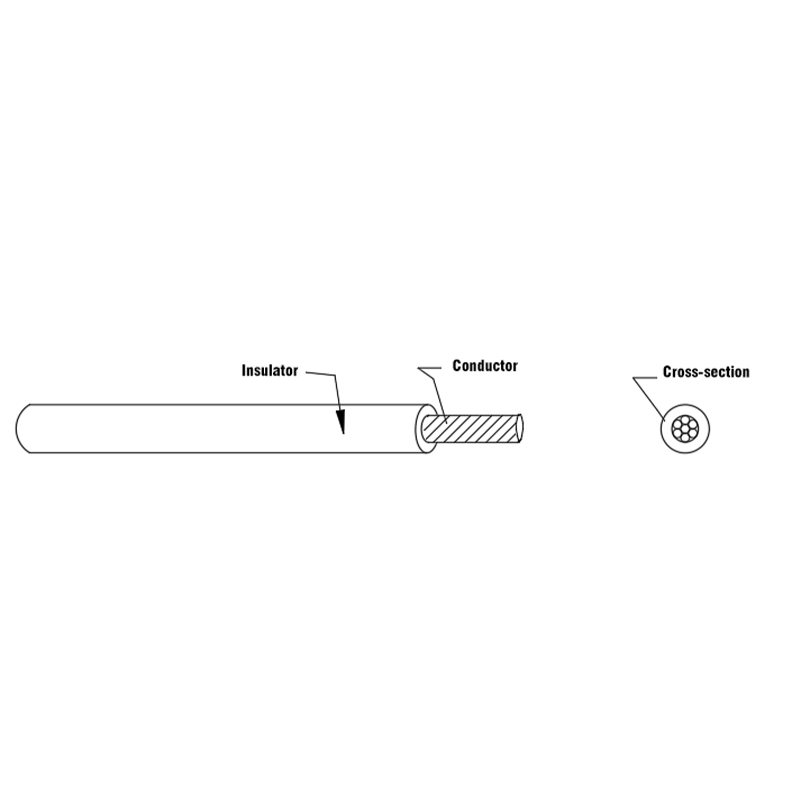

Product Dimensions
Product Features
• Nominal voltage:300/500V
• Testing Voltage:2000V
• Conductor:Bare Copper or Tinned Copper
• Insulator: Silicone Rubber
• Working temperature:-60°C~+200"C
• Colours:White-Blue-Red-Black-Brown
• Yellow-Green-Transparent-Gray-Purple
• Specifications: 0.06/0.08/0.15/0.2/0.3/0.5/0.75/1.0/2.0/3.5
Product Dimensions
Product Specification
| Conductor | Insulator | Electrical characteristics | packing | |||||
| AWG | Compos NO.×φmm | Diameter (mm) | Coating thickness (mm) | Finished outer diameter (mm) | Wire resistance (Ω/km) | Cross-sectional area (mm²) | Bear current (A) | Packaging specification (M/coils) |
| 30 | 11/0.08 | 0.3 | 0.55 | 0.8 | 331 | 0.05 | 0.8 | 500 |
| 28 | 16/0.08 | 0.36 | 0.38 | 1.2 | 277.2 | 0.08 | 1.25 | 400 |
| 26 | 30/0.08 | 0.46 | 0.55 | 1.5 | 123 | 0.14 | 3.5 | 400 |
| 24 | 40/0.08 | 0.61 | 0.55 | 1.6 | 97.6 | 0.2 | 5 | 400 |
| 22 | 60/0.08 | 0.78 | 0.55 | 1.7 | 88.6 | 0.33 | 8.73 | 400 |
| 20 | 100/0.08 | 0.92 | 0.55 | 1.8 | 62.5 | 0.5 | 13.87 | 400 |
| 18 | 150/0.08 | 1.19 | 0.55 | 2.3 | 39.5 | 0.75 | 22 | 200 |
| 16 | 252/0.08 | 1.53 | 0.8 | 3 | 24.4 | 1.27 | 35 | 200 |
| 14 | 400/0.08 | 1.78 | 0.9 | 3.5 | 15.6 | 2.07 | 55.6 | 200 |
| 12 | 680/0.08 | 2.48 | 1 | 4.5 | 9.8 | 3.4 | 88.4 | 200 |
