Products Description
This series pressure sensor features a stainless steel shell, advanced pressure ceramic core, and high precision design. It ensures stable performance with minimal long-term drift and a long lifespan. With an optional output signal of 0.5-4.5V and a power supply range of 5-16V, it is versatile for various applications.The sensor undergoes rigorous quality control processes.
Product Features
● Stainless steel shell;
● Advanced pressure ceramic core and special processing chip;
● High precision, small size, light weight, easy to install and operate;
● Stable performance, small long-term drift, long life;
● Perfect EMC protection;
Product Specification
| Power supply voltage: | 5-16V |
| Material: | stainless steel |
| Electrical connection: | PACK |
| Cheng: | 0~ 100 psi (15 psi / 30 psi /80 psi /150 psi/200 psi / 300 psi / 1000 psi /1600 psi /2500 psi) |
| Output signal: | 0.5 ~4.5V(optional) |
| Overcut pressure: | 2 times full scale pressure |
| Failure pressure: | 3 times full scale pressure |
| Production process: | piezoresistive |
| Output type: | analog |
| Overall accuracy(nonlinearity+repeatability+hysteresis): | ±1%FS(0~80C) ±2%FS(-20~100C) ±3%FS(-40~125C) |

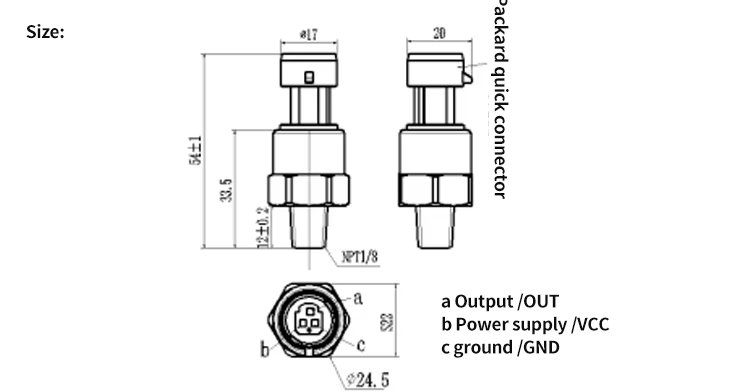

Product Dimensions
Product Features
● Stainless steel shell;
● Advanced pressure ceramic core and special processing chip;
● High precision, small size, light weight, easy to install and operate;
● Stable performance, small long-term drift, long life;
● Perfect EMC protection;
Product Dimensions
Product Specification
| Power supply voltage: | 5-16V |
| Material: | stainless steel |
| Electrical connection: | PACK |
| Cheng: | 0~ 100 psi (15 psi / 30 psi /80 psi /150 psi/200 psi / 300 psi / 1000 psi /1600 psi /2500 psi) |
| Output signal: | 0.5 ~4.5V(optional) |
| Overcut pressure: | 2 times full scale pressure |
| Failure pressure: | 3 times full scale pressure |
| Production process: | piezoresistive |
| Output type: | analog |
| Overall accuracy(nonlinearity+repeatability+hysteresis): | ±1%FS(0~80C) ±2%FS(-20~100C) ±3%FS(-40~125C) |
