Products Description

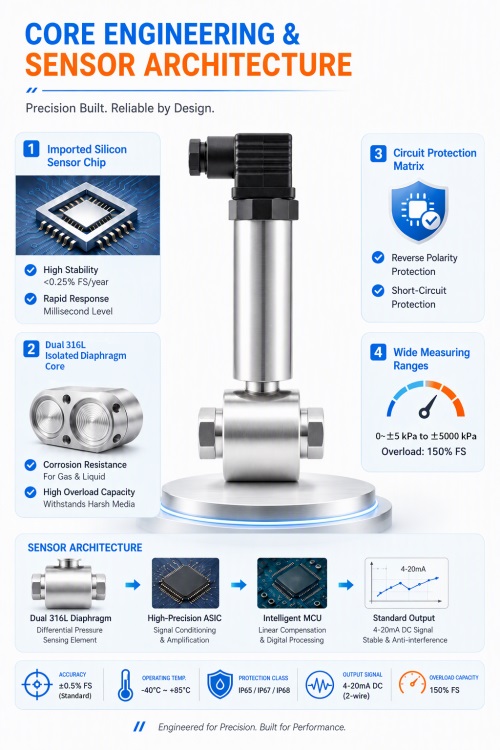

Product Features
Feature
● Easy to install
● Imported silicon sensor chip employed
● Perfect long term stability
● Zero point and full range can be adjusted
● Have short-circuit protection
● Have reverse Polarity Protection

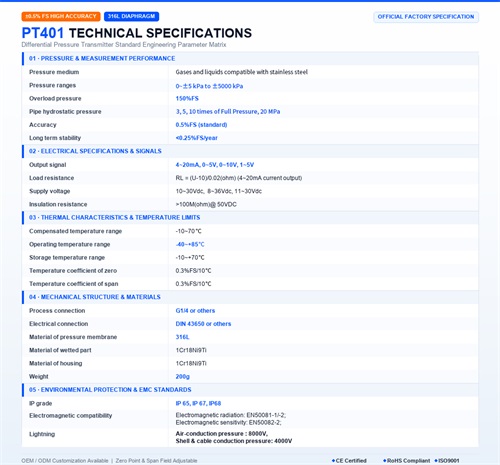

Product Specification
Speifications
pressure medium | gas liquid compatible stainless steel |
pressure ranges | 0~±5kPa ……±5000kPa |
overload pressure | 150%FS |
Pipe hydrostatic pressure | 3 ,5 , 10 times of Full pressure , 20Mpa |
output signal | 4~20mA, 0~5V, 0~10V, 1~5V |
accuracy | 0.5%FS (standard) |
load resistance | RL = (U-10)/0.02(ohm) (4~20mA current output) |
long term stability | <0.25%FS/year |
supply voltage | 10~30Vdc, 8~36Vdc, 11~30Vdc |
compensated temperature range | -10~70°c |
operating temperature range | -40~+85°c |
storage temperature range | -10~+70°c |
temperature coefficient of zero | 0.3%FS/10°c |
temperature coefficient of span | 0.3%FS/10°c |
insulation resistance | >100M(ohm)@ 50VDC |
process connection | G1/4 or others |
electrical connection | DIN 43650 or others |
material of wetted part | 1Cr18Ni9Ti |
material of pressure membrane | 316L |
material of housing | 1Cr18Ni9Ti |
Electromagnetic compatibility | Electromagnetic radiation: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2; |
Lightning proof A | Air-conduction pressure : 8000V, Shell & cable conduction pressure: 4000V |
Weight | 200g |
IP grade | IP 65, IP 67, IP68 |

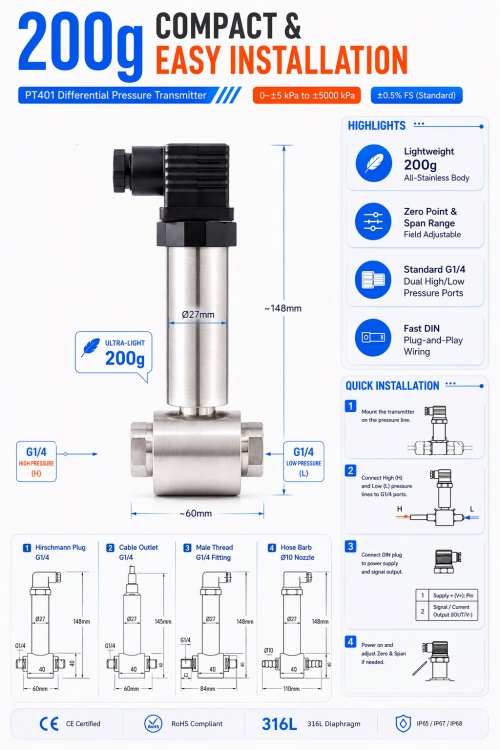

Product Dimensions
