Products Description
Feature
● MEMS technology
● Imported Piezoresistive silicon chip employed
● Sensor diameter:19mm
● Gas or dilute liquid compatible with 316LSS
● Smaller thickness
Applications
● Industrial process control
● Wastewater and environmental engineering
● Liquid pressure system and switch
Description

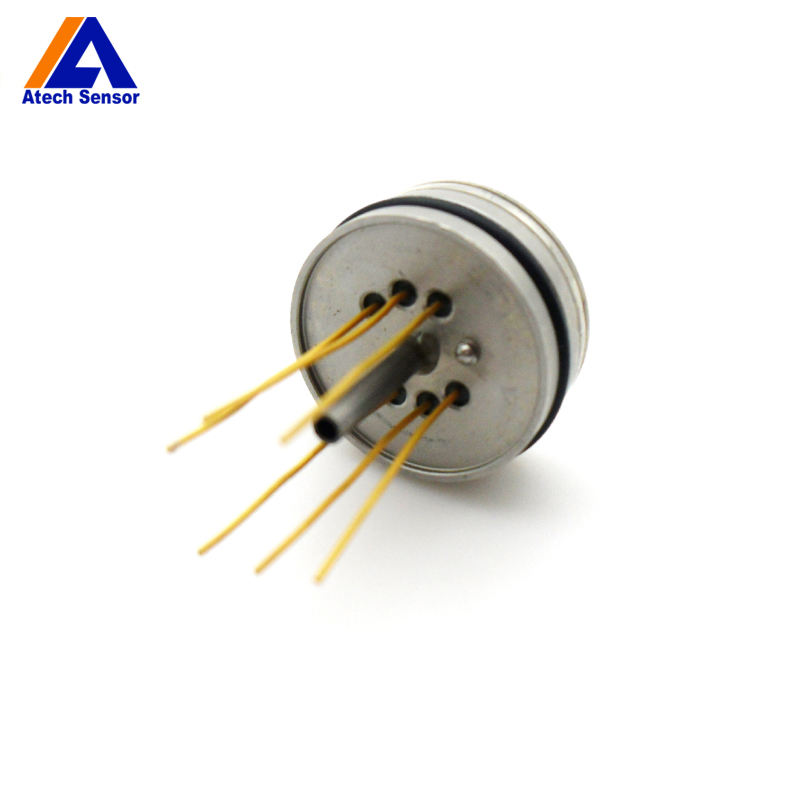

PS19A industrial pressure sensor is a standard and common sensor applied in air and chemi-industry, liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body. The most important specification for industry application is long term stability.
The PS19A sensoris designed for industry application with perfect long term stability. The thickness is smaller than PS19 which suitable for limited space assembling.
Speifications
Pressure medium | gas liquid compatible to stainless steel | ||
Pressure ranges | 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa | ||
Pressure type | gauge (G), absolute (A), sealed gauge (S) | ||
Overload pressure | 300%F.S.( <70kPa) |200%F.S.( <25MPa) | ||
Output signal | Zero Output 2mV 100mV (typical) 60mV (for 10kPa) | | ||
Accuracy | 0.25%FS (standard) | ||
Zero offset | ≤±2mV | ||
Long term stability | <0.2%FS/year | ||
Excitation | 1.5mA (typical) |5VDC | 10VDC | ||
Compensated Temp. | -10°c ~+70°c | ||
Operating Temp. | -40~+125°c | ||
Storage Temp. | -40~+125°c | ||
Zero Temp. Coefficient | |||
Span Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) | ||
Bridge Resistance | Min. | Max. | Unit |
2600 | 5500 | ohm | |
Vibration | 20g (20— 5000HZ) | ||
Response time | ≤1ms | ||
Electrical connection | 6-pin or 4-wire | ||
Material of membrane | 316L | ||
Material of housing | 316L | ||
O-ring | NBR, Viton | ||
Filled oil | silicon oil (Typical ), or olive oil for sanitary application | ||
Wire | gold-plated kovar pins, or silicon rubber shielded flexible wires | ||
Net weight | 25g | ||
Product Features
Product Specification

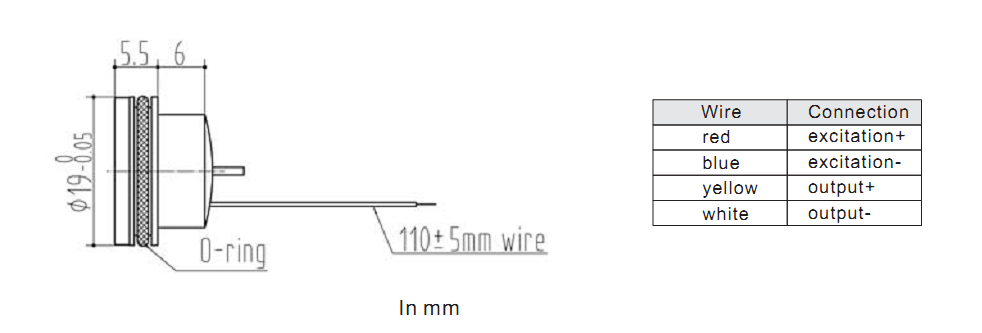

Product Dimensions
