Products Description
Feature
● MEMS technology
● German Piezoresistive silicon chip employed
● Sensor diameter:19mm
● Used in food, medicine, health and wine industry etc
Applications
● Industrial process control
● Wastewater and environmental engineering
● Liquid pressure system and switch
● Refrigeration equipment and air conditioner
Description

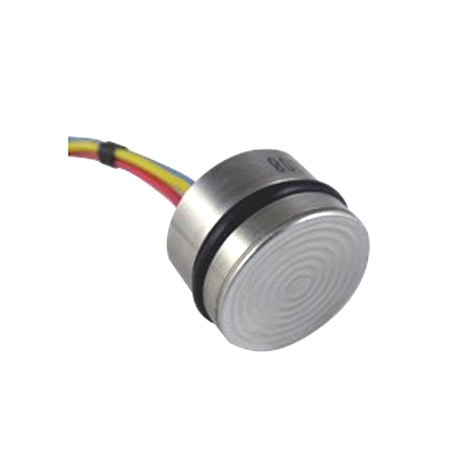

PS19B industrial pressure sensor is a standard and common sensor applied in air and chemi-industry, liquid pressure measuring. A high sensitivity silicon pressure chip is employed in the sensor. Silicon Oil-filled and isolated from measured media by a stainless steel diaphragm and body. The most important specification for industry
application is long term stability.
The PS19B sensoris designed for industry application with perfect long term stability. It have good ability on preventing fouling, crystallization and jamming of thick liquids .PS19B is widely used in food, medicine, health and wine industry etc
Speifications
Pressure medium | gas liquid compatible to stainless steel |
Pressure ranges | 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa |
Pressure type | gauge (G), absolute (A), sealed gauge (S) |
Overload pressure | 300%F.S.( 70kPa) |200%F.S.( 25MPa) |150%F.S.( 25MPa) |
Output signal | Zero Output 2mV 100mV (typical) 60mV (for 10kPa) | |
Accuracy（nonlinearity) | 0.2%FS (standard) |
Zero offset | ±0.4 %FS@25°c |
Long term stability | <0.2%FS/year |
Excitation | 1.5mA (typical) |5VDC | 10VDC |
Compensated Temp. | -10°c ~+70°c |
Operating Temp. | -40~+125°c |
Storage Temp. | -40~+125°c |
Zero Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) |
Span Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) |
Insulation resistance | 500MΩ （100VDC) |
Vibration | 20g (20— 5000HZ) |
Response time | ≤1ms |
Electrical connection | 6-pin or 4-wire |
Material of membrane | 316L |
Material of housing | 316L |
Sealing | fluoro-rubber sealing ring |
Filled oil | silicon oil, or olive oil (hygienism) |
Wire | gold-plated kovar pins, or silicon rubber shielded flexible wires |
Net weight | 28g |
Product Features
Product Specification

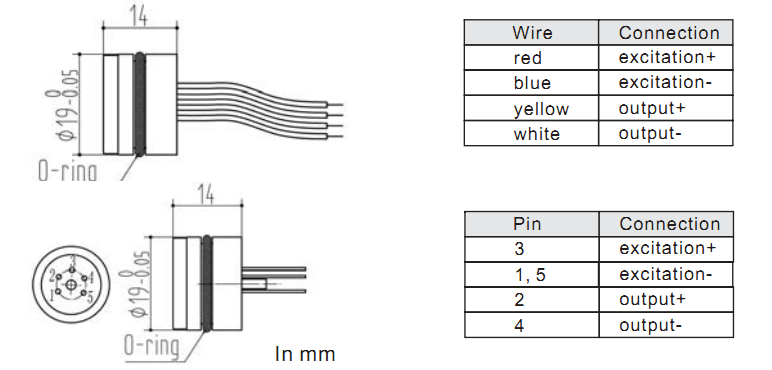

Product Dimensions
