Products Description
Feature
● 100mbar to 250bar (1.45psi to 3600psi )
● Absolute, gauge and sealed gauge
● ±0.5% static accuracy
● Rugged 316L stainless steel isolated package
● Piezo-resistive sensor design
● 0.5~4.5Vdc(radiometric),I C interface
● ASIC Calibrated
● Custom configurations and other pressure
ranges available. Please consult the factory.
Applications
● Industrial process control systems
● Level measurement
● Liquid pressure system and switch
● Refrigeration equipment and HVAC controls
● Hydraulic systems and valve
● Ship and marine systems
Description
PS19C is made from high-quality silicon piezo-resistive sensor chip. The piezo-resistive sensor chip is packaged
in a fluid-filled cylindrical cavity and isolated from measured media by a stainless steel diaphragm and housing. The output of PS19ACcan be configured to 10%~90%Vs ratiometric,4~20mA, I2C by integrated the
electronics. Integrated the electronics is used for temperature compensation, offset correction.
PS19C pressure sensor are designed for floating O-ring
seal mounting. This not only can avoid housing induced
stress,but also is easy for installation.

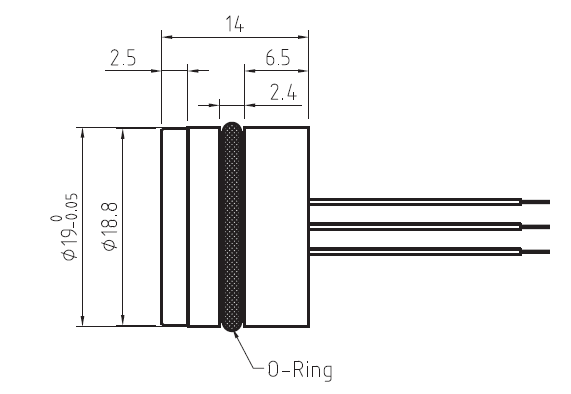

Dimensions (in mm)
Wire color | 0.5~4.5Vdc | 4~20mA | I 2 C |
Red | +IN | +IN | +IN |
Blue | GND | +OUT | GND |
Yellow | +OUT | / | SCL |
White | / | / | SDL |
Specifications
Pressure medium | gas liquid compatible to stainless steel | ||
Pressure ranges | 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa | ||
Pressure type | gauge (G), absolute (A), sealed gauge (S) | ||
Overload pressure | 300%F.S.( 70kPa) |200%F.S.( 25MPa) |150%F.S.( 25MPa) | ||
Output signal | Zero Output 2mV 100mV (typical) 60mV (for 10kPa) | | ||
Accuracy | 0.25%FS (standard) | ||
Zero offset | ≤±2mV | ||
Long term stability | <0.2%FS/year | ||
Excitation | 5V (for 0.5-4.5Vdc rationmetric) | 24V (for 4-20mA) | 3.3V (for I2C) | ||
Compensated Temp. | - 10°c ~+70°c | ||
Operating Temp. | -40~+125°c | ||
Storage Temp. | -40~+125°c | ||
Zero Temp. Coefficient | |||
Span Temp. Coefficient | 0.02%F.S./ °c ( 100kpa) | 0.03%F.S. /°c (<100kpa) | ||
Bridge Resistance | Min. | Max. | Unit |
2600 | 5500 | ohm | |
Vibration | 20g (20— 5000HZ) | ||
Response time | ≤1ms | ||
Electrical connection | 3-wire or 4-wire | ||
Material of membrane | 316L | ||
Material of housing | 316L | ||
Sealing | Viton or NBR | ||
Filled oil | silicon oil | ||
Wire | silicon rubber shielded flexible wires | ||
Net weight | 28g | ||
