Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
1/
Residual chlorine dissolved ozone analyzer for drinking water quality measurement and drinking water ozone meter.
The probe uses a high-precision potential probe.
Feature
1.Protection level: IP65 (waterproof, dustproof, moisture-proof) 2.Digital LCD display and English operation menu. 3.The main components are imported from foreign famous brands. 4.High precision, high stability and strong anti-interference ability.
The advantages of the probe are that it does not require the addition of reagents, does not require the replacement of the membrane head, is simple to maintain, and has a service life twice that of other electrodes. The probe uses a high-precision potential probe. Due to the high-precision requirements, we also sent a free flow cell to make the measurement more accurate.
The main components are imported from foreign famous brands.
High precision, high stability and strong anti-interference ability.
Temperature compensation function: manual/automatic.
Watchdog: Make sure the meter doesn't die.
ABS plastic shell (waterproof, dustproof and moisture-proof).
Analog output: 4 ~ 20mA
Multiple parameters displayed simultaneously: ozone value, temperature, output current and range capability alarm etc.
Adopt advanced new constant pressure sensor. No need to replace membrane and reagent. It is easy to maintain, high sensitivity, high stability and fast response.

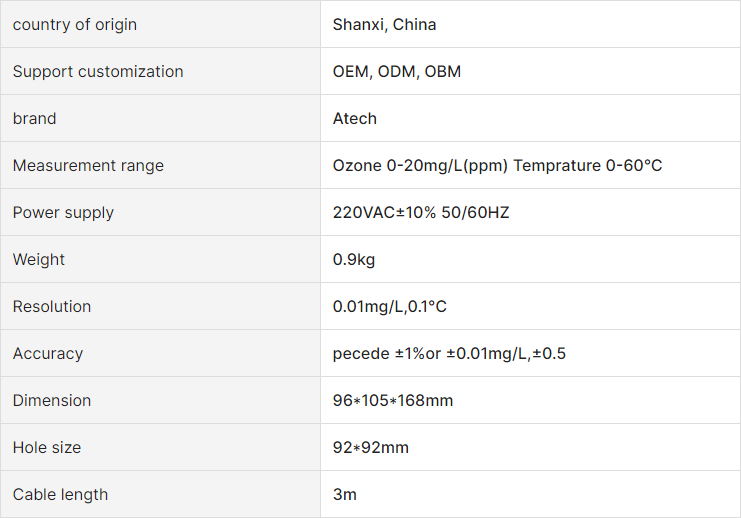

Product Specification
Technical Parameters
Measuring range
Ozone 0-20.00 mg/L (ppm)
resolution
0.01mg/L
Accuracy
± 1% or ± 0.01 mg/L,
Control interface
Two sets of on/off relay contacts, divided into high and low alarm control
Analog Output
4 ~ 20mA or RS485
Relay
The relay hysteresis value can be freely set. Relay load: 3A 220VAC/24VDC.
Working conditions
Ambient temperature 0 ~ 60 ℃, relative humidity ≤ 90%
The main components are imported from foreign famous brands.
High precision, high stability and strong anti-interference ability.
Temperature compensation function: manual/automatic.
Watchdog: Make sure the meter doesn't die.
ABS plastic shell (waterproof, dustproof and moisture-proof).
Analog output: 4 ~ 20mA
Multiple parameters displayed simultaneously: ozone value, temperature, output current and range capability alarm etc.
Adopt advanced new constant pressure sensor. No need to replace membrane and reagent. It is easy to maintain, high sensitivity, high stability and fast response.
Product Dimensions
Product Specification
Technical Parameters
Measuring range
Ozone 0-20.00 mg/L (ppm)
resolution
0.01mg/L
Accuracy
± 1% or ± 0.01 mg/L,
Control interface
Two sets of on/off relay contacts, divided into high and low alarm control
Analog Output
4 ~ 20mA or RS485
Relay
The relay hysteresis value can be freely set. Relay load: 3A 220VAC/24VDC.
Working conditions
Ambient temperature 0 ~ 60 ℃, relative humidity ≤ 90%
