Products Description
Submersible level sensor adopts 304 stainless steel housing and waterproof cable, can be put in water/oil/fuel tank or reservoir directly for liquid level measurement. The measuring range can be 0-1m/0-3m/0-5m/0-10m ~ 0-200m. Liquid level sensor has optional accuracy 0.5%FS or 0.3%FS, output signal 4-20mA/0-5V/RS485, power supply DC 24V/12V. The cable type and connection type are also customizable.
Product Features
Features:
1. Strong stability
2. Strong reliability
3. Strong anti-interference ability
4. Wide application
5. Easy to install
Product Specification
| Model | Atech-Series One | Atech-Series Two | Atech-Series Three |
| Shipping weight | 2.5kg | 4kg | 4kg |
| Measuring range * | 0-100m (0-1m, 0-3m, 0-5m, 0-7m, 0-10m, 0-12m, 0-15m, 0-20m, 0-30m, 0-50m, other customizable range) | ||
| Accuracy * | 0.5%FS, 0.3%FS | ||
| Output signal * | 2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 | ||
| Power supply * | DC 24V, DC 12V, DC 9-36V | ||
| Overload pressure | 200%FS | ||
| Medium | Water, oil, fuel, or other liquid compatible with 304 stainless steel | ||
| Medium temperature | 0~+60℃ (30~140℉) | ||
| Material | Diaphragm: 316L stainless steel Housing: 4mm thickness 304 stainless steel (anti-corrosion housing can be customizable), polyurethane rubber cable | ||
| Probe size | Φ26.5mm, length 105mm | ||
| Cable length | The default cable length is the same as maximum value of measuring range, and the minimum cable length is 5m. | ||
| Cable type * | Waterproof cable, metal tube, metallic hose | ||
| Connection * | Direct lead wire | Protection head | Protection head with LCD display |

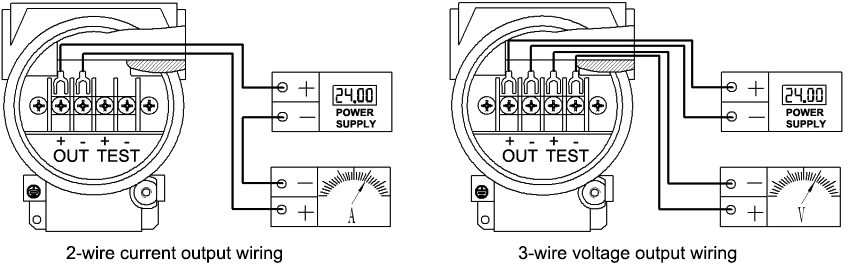

| Wiring | 2-wire: Red (V+), Green (output signal) 3-wire: Red (V+), Green (V-), Yellow (output signal) | See the wiring diagram below | See the wiring diagram below |
| Protection class | IP68 | ||
| Warranty | 12 months | ||
Product Dimensions
Product Features
Features:
1. Strong stability
2. Strong reliability
3. Strong anti-interference ability
4. Wide application
5. Easy to install
Product Dimensions
Product Specification
| Model | Atech-Series One | Atech-Series Two | Atech-Series Three |
| Shipping weight | 2.5kg | 4kg | 4kg |
| Measuring range * | 0-100m (0-1m, 0-3m, 0-5m, 0-7m, 0-10m, 0-12m, 0-15m, 0-20m, 0-30m, 0-50m, other customizable range) | ||
| Accuracy * | 0.5%FS, 0.3%FS | ||
| Output signal * | 2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 | ||
| Power supply * | DC 24V, DC 12V, DC 9-36V | ||
| Overload pressure | 200%FS | ||
| Medium | Water, oil, fuel, or other liquid compatible with 304 stainless steel | ||
| Medium temperature | 0~+60℃ (30~140℉) | ||
| Material | Diaphragm: 316L stainless steel Housing: 4mm thickness 304 stainless steel (anti-corrosion housing can be customizable), polyurethane rubber cable | ||
| Probe size | Φ26.5mm, length 105mm | ||
| Cable length | The default cable length is the same as maximum value of measuring range, and the minimum cable length is 5m. | ||
| Cable type * | Waterproof cable, metal tube, metallic hose | ||
| Connection * | Direct lead wire | Protection head | Protection head with LCD display |
| Wiring | 2-wire: Red (V+), Green (output signal) 3-wire: Red (V+), Green (V-), Yellow (output signal) | See the wiring diagram below | See the wiring diagram below |
| Protection class | IP68 | ||
| Warranty | 12 months | ||
