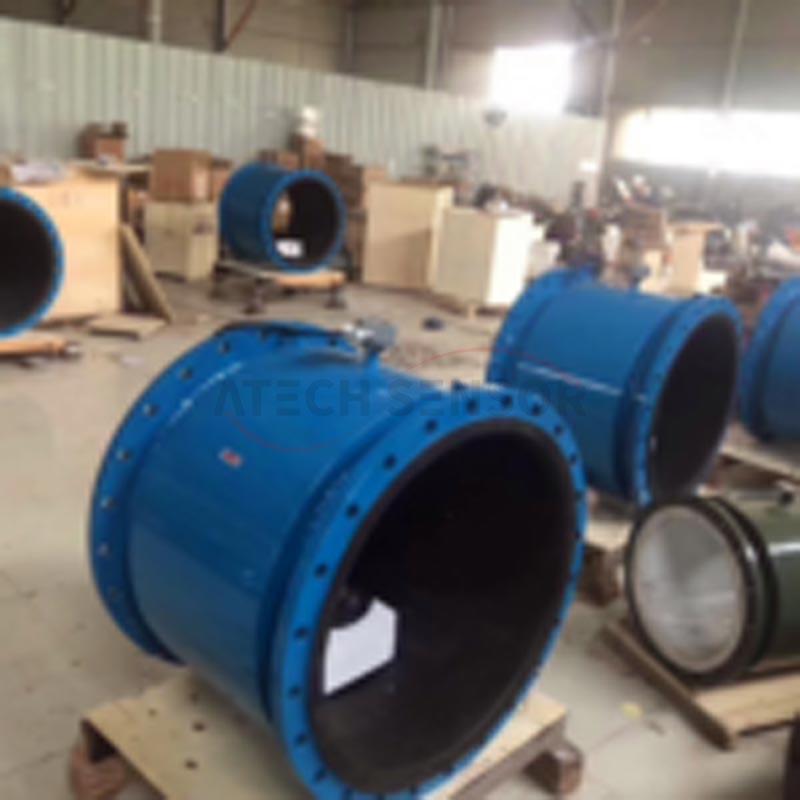

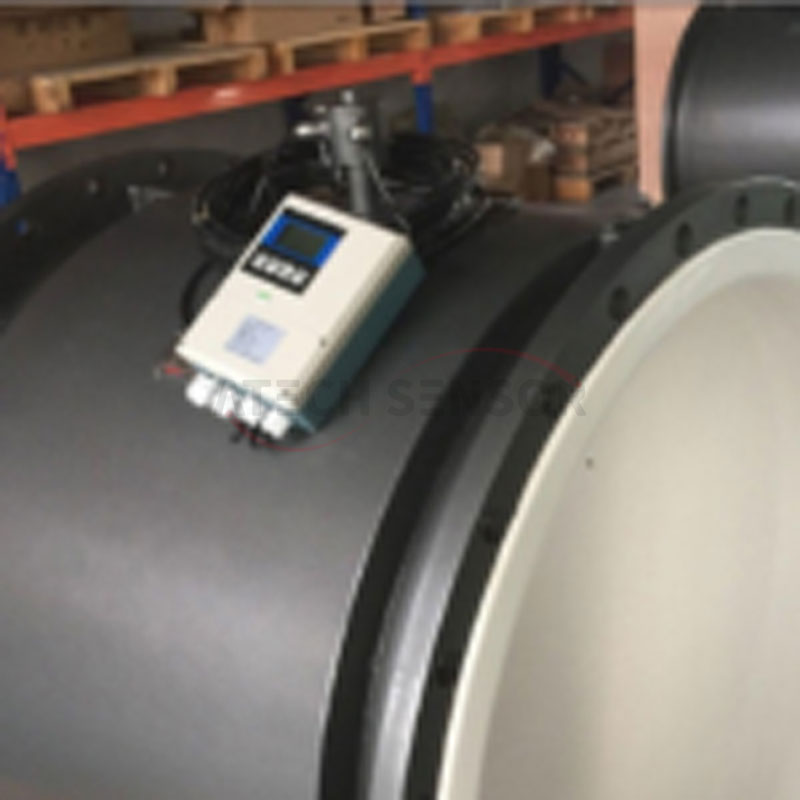

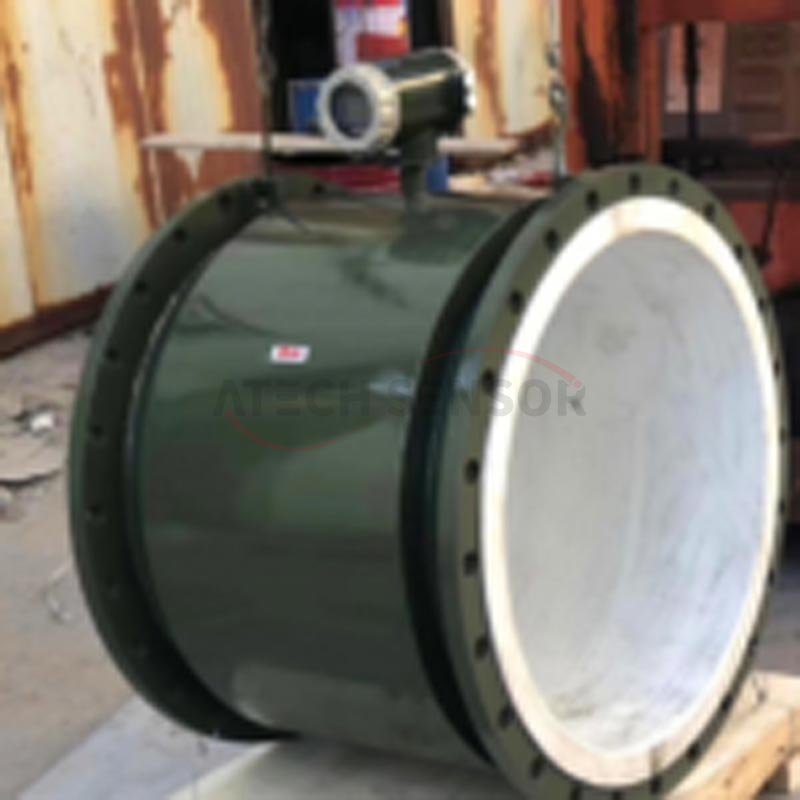

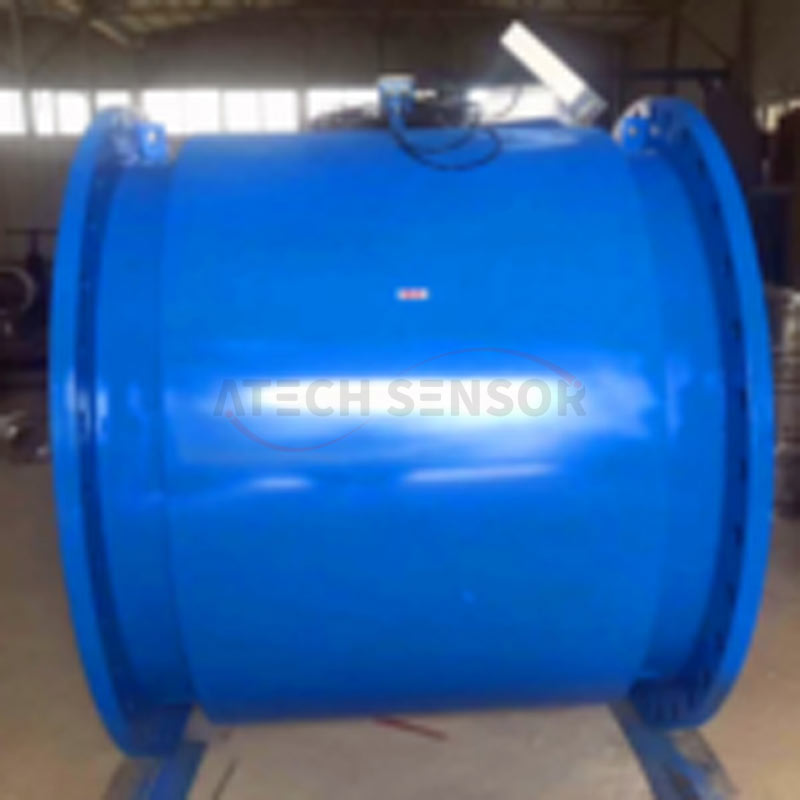

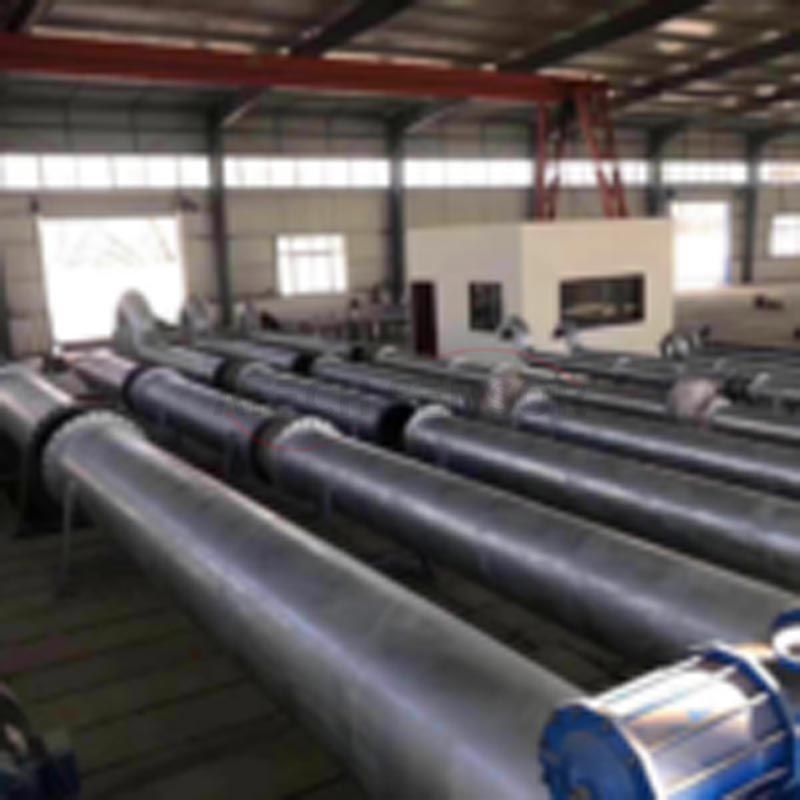

SI-3109 Electromagnetic Flow meter for large diameter pipe,which is electronics flow meter for large diameter pipe recycling water meter.
Magnetic flow meter can be used as Sewage flow meter for water flow rate measurement. For industrial waste water treatment, magnetic flow meter is your best choice. Because we can choice different material for electrode and lining.
Product Features
Large Diameter Pipe – Electromagnetic Flow Meter for Sewage/Wastewater,is composed of insertion electromagnetic sensor and electromagnetic flow converter,
used to measure the conductive liquid that electrical conductivity is greater than 5 us/cm,
it is used to measure the water, sewage, acid, alkali and other medium.
Suitable for measuring the large pipe of diameter DN300~DN3000mm.
Installation can be divided into a online installation type of the cut-off valve,and water control installation type without stop valves.
●Non-invasive, no moving parts flow sensing technology
●Accuracy 0.5% of actual flow
●Calibration pre-programmed to user’s specific applications
●Measures liquid flow in 2 to 36 inch
●Operates in high temperatures up to 170°F
Product Specification
| Electromagnetic flow meter | |
| Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
| Diameter | DN6~DN2200mm |
| Accuracy | ±0.5% |
| Medium temperature | <60ºC |
| Nominal pressure | GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
| DIN PN16,PN25,PN40,PN63 | |
| JIS10K,20K,40K | |
| ANSI Class150,Class300,Class600, others can be customized | |
| Flow rate | 0.3~10m/s |
| Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
| Electrode | 316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
| Lining material | Chloroprene rubber(CR), polyurethane rubber(PU) |
| Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
| Body material | Carbon steel (standard),Stainless steel(optional) |
| Power supply | 220VAC/24VDC/lithium battery |
| Signal output | Pulse and 4~20mA; (if use lithium battery, without signal output) |
| Communication | RS485,GPRS,Hart |
| Explosion-proof | EXdeibmIICT3-T6 |
| Protection proof | IP65 (compact type); IP67,IP68(suitable for remote type) |
| Work environment | Ambient temperature:-20~+60ºC,Ambient humidity:5%~90% |
| Power | <20W |
Product Dimensions
Product Features
Large Diameter Pipe – Electromagnetic Flow Meter for Sewage/Wastewater,is composed of insertion electromagnetic sensor and electromagnetic flow converter,
used to measure the conductive liquid that electrical conductivity is greater than 5 us/cm,
it is used to measure the water, sewage, acid, alkali and other medium.
Suitable for measuring the large pipe of diameter DN300~DN3000mm.
Installation can be divided into a online installation type of the cut-off valve,and water control installation type without stop valves.
●Non-invasive, no moving parts flow sensing technology
●Accuracy 0.5% of actual flow
●Calibration pre-programmed to user’s specific applications
●Measures liquid flow in 2 to 36 inch
●Operates in high temperatures up to 170°F
Product Dimensions
Product Specification
| Electromagnetic flow meter | |
| Medium | Domestic water, industrial water, raw water, ground water, urban sewage, industrial wastewater, the processed neutral pulp, pulp slurry, etc |
| Diameter | DN6~DN2200mm |
| Accuracy | ±0.5% |
| Medium temperature | <60ºC |
| Nominal pressure | GB 0.6MPa (DN700~DN2000) GB 1.0MPa (DN200~DN600) GB 1.6MPa (DN6~DN150) |
| DIN PN16,PN25,PN40,PN63 | |
| JIS10K,20K,40K | |
| ANSI Class150,Class300,Class600, others can be customized | |
| Flow rate | 0.3~10m/s |
| Straight pipe required | Upstream ≥5DN,downstream ≥3DN |
| Electrode | 316L (Suitable for domestic water, industrial water, raw water, underground water, sewage, etc.; not applicable to acid and alkali salt) |
| Lining material | Chloroprene rubber(CR), polyurethane rubber(PU) |
| Installation way | Carbon steel flange (standard), Stainless steel flange(optional) |
| Body material | Carbon steel (standard),Stainless steel(optional) |
| Power supply | 220VAC/24VDC/lithium battery |
| Signal output | Pulse and 4~20mA; (if use lithium battery, without signal output) |
| Communication | RS485,GPRS,Hart |
| Explosion-proof | EXdeibmIICT3-T6 |
| Protection proof | IP65 (compact type); IP67,IP68(suitable for remote type) |
| Work environment | Ambient temperature:-20~+60ºC,Ambient humidity:5%~90% |
| Power | <20W |
