Products Description
The intelligent electromagnetic energy meter (electromagnetic heat and cooling meter) consists of a flow measurement unit, a heat calculation unit and a paired temperature sensor (PT1000).
The flow meter uses the Faraday electromagnetic induction principle to measure flow, and combined with the supply and return water temperature signals of the paired temperature sensor, it can calculate, accumulate, store and display the cold heat absorbed or released in the heat exchange loop.
The flow meter’s flow and energy calculation unit CPU and sampling module all adopt internationally advanced microcontrollers, which have large memory capacity and high equipment reliability. The heat calculation can truly realize consistent value calculation and achieve high accuracy. The complete set of matched temperature sensors uses platinum resistor Pt1000, and its matching error is ≤0.1℃

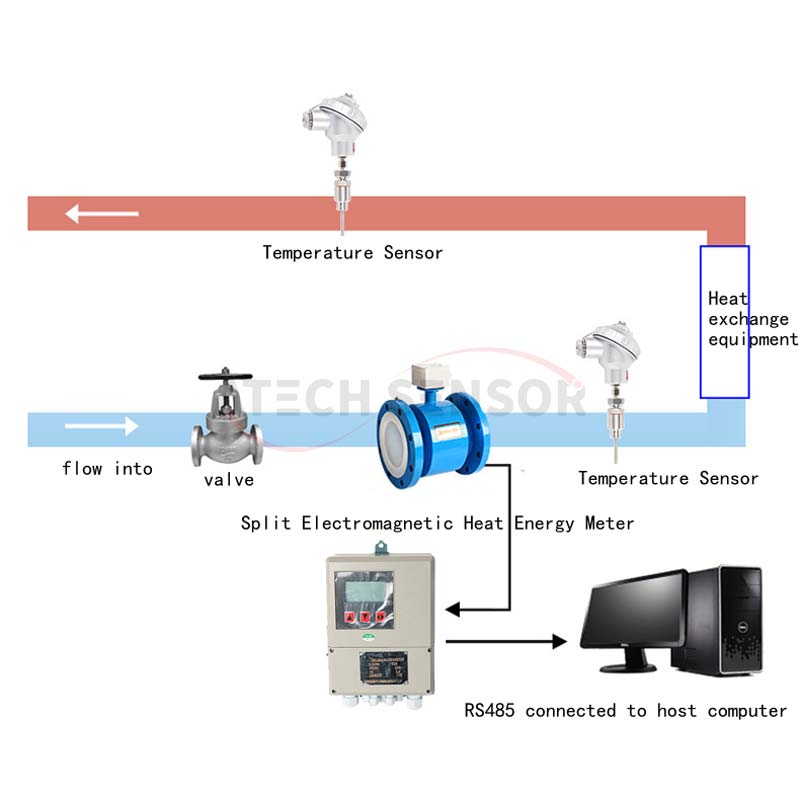

Paired temperature sensors (a pair of Pt1000 platinum resistance temperature sensors) are installed on the inlet and outlet pipes of the heat exchange circuit of the air conditioning or heating system to accurately collect the temperature values of the supply and return pipes and transmit signals.
Install the flow sensor (pipeline electromagnetic flowmeter) on the inlet or outlet pipe to accurately collect and calculate the flow value of the pipe network and transmit the signal.
The energy calculator is used to receive temperature and flow signals and calculate and store energy consumption. The effective data in the energy calculator (such as accumulated heat value, cooling capacity value, equivalent flow value, supply and return water temperature and temperature difference) is transmitted to the computer to realize intelligent management.
Product Features
●The electromagnetic heat meter uses a 16-bit microcontroller for data calculation and a platinum thermal resistor for temperature measurement. Electromagnetic flowmeters measure flow. It has high measurement accuracy, stable and reliable operation, and excellent performance.
●The measurement accuracy is not affected by changes in parameters such as viscosity, density, pressure, conductivity, and fluid distribution of the heat-carrying fluid.
●There are no resistance parts in the measuring tube, no pressure loss, and it is not affected by poor water quality.
●Wide measuring flow range. The flow rate can be set arbitrarily within the range of 1m/s-10m/s.
●The electromagnetic heat meter has a large-screen LCD display. It can read clearly under strong light and no light conditions.
●It has the function of simultaneously displaying accumulated heat, accumulated flow, instantaneous heat, instantaneous flow, inlet water temperature, outlet water temperature, temperature difference and other data. Parameters such as flow rate and power outage records can be queried and displayed.
●The electromagnetic calorimeter adopts the thermal enthalpy correction method of random temperature changes. Ensure accurate measurement under different water temperatures.
●It has unified DC signal and frequency signal output functions. And this function can switch between heat and flow parameters.
●It has batch processing (quantitative output), equivalent pulse output, and keyed direct clearing functions.
●With digital communication output function. Facilitate remote communication.
●With password protection function. Users without password cannot modify working parameters.
Product Specification
| Medium temperature | -30ºC~180ºC |
| Power supply | 220V AC(110VAC ~245VAC),24VDC |
| Power consumption | ≤20W (matching power consumption) |
| Accuracy level | Level 0.5 or Level 1 (matching accuracy) |
| Protection level | IP65 |
| Ambient temperature | Category A |
| Temperature resolution | 0.01ºC |
| Optional temperature measurement range | -30ºC~180ºC |
| Temperature difference measuring range | 1ºC~90ºC |
| Analog output | 4 ~ 20mA DC / 600 load resistance (switchable between heat and flow parameters) |
| Pulse output | Maximum frequency 5000Hz, pulse width 0.1ms ~ 999.9ms (can switch between heat and flow parameters) |
| communication | RS-485 (RS-232, M-BUS, HART, etc. optional) |
| Nominal pressure | 0.6MPa ~4MPa |
Product Dimensions
Product Features
●The electromagnetic heat meter uses a 16-bit microcontroller for data calculation and a platinum thermal resistor for temperature measurement. Electromagnetic flowmeters measure flow. It has high measurement accuracy, stable and reliable operation, and excellent performance.
●The measurement accuracy is not affected by changes in parameters such as viscosity, density, pressure, conductivity, and fluid distribution of the heat-carrying fluid.
●There are no resistance parts in the measuring tube, no pressure loss, and it is not affected by poor water quality.
●Wide measuring flow range. The flow rate can be set arbitrarily within the range of 1m/s-10m/s.
●The electromagnetic heat meter has a large-screen LCD display. It can read clearly under strong light and no light conditions.
●It has the function of simultaneously displaying accumulated heat, accumulated flow, instantaneous heat, instantaneous flow, inlet water temperature, outlet water temperature, temperature difference and other data. Parameters such as flow rate and power outage records can be queried and displayed.
●The electromagnetic calorimeter adopts the thermal enthalpy correction method of random temperature changes. Ensure accurate measurement under different water temperatures.
●It has unified DC signal and frequency signal output functions. And this function can switch between heat and flow parameters.
●It has batch processing (quantitative output), equivalent pulse output, and keyed direct clearing functions.
●With digital communication output function. Facilitate remote communication.
●With password protection function. Users without password cannot modify working parameters.
Product Dimensions
Product Specification
| Medium temperature | -30ºC~180ºC |
| Power supply | 220V AC(110VAC ~245VAC),24VDC |
| Power consumption | ≤20W (matching power consumption) |
| Accuracy level | Level 0.5 or Level 1 (matching accuracy) |
| Protection level | IP65 |
| Ambient temperature | Category A |
| Temperature resolution | 0.01ºC |
| Optional temperature measurement range | -30ºC~180ºC |
| Temperature difference measuring range | 1ºC~90ºC |
| Analog output | 4 ~ 20mA DC / 600 load resistance (switchable between heat and flow parameters) |
| Pulse output | Maximum frequency 5000Hz, pulse width 0.1ms ~ 999.9ms (can switch between heat and flow parameters) |
| communication | RS-485 (RS-232, M-BUS, HART, etc. optional) |
| Nominal pressure | 0.6MPa ~4MPa |
