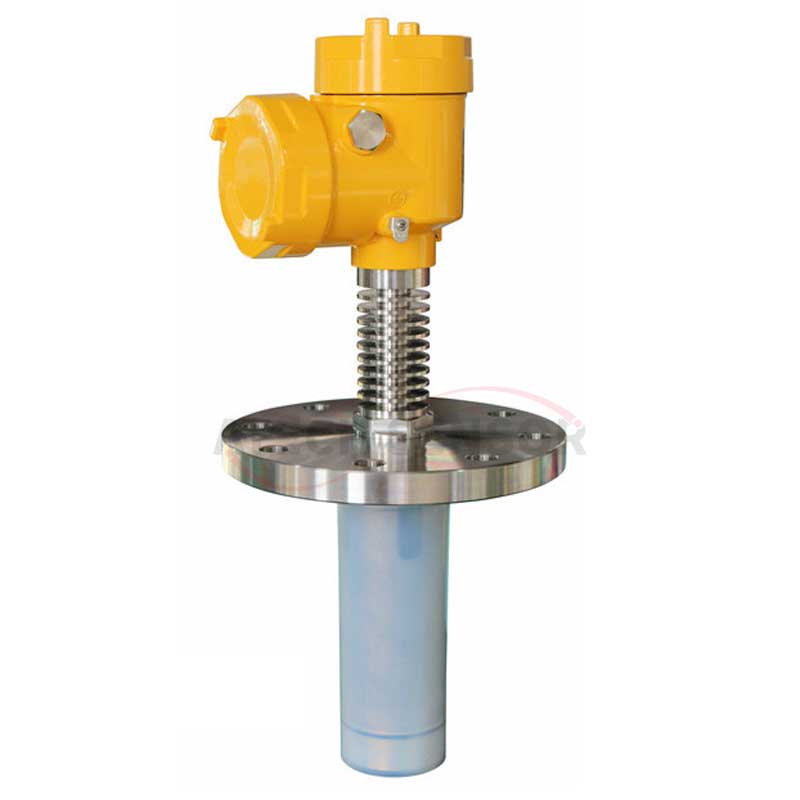

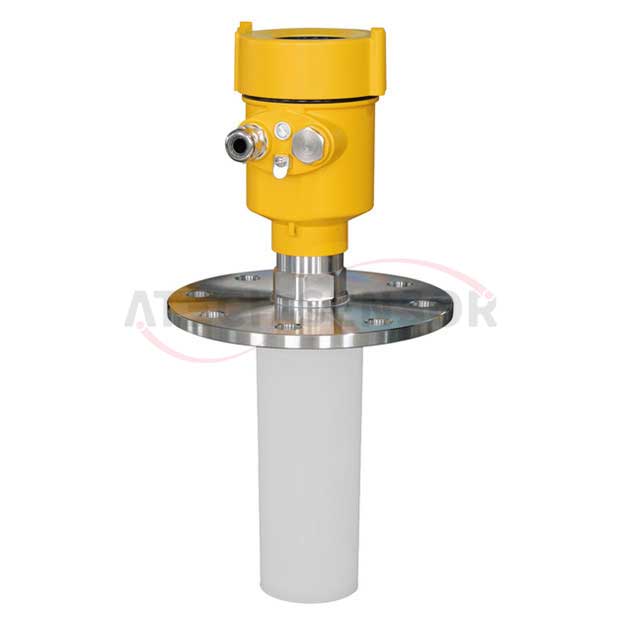

Products Description
The radar is mainly suitable for measuring environments with strong corrosiveness, strong steam, and acid gas. After the steam condenses on the sheath, it will not affect the radar transmission and reception of true echo signals. False echo will be generated at the end of the sheath to store false echo Normal use after
The shortcoming of the radar is that the anti-corrosion sheath is currently only applicable to DN80 and DN100 flanges. If a PTFE gasket is installed after the flange is larger than DN100, it cannot withstand the pressure; the installation of the sheath causes the blind zone to increase to 0.45m and the range is very small. In the case of 902T radar is not recommended.
Product Features
● Any medium with a dielectric constant greater than or equal to 1.4 can be measured.
● Generally used to measure media with a viscosity of ≤500cst and not prone to adhesion.
●It has a strong ability to suppress steam and foam, and the measurement is not affected.
● For liquid materials with a relatively small dielectric constant, a double-probe measurement method can be used to ensure good and accurate measurement accuracy.
Product Specification
| Product Name | 26GHz Guided Wave Radar Sensor for Strong Steam Working Environment |
| range | Measuring range includes dead zone |
| temperature | The ambient temperature requirement is -30 ~ 65 ºC. If it is lower than -30 ºC, heat tracing is required. Process temperature range Solid standard type: -40 ~ 130 ºC High temperature type: -40 ~ 240 ºC |
| application | Measurement of powder, granules, blocks and other solids; hydraulic and liquid conditions |
| output signal | RS485 output signal with single selection |
| protection class | IP67 |
| power supply | 12-24VDC/220VAC |
| advantage | Can be used in more complicated working environment, can be used in measurement environments such as strong corrosiveness, strong steam, acid gas, etc; easy to crystallize environment |
| Disadvantage | Price is more expensive than ultrasonic level gauge |
| measurement accuracy | ±1 mm |
Product Dimensions
Product Features
● Any medium with a dielectric constant greater than or equal to 1.4 can be measured.
● Generally used to measure media with a viscosity of ≤500cst and not prone to adhesion.
●It has a strong ability to suppress steam and foam, and the measurement is not affected.
● For liquid materials with a relatively small dielectric constant, a double-probe measurement method can be used to ensure good and accurate measurement accuracy.
Product Dimensions
Product Specification
| Product Name | 26GHz Guided Wave Radar Sensor for Strong Steam Working Environment |
| range | Measuring range includes dead zone |
| temperature | The ambient temperature requirement is -30 ~ 65 ºC. If it is lower than -30 ºC, heat tracing is required. Process temperature range Solid standard type: -40 ~ 130 ºC High temperature type: -40 ~ 240 ºC |
| application | Measurement of powder, granules, blocks and other solids; hydraulic and liquid conditions |
| output signal | RS485 output signal with single selection |
| protection class | IP67 |
| power supply | 12-24VDC/220VAC |
| advantage | Can be used in more complicated working environment, can be used in measurement environments such as strong corrosiveness, strong steam, acid gas, etc; easy to crystallize environment |
| Disadvantage | Price is more expensive than ultrasonic level gauge |
| measurement accuracy | ±1 mm |
