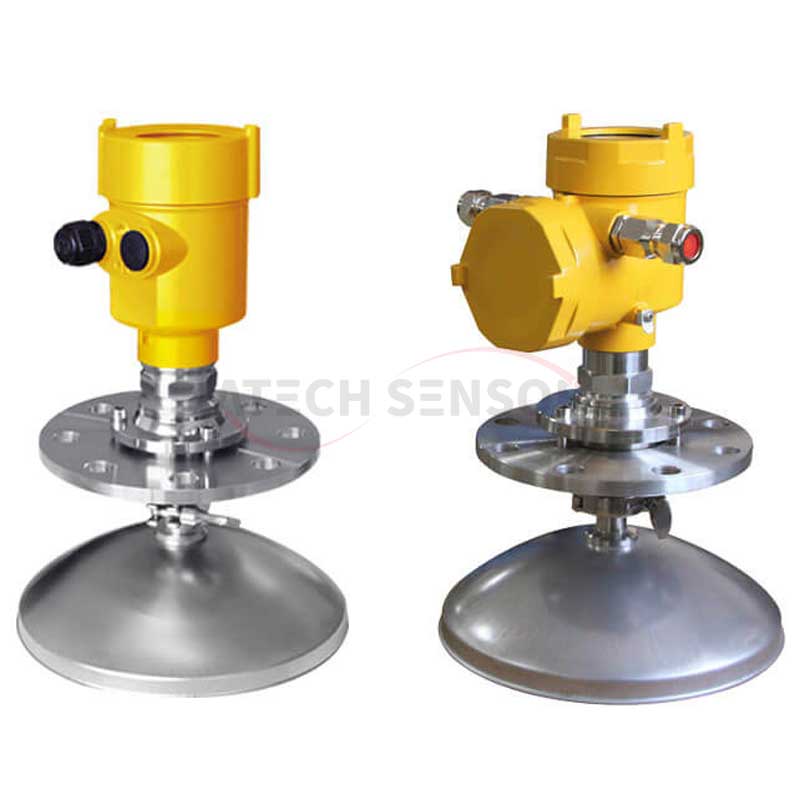

Products Description
1. For the parabolic radar, the length of the standard antenna is short. In most cases, the antenna cannot be extended to take over the tube. Because the transmission angle of the parabolic antenna is smaller (4 °), when the tube is less than 300mm, the antenna will not have a small impact on the measurement (The antenna has the strongest signal when it reaches the tank).
2. When the takeover is larger than 300mm, you need to choose an extended parabolic antenna. The extended parabolic antenna will also affect the signal amplitude, so the ideal state during installation is to find a place where the thickness of the tank roof is thin, and it is not necessary to lengthen the antenna, such as the observation port.
3.Purge interface, the thread specification of solid-state radar purge interface is 1 / 8NPT, 8mm diameter fast purge connector on the interface
Product Features
●No blind spot, high precision.
●Two-wire technology, an excellent alternative to differential pressure instruments, magnetostrictive, radio frequency admittance, and magnetic flap instruments.
●Not affected by pressure changes, temperature changes, inert gas, vacuum, smoke, steam and other environmental factors.
●Easy installation, durable and maintenance-free.
●HART or PROFIBUS-PA communication protocol and Fund fieldbus protocol, easy calibration, easy on-site calibration operation through digital LCD display, simple configuration setting and programming through software GDPF.
●Sensitive measurement and fast refresh speed.
●Suitable for high temperature conditions, up to 200℃ process temperature, up to 300℃ when using high temperature extension antenna.
Product Specification
| temperature | "The ambient temperature requirement is -30 ~ 65 ° C. If it is below -30 ° C, heat tracing is required. Process temperature range Solid standard type: -40 ~ 130 ℃ High temperature type: -40 ~ 240 ℃ " |
| application | Measurement of powder, granules, blocks and other solids; hydraulic and liquid conditions |
| output signal | RS485 output signal with single selection |
| Explosion proof | "Single-cavity intrinsically safe explosion-proof type: Exia IIC T6 Ga, when using on-site in explosion-proof occasions, it is required to install a safety barrier in the control room Double-chamber flameproof type: Exd IIC T6, no need for central control and no safety barrier when used in explosion-proof occasions. When on-site power is 220V, only dual-chamber radar can be selected " |
| Protection class | IP67 |
| power supply | 12-24VDC/220VAC |

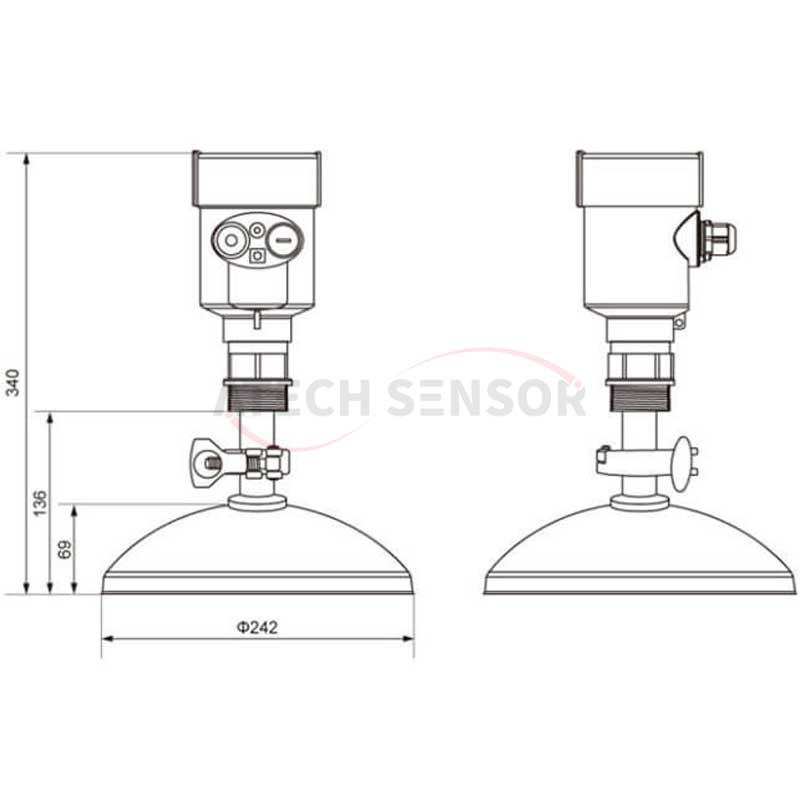

Product Dimensions
Product Features
●No blind spot, high precision.
●Two-wire technology, an excellent alternative to differential pressure instruments, magnetostrictive, radio frequency admittance, and magnetic flap instruments.
●Not affected by pressure changes, temperature changes, inert gas, vacuum, smoke, steam and other environmental factors.
●Easy installation, durable and maintenance-free.
●HART or PROFIBUS-PA communication protocol and Fund fieldbus protocol, easy calibration, easy on-site calibration operation through digital LCD display, simple configuration setting and programming through software GDPF.
●Sensitive measurement and fast refresh speed.
●Suitable for high temperature conditions, up to 200℃ process temperature, up to 300℃ when using high temperature extension antenna.
Product Dimensions
Product Specification
| temperature | "The ambient temperature requirement is -30 ~ 65 ° C. If it is below -30 ° C, heat tracing is required. Process temperature range Solid standard type: -40 ~ 130 ℃ High temperature type: -40 ~ 240 ℃ " |
| application | Measurement of powder, granules, blocks and other solids; hydraulic and liquid conditions |
| output signal | RS485 output signal with single selection |
| Explosion proof | "Single-cavity intrinsically safe explosion-proof type: Exia IIC T6 Ga, when using on-site in explosion-proof occasions, it is required to install a safety barrier in the control room Double-chamber flameproof type: Exd IIC T6, no need for central control and no safety barrier when used in explosion-proof occasions. When on-site power is 220V, only dual-chamber radar can be selected " |
| Protection class | IP67 |
| power supply | 12-24VDC/220VAC |
