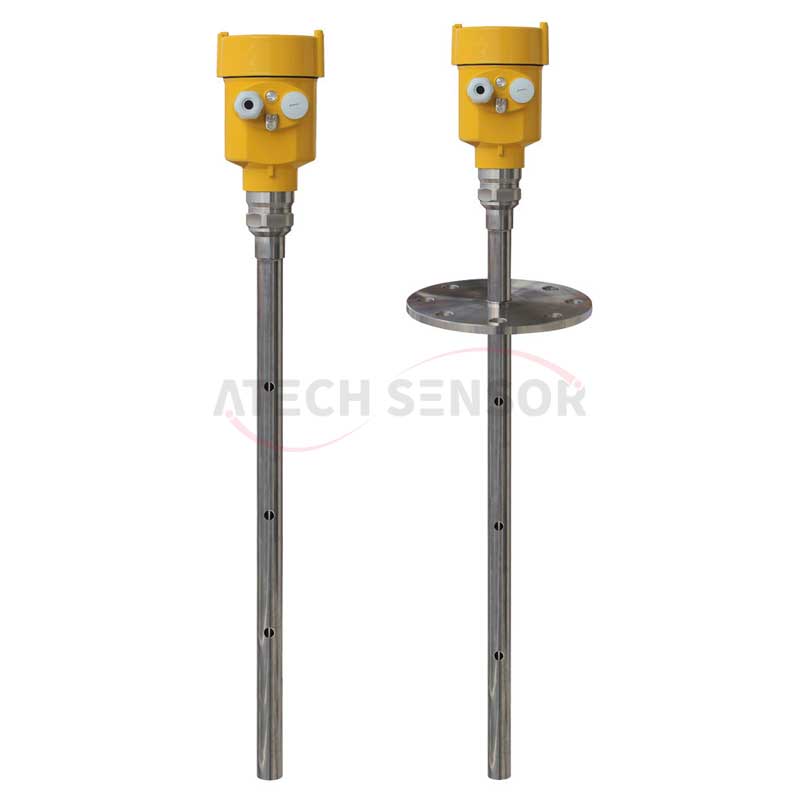

Products Description
The sound wave is a mechanical wave with a density of 40; gas, liquid and solid 41; propagation depends on the influence of the medium, temperature and pressure on the measurement. Need temperature compensation. Temperature and pressure measurement are generally not applicable. First of all, the ultrasonic level gauge has a temperature limit. Generally speaking, the temperature of the probe cannot exceed 80 degrees, and the propagation speed of sound waves is greatly affected by temperature. Secondly, the ultrasonic level gauge is greatly affected by the pressure, generally within 0.3MPa, because the ultrasonic wave is emitted by the vibration of the piezoelectric material. When the pressure is too high, the sound part will be affected. Third, when the fog or dust in the measurement environment is large, the measurement effect is not good. The radar level gauge emits high-frequency pulses and propagates along the cable. When the pulse is in contact with the material surface, it is reflected by the receiver inside the instrument and the distance signal is converted into a material level signal. The electromagnetic wave is used as the detection signal, which is reflected to the interface as the dielectric constant changes. Electromagnetic waves can propagate in vacuum without being affected by changes in temperature and pressure. Therefore, it can be used in a high temperature and high pressure environment. The measurement of very low dielectric constant media is not applicable. The radar tube uses electromagnetic waves and is not affected by the degree of vacuum. It has a wide range of applications in terms of medium temperature and pressure. The emergence of high-frequency radar tubes makes the application range of radar tubes wider. Therefore, the radar tube is an ideal choice for level measurement.
Product Features
●Good stability, the long-term stability of full scale and zero position can reach 0.1%FS/year. In the compensation temperature range of 0 ~ 70 ℃, the temperature drift is less than 0.1%FS, and less than 0.3%FS in the entire allowable operating temperature range.
● With reverse protection and current limiting protection circuits, the transmitter will not be damaged if the positive and negative poles are connected in reverse during installation. In the event of an abnormality, the transmitter will automatically limit to less than 35MA.
● Solid-state structure, no moving parts, high reliability, and long service life.
●Easy installation, simple structure, economical and durable.
Product Specification
| Suitable for Medium: | Liquids, particularly low dielectric constant liquid |
| Application: | Measuring No ion water, deoxygenated water and other liquids |
| Explosion-proof Grade: | Exia IIC T6 Ga/Exd IIC T6 Gb |
| Measuring Range: | 6m |
| Antenna: | Coaxial tube type antenna |
| Accuracy: | ±50mm |
| Process Temperature: | (-40～250)℃ |
| Process pressure: | (-0.1～4)MPa |
| Signal output: | (4～20)mA/HART |
| The Scene Display: | Four LCD/Can be programmed |
| Power Source: | Two-wire (DC24V), Four-wire(DC24V/AC220V) |
| Shell: | Aluminum /Plastic |
| Connection: | Flange (optional) / Thread |
| Frequency: | 500MHz-1.8GHz |
Product Dimensions
Product Features
●Good stability, the long-term stability of full scale and zero position can reach 0.1%FS/year. In the compensation temperature range of 0 ~ 70 ℃, the temperature drift is less than 0.1%FS, and less than 0.3%FS in the entire allowable operating temperature range.
● With reverse protection and current limiting protection circuits, the transmitter will not be damaged if the positive and negative poles are connected in reverse during installation. In the event of an abnormality, the transmitter will automatically limit to less than 35MA.
● Solid-state structure, no moving parts, high reliability, and long service life.
●Easy installation, simple structure, economical and durable.
Product Dimensions
Product Specification
| Suitable for Medium: | Liquids, particularly low dielectric constant liquid |
| Application: | Measuring No ion water, deoxygenated water and other liquids |
| Explosion-proof Grade: | Exia IIC T6 Ga/Exd IIC T6 Gb |
| Measuring Range: | 6m |
| Antenna: | Coaxial tube type antenna |
| Accuracy: | ±50mm |
| Process Temperature: | (-40～250)℃ |
| Process pressure: | (-0.1～4)MPa |
| Signal output: | (4～20)mA/HART |
| The Scene Display: | Four LCD/Can be programmed |
| Power Source: | Two-wire (DC24V), Four-wire(DC24V/AC220V) |
| Shell: | Aluminum /Plastic |
| Connection: | Flange (optional) / Thread |
| Frequency: | 500MHz-1.8GHz |
