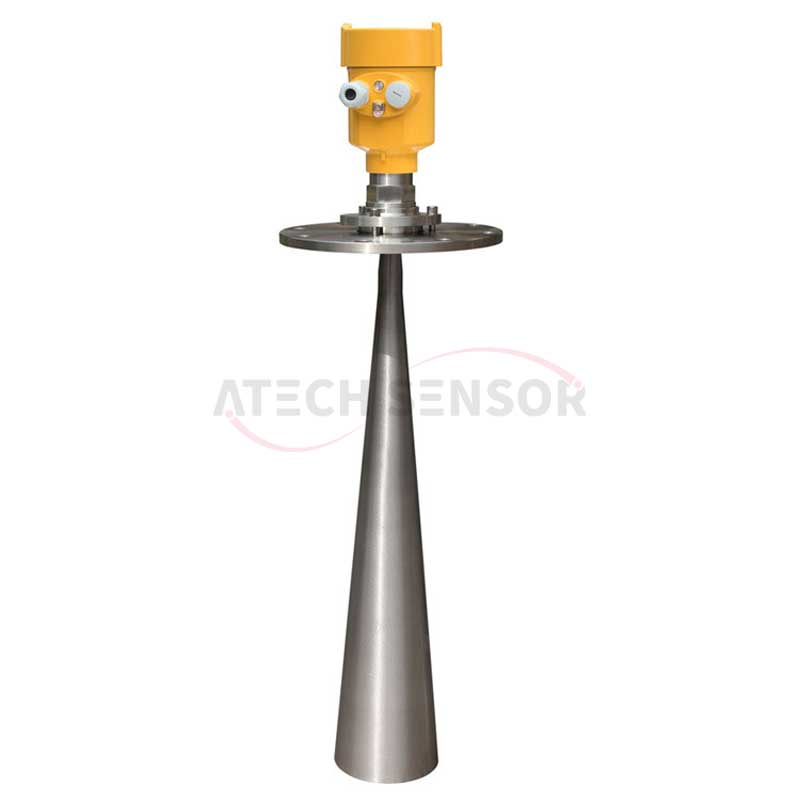

Products Description
Radar Level Meter can measure the distance, level and volume of liquid, sticky,solid.Application in electric power,metallurgy, petroleum, shemical, food, medication, water, civic industry. They can work in high tempreture, high pressure, corrosion, dusty environment.
According to different measurement principles, radar level gauges can be divided into two types. It is a radar level gauge that controls the liquid level, and its accuracy is generally about 10mm; the other is a radar level gauge, which is used for precise measurement and settlement, with an accuracy of 1mm. Structurally, it is divided into rod antenna, horn antenna and cable antenna, debugging, installing and using the analog signal output by the radar level gauge. The digital signal is superimposed on it by 4~20mADC to realize the compatibility of analog signal and digital signal, conforming to HART protocol. It can provide users with more attractive solutions, especially suitable for large fluctuations, condensation, suspension, viscous slurries, dirty media, and corrosive liquid level measurement. It has a continuous frequency self-calibration function to ensure stable measurement accuracy; it uses HART protocol for digital communication, and uses communication equipment or portable handheld devices to process liquid level variables; the output signal is an analog signal and a HART digital signal superimposed. Using the 4-20mAhar manual operator, the output signal can be divided into liquid level, calculated volume or standard volume; all configuration information and programs are stored in non-erasable memory. When the power is interrupted, all data can be restored; the frequency is continuously self-calibrated to ensure the accuracy of the level gauge.
Product Features
● No maintenance required and strong operability
●Easy maintenance and simple operation
● Wide application range, can measure almost all media
●Continuous and accurate measurement
● Has the function of suppressing interference echo
●Accurate, safe and energy-saving
Product Specification
| Measuring range | 0~30 m |
| Process connection | thread, flange |
| Medium temperature | -40 °C ~ 150 °C |
| Process pressure | 0.1 ~ 4.0MPa |
| Accuracy | ± 3mm |
| Protection grade | IP67 |
| Frequency range | 6GHz, 26GHz |
| Explosion-proof grade | Exia ⅡC T6 GaExib CT6 Gb |
| Signal output | 4-20mA/HART (two / four), RS485/ Mod bus |
| Type | guided wave radar, intelligent radar, 26 GH high frequency radar |

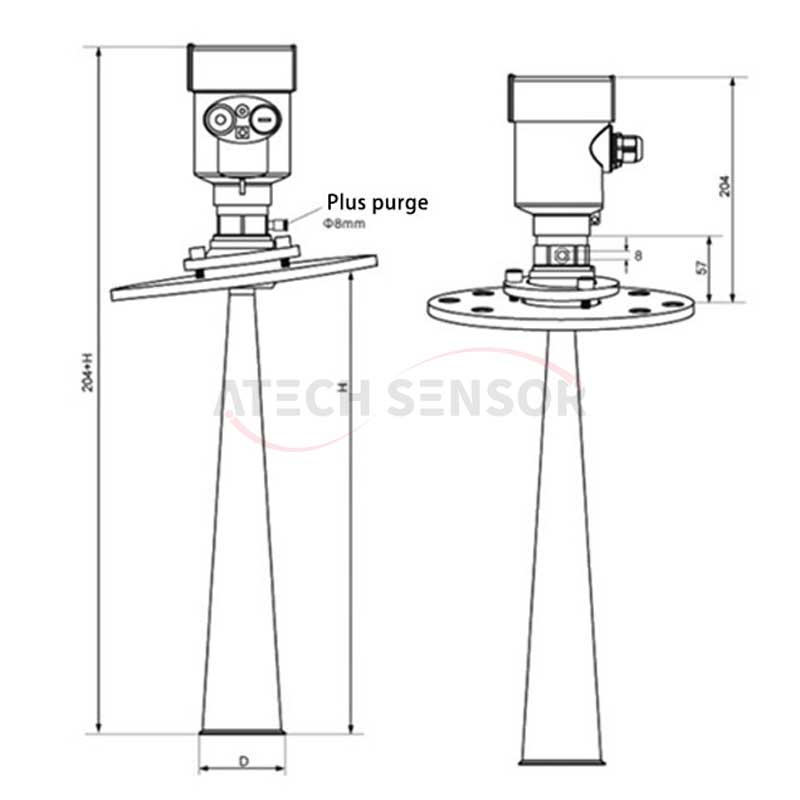

Product Dimensions
Product Features
● No maintenance required and strong operability
●Easy maintenance and simple operation
● Wide application range, can measure almost all media
●Continuous and accurate measurement
● Has the function of suppressing interference echo
●Accurate, safe and energy-saving
Product Dimensions
Product Specification
| Measuring range | 0~30 m |
| Process connection | thread, flange |
| Medium temperature | -40 °C ~ 150 °C |
| Process pressure | 0.1 ~ 4.0MPa |
| Accuracy | ± 3mm |
| Protection grade | IP67 |
| Frequency range | 6GHz, 26GHz |
| Explosion-proof grade | Exia ⅡC T6 GaExib CT6 Gb |
| Signal output | 4-20mA/HART (two / four), RS485/ Mod bus |
| Type | guided wave radar, intelligent radar, 26 GH high frequency radar |
