Products Description
The buoy water quality monitoring station can measure the hydrological, water quality and meteorological parameters in lakes or the Yangtze River Basin in real time. The system integrates data acquisition, display, storage and transmission, and has a hydrological SMS alarm function. It has the characteristics of multiple measurement parameters, high measurement accuracy, large storage capacity, convenient networking, and stable operation. The buoy adopts an unattended intelligent control system to complete the control of multiple sensors and the transmission of data; the solar panels and large-capacity batteries form a solar power supply system to ensure the power required for the system to work in the field for a long time; the buoy body is made of ultra-high molecular polyethylene material, which has good anti-corrosion ability, prevents biological attachment, does not fade, is non-toxic, has strong anti-collision ability, resists lightning, and is non-magnetic, which is suitable for complex hydrological and hydrodynamic conditions such as reservoirs.
Product Features
●Supports universal GPRS remote communication mode, and can automatically switch the communication mode according to the local communication conditions;
●The acquisition interface supports universal analog, switch, pulse, digital and other interfaces, matches the current site sensor equipment, and supports certain expansion;
●Suitable for harsh outdoor working environment, low power consumption, can ensure long-term stable operation;
●With remote restart and wake-up functions, it is convenient to remotely detect and troubleshoot the equipment;
●Supports custom acquisition frequency, and supports site information addition in communication information;
●With local storage, it can guarantee more than 30 days in the event of interruption with the data communication network Local storage of data;
● With continuous service monitoring and connection functions, on-site monitoring equipment needs to collect and upload data uninterruptedly all year round, supporting both active reporting and response;
● Provide database packages for the data collection platform to call, so that the on-site communication equipment can establish a communication connection with the server through this function;
● Hydrological data: The shortest collection interval is 1 minute, and the uploaded data stream includes the site name, time, data type and data value;
● Video data: The collection interval is adjustable, the shortest collection interval is 2 minutes, and the uploaded data stream includes the site name, time and pictures or videos.
Product Specification
| Buoy material | High molecular polyethylene |
| Structure | 304 Stainless Steel |
| Dimensions | 1000*1000*830mm (length*width*height) |
| Carrying buoyancy | 120Kg |
| Wind and wave resistance level | Level 3~4 |

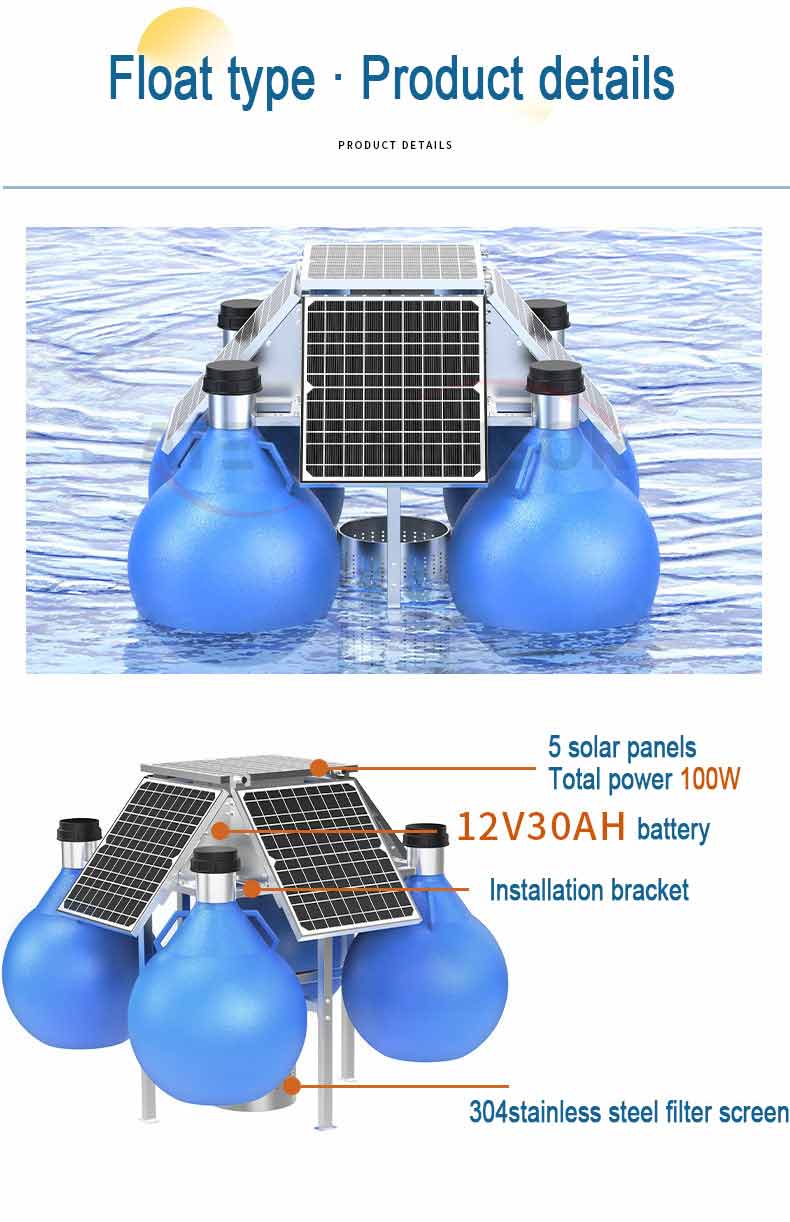

| Power supply mode | 5 solar panels with a total power of 100W 12V30AH battery |
| Power supply continuity | Can work normally on 7-15 rainy days |
| Communication method | 4G |
| Protection level | IP66 |

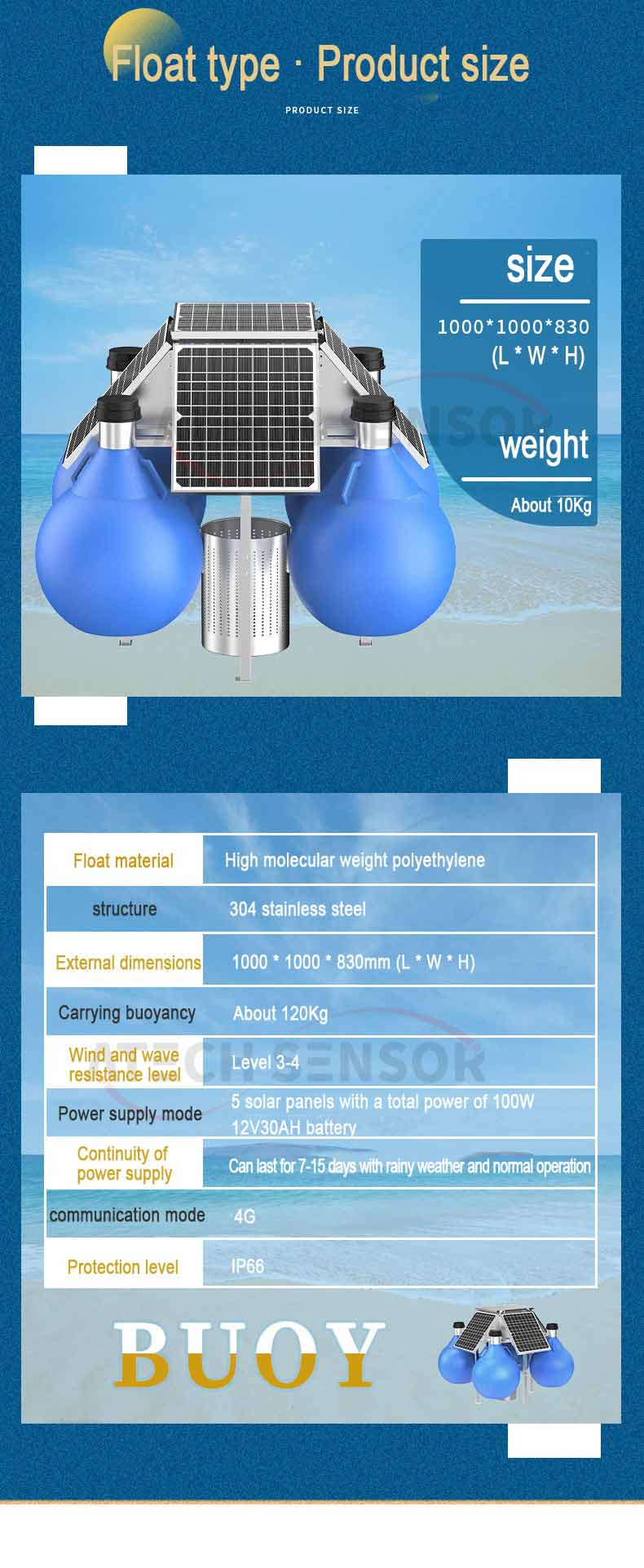

Product Dimensions
Product Features
●Supports universal GPRS remote communication mode, and can automatically switch the communication mode according to the local communication conditions;
●The acquisition interface supports universal analog, switch, pulse, digital and other interfaces, matches the current site sensor equipment, and supports certain expansion;
●Suitable for harsh outdoor working environment, low power consumption, can ensure long-term stable operation;
●With remote restart and wake-up functions, it is convenient to remotely detect and troubleshoot the equipment;
●Supports custom acquisition frequency, and supports site information addition in communication information;
●With local storage, it can guarantee more than 30 days in the event of interruption with the data communication network Local storage of data;
● With continuous service monitoring and connection functions, on-site monitoring equipment needs to collect and upload data uninterruptedly all year round, supporting both active reporting and response;
● Provide database packages for the data collection platform to call, so that the on-site communication equipment can establish a communication connection with the server through this function;
● Hydrological data: The shortest collection interval is 1 minute, and the uploaded data stream includes the site name, time, data type and data value;
● Video data: The collection interval is adjustable, the shortest collection interval is 2 minutes, and the uploaded data stream includes the site name, time and pictures or videos.
Product Dimensions
Product Specification
| Buoy material | High molecular polyethylene |
| Structure | 304 Stainless Steel |
| Dimensions | 1000*1000*830mm (length*width*height) |
| Carrying buoyancy | 120Kg |
| Wind and wave resistance level | Level 3~4 |
| Power supply mode | 5 solar panels with a total power of 100W 12V30AH battery |
| Power supply continuity | Can work normally on 7-15 rainy days |
| Communication method | 4G |
| Protection level | IP66 |
