Products Description

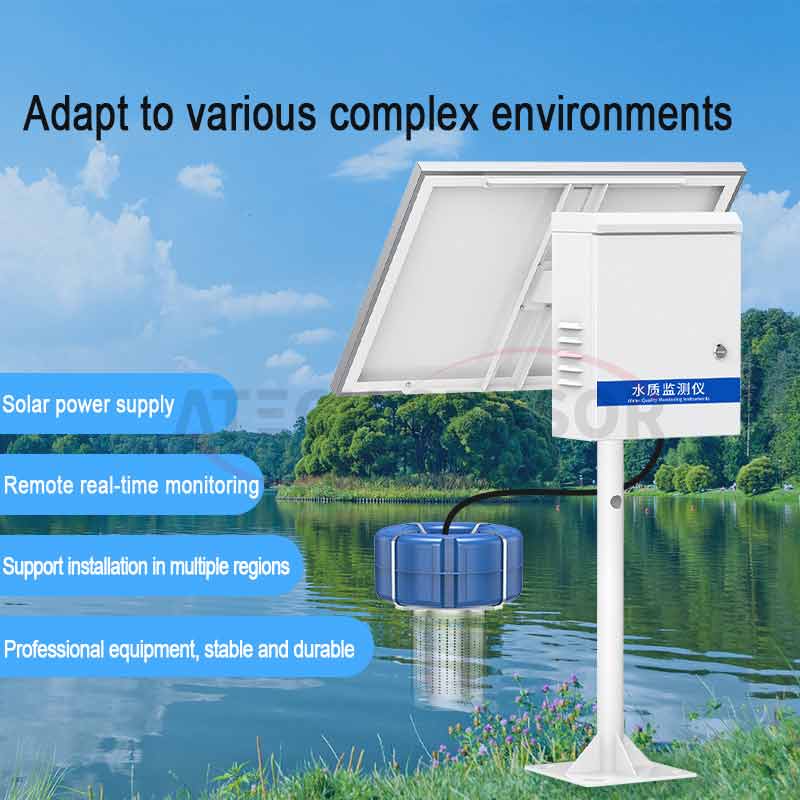

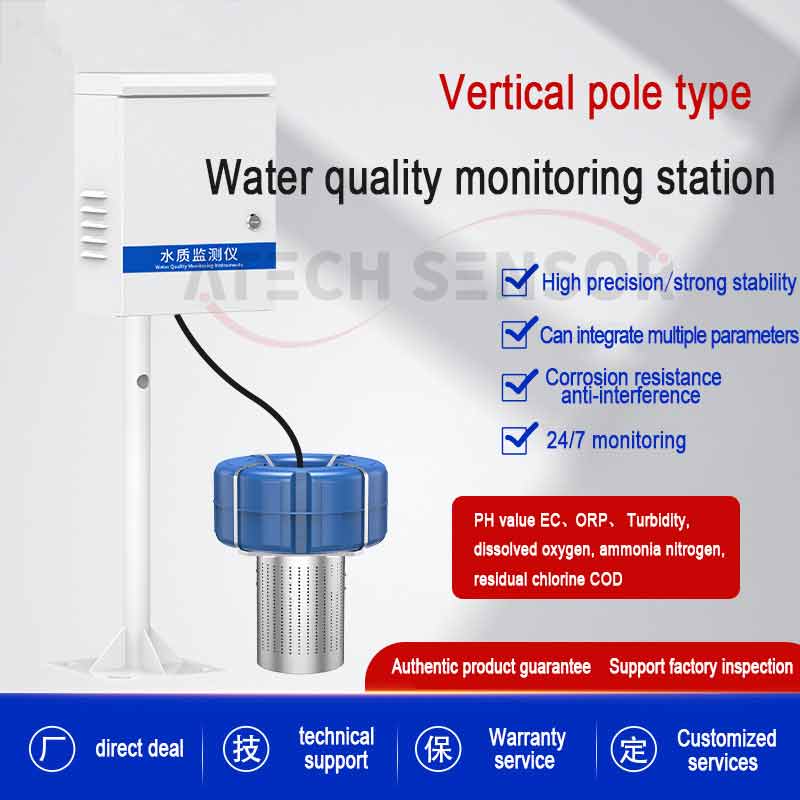

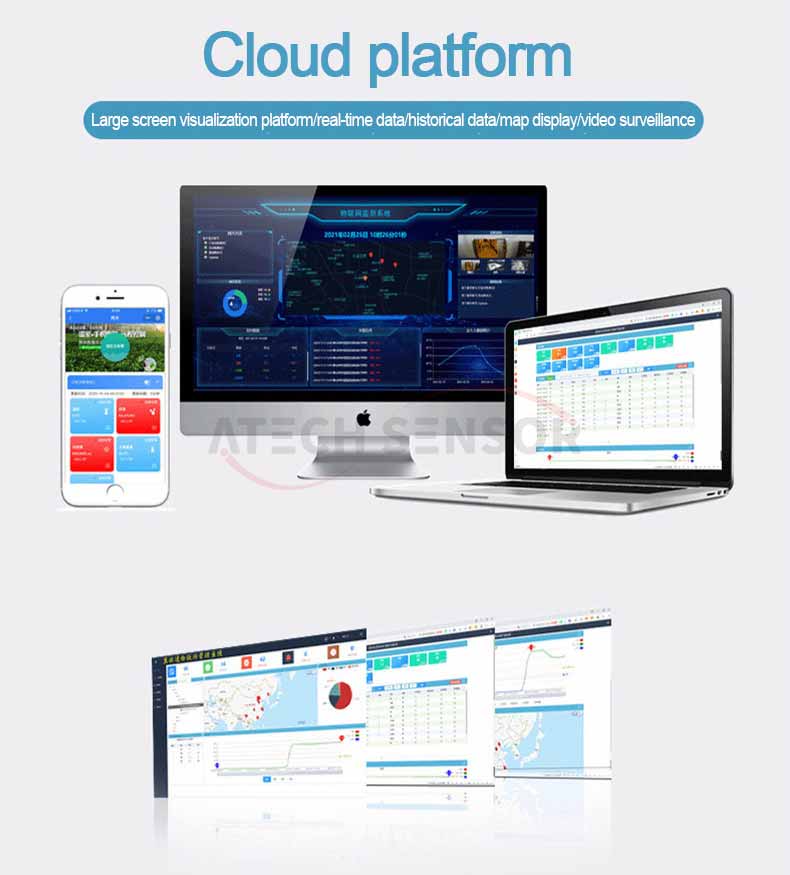

The pole-type water quality monitoring station is also called a small water quality monitoring station or a pole-type micro water quality monitoring station. The pole-type water quality monitoring station is a pole-type comprehensive monitoring station. The water quality monitoring equipment is installed on the pole. Through the construction of the Internet of Things platform, remote monitoring and monitoring of water quality is realized. The pole-type water quality monitoring station takes the water quality sensor as the core. By monitoring and analyzing various water quality parameters and transmitting the collected data to the platform end, the real-time data can be remotely viewed and the equipment can be remotely managed. At the same time, the water quality change trend can be effectively alarmed and intelligently processed. It can also express the comprehensive index of water quality based on the correlation and combination between real-time water quality parameters, providing customers with a large amount of objective, detailed and effective data, which is of practical significance for solving water pollution problems.
Product Features
●Low-power collector: static power consumption is less than 50uA
●GPRS networking as standard, support for extended Bluetooth, wired transmission
●Support modbus485 sensor expansion
●Solar charging management MPPT automatic power point tracking
●1.5-meter carbon steel bracket
●SMS alarm, send SMS to the designated mobile phone after exceeding the limit
●ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66
●No need for wiring, station building, preparation of chemicals, personnel post-maintenance and other additional processes, compared with the national standard water quality monitoring station, it is more convenient to use and install, and the observation data is more intuitive
●The system can integrate integrated meteorological environment monitoring data
Product Specification

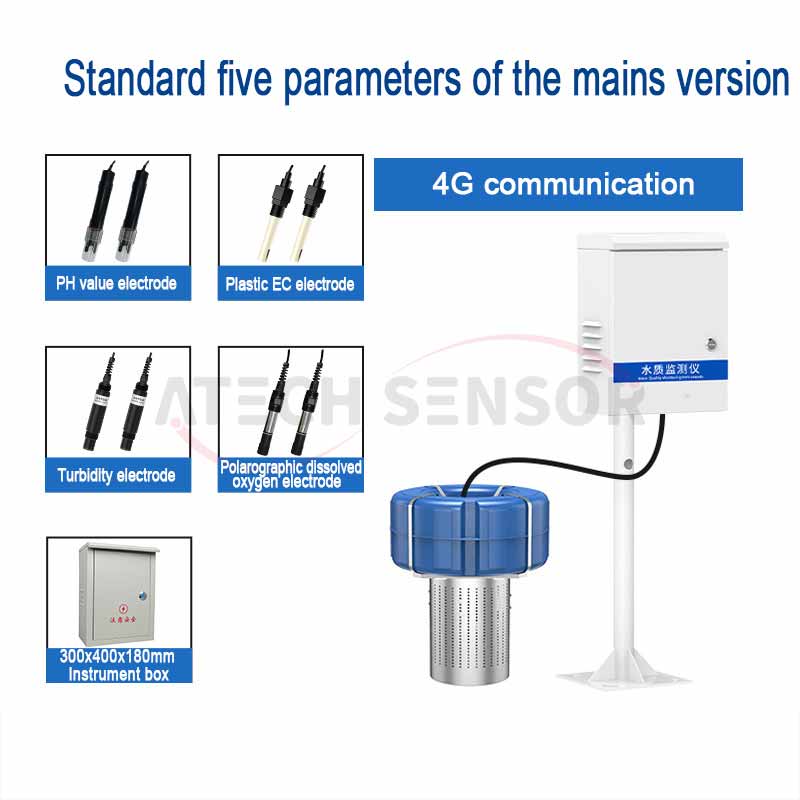

| Monitoring Project | pH, conductivity, dissolved oxygen, turbidity, temperature |
| Installation method | Post-fixed or wall-mounted |
| Display | 3.5-inch color LCD touch screen |
| Water intake device | Flow ≥ 0.5L/min, head 3m, suction head 5m self-priming pump |
| Data collection | Single chip microcomputer collection |
| Measurement interval | Continuous and timed optional, 2h timed mode |
| Data Transfer | GSM/GPRS, expandable DTU module (wireless data upload) |
| Pipeline working pressure | <1MPa |
| Control Module | 12VDC, power consumption <1W, timing and delay output |
| Power supply mode | DC12V30AH (lithium battery) power supply |
| Usage Environment | Ambient temperature: 5℃~45℃ Ambient humidity: Relative humidity not more than 70% |
| Atmospheric pressure | 86~106kPa |
Product Dimensions
Product Features
●Low-power collector: static power consumption is less than 50uA
●GPRS networking as standard, support for extended Bluetooth, wired transmission
●Support modbus485 sensor expansion
●Solar charging management MPPT automatic power point tracking
●1.5-meter carbon steel bracket
●SMS alarm, send SMS to the designated mobile phone after exceeding the limit
●ABS material protective box, corrosion-resistant, anti-oxidation, waterproof grade IP66
●No need for wiring, station building, preparation of chemicals, personnel post-maintenance and other additional processes, compared with the national standard water quality monitoring station, it is more convenient to use and install, and the observation data is more intuitive
●The system can integrate integrated meteorological environment monitoring data
Product Dimensions
Product Specification
| Monitoring Project | pH, conductivity, dissolved oxygen, turbidity, temperature |
| Installation method | Post-fixed or wall-mounted |
| Display | 3.5-inch color LCD touch screen |
| Water intake device | Flow ≥ 0.5L/min, head 3m, suction head 5m self-priming pump |
| Data collection | Single chip microcomputer collection |
| Measurement interval | Continuous and timed optional, 2h timed mode |
| Data Transfer | GSM/GPRS, expandable DTU module (wireless data upload) |
| Pipeline working pressure | <1MPa |
| Control Module | 12VDC, power consumption <1W, timing and delay output |
| Power supply mode | DC12V30AH (lithium battery) power supply |
| Usage Environment | Ambient temperature: 5℃~45℃ Ambient humidity: Relative humidity not more than 70% |
| Atmospheric pressure | 86~106kPa |
